2012 Suzuki AN650AL2 Seat Diagram

← All diagrams

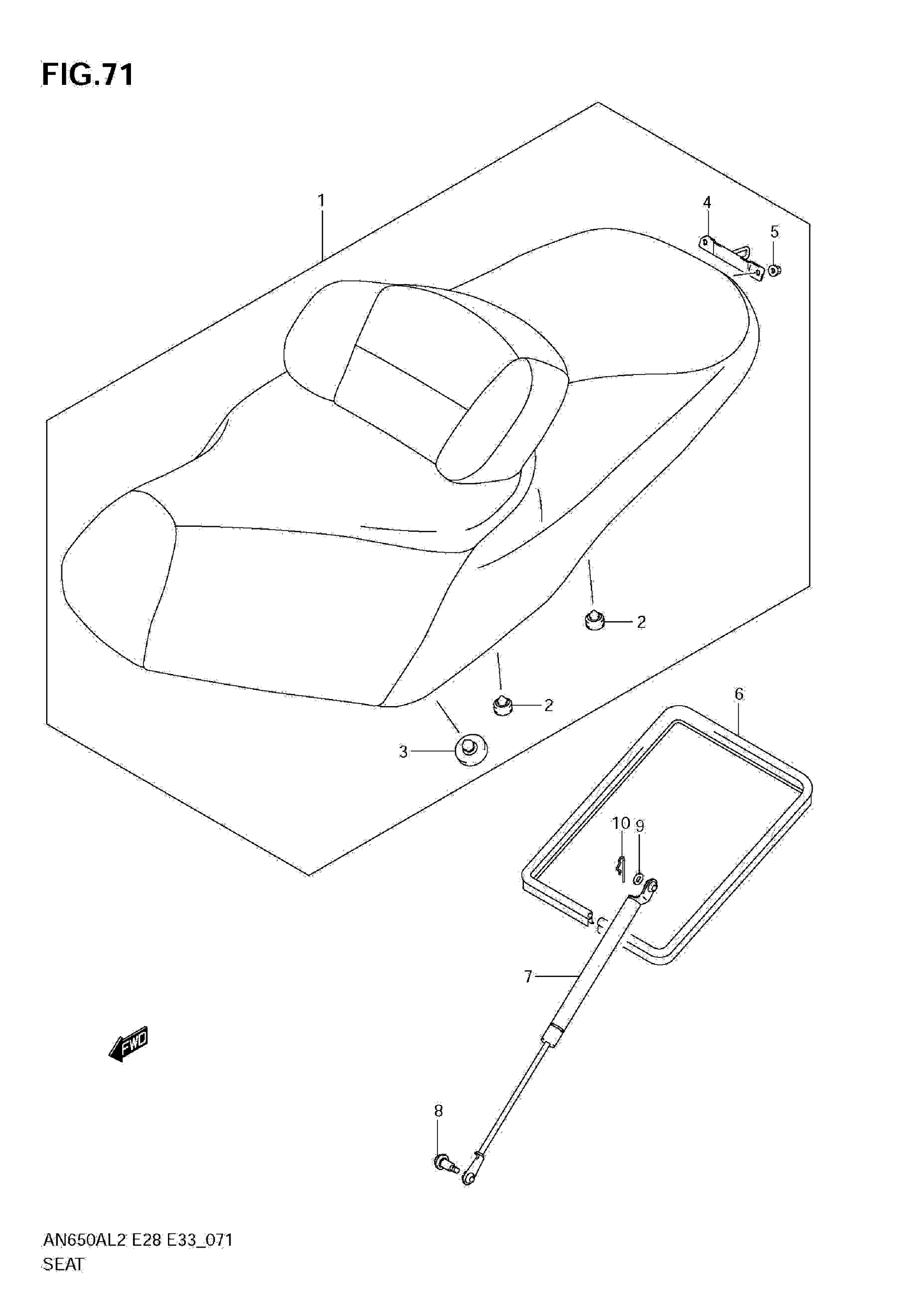

Find the part on the Seat diagram for your 2012 Suzuki AN650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN650AL2 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK)

45100-10G33-BYA

1
Out of stock

2

CUSHION (11.5X22X20)

09321-10002

3
Out of stock

3

CUSHION

09321-12001

2
Out of stock

4

STRIKER, SEAT LOCK

45210-10G00

1
Out of stock

5

NUT

08319-3106A

2
Out of stock

6

MOLDING, SEAT

45211-10G10

1
Out of stock

7

DAMPER ASSY,SEA This part replaces 45270-10G00.

45270-10G01

1
Out of stock

8

BOLT (6X20.6)

09111-06097

1
Out of stock

9

WASHER

08322-0108B

1
Out of stock

10

PIN

09385-08003

1
Out of stock
