2011 Suzuki AN650AL1 Wind Screen Diagram

← All diagrams

Find the part on the Wind Screen diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

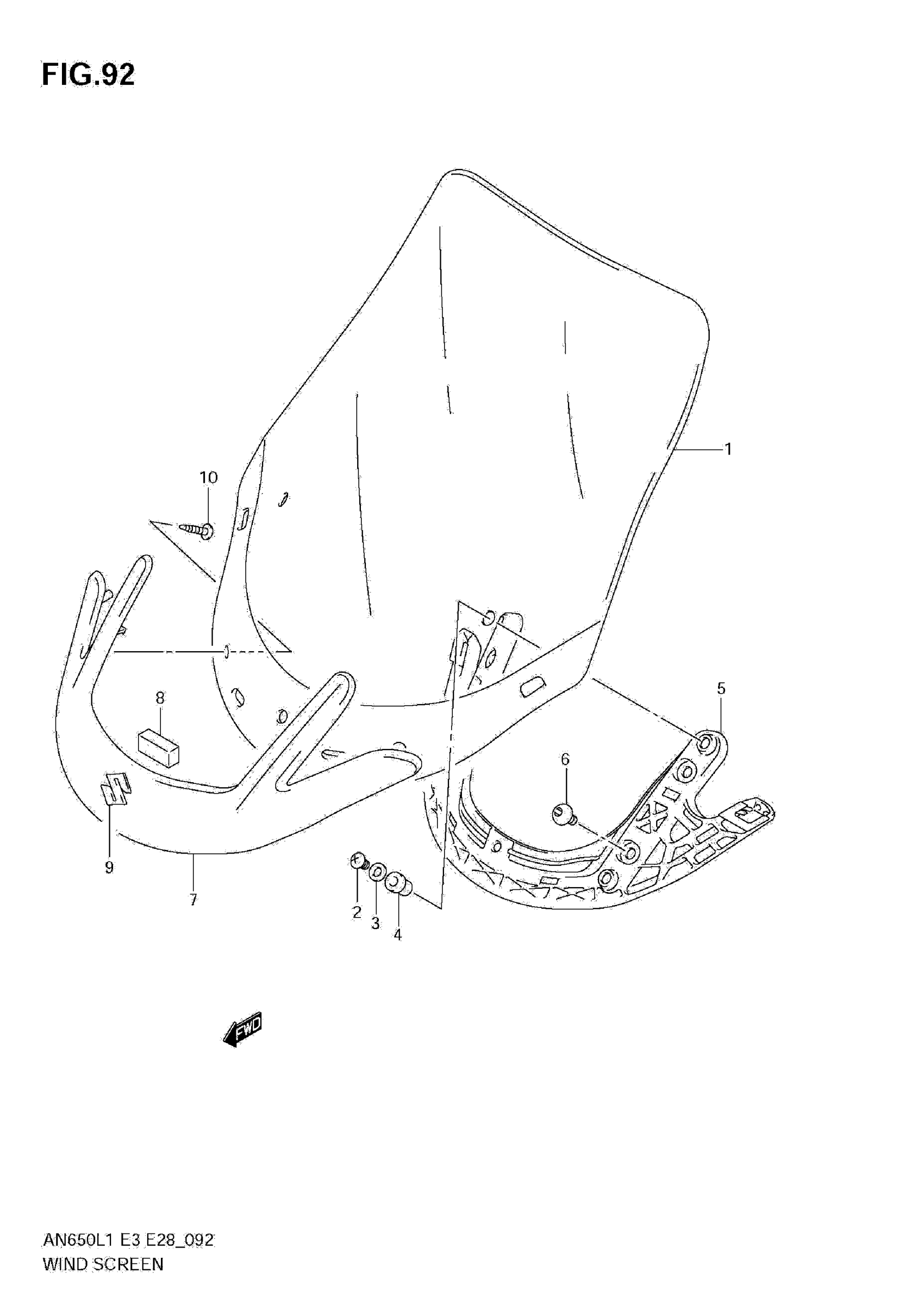

2011 Suzuki AN650AL1 Wind Screen Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSCREEN

94611-10G01

1
Out of stock

2

SCREW

02142-0520B

4
Out of stock

3

WASHER

08322-0105B

4
Out of stock

4

NUT

09159-05045

4
Out of stock

5

BRACE

94620-10G00

1
Out of stock

6

SCREW (6X20)

09139-06126

4
Out of stock

7

COVER

94640-10G20

1
Out of stock

8

CUSHION

94643-10G01

1
Out of stock

9

EMBLEM

68641-14G00

1
Out of stock

10

SCREW (5X16)

09132-05053

2
Out of stock
