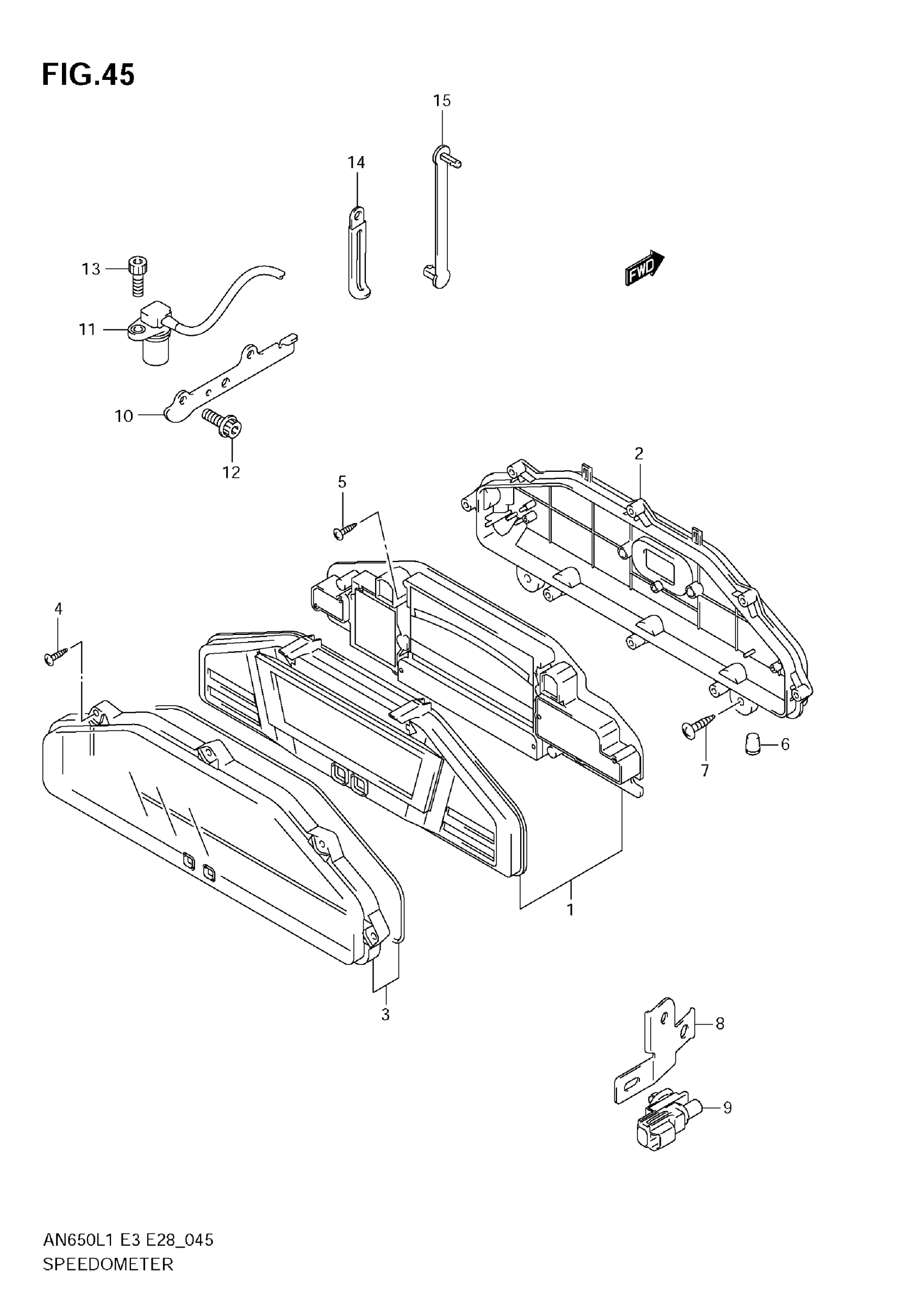

Suzuki AN650AL1 (2011) SPEEDOMETER (AN650 L1 E3) Diagram

#

Description
Price

1

SPEEDOMETER

34120-19HJ0

Unavailable

2

LOWER CASE

34111-19HJ0

Unavailable

3

GLASS ASSY

34150-19HK0

Unavailable

4

SCREW (3X16)

34383-35F00

$3.04

5

SCREW (4X12)

34149-31F10

$4.62

6

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.42

7

SCREW

03541-0520B

$2.87

8

BRACKET, SNSR AMBIENT AIR TEMP

34898-10G00

Unavailable

9

SENSOR, AMBIENT AIR TEMP

95643-58J00

$57.00

10

GUIDE, SENSOR LEAD

34938-10G00

Unavailable

11

SENSOR,SPEED This part replaces 34990-10G30.

34990-10G31

$150.77

12

BOLT, SENSOR GUIDE

07120-0612B

$2.80

13

BOLT, SPEED SENSOR

07130-0616B

$2.38

14

09404-06429

09404-06429

$1.82

15

CLAMP (L:63)

36651-48E00

$3.67
