2011 Suzuki AN650AL1 Shaft Drive Diagram

← All diagrams

Find the part on the Shaft Drive diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

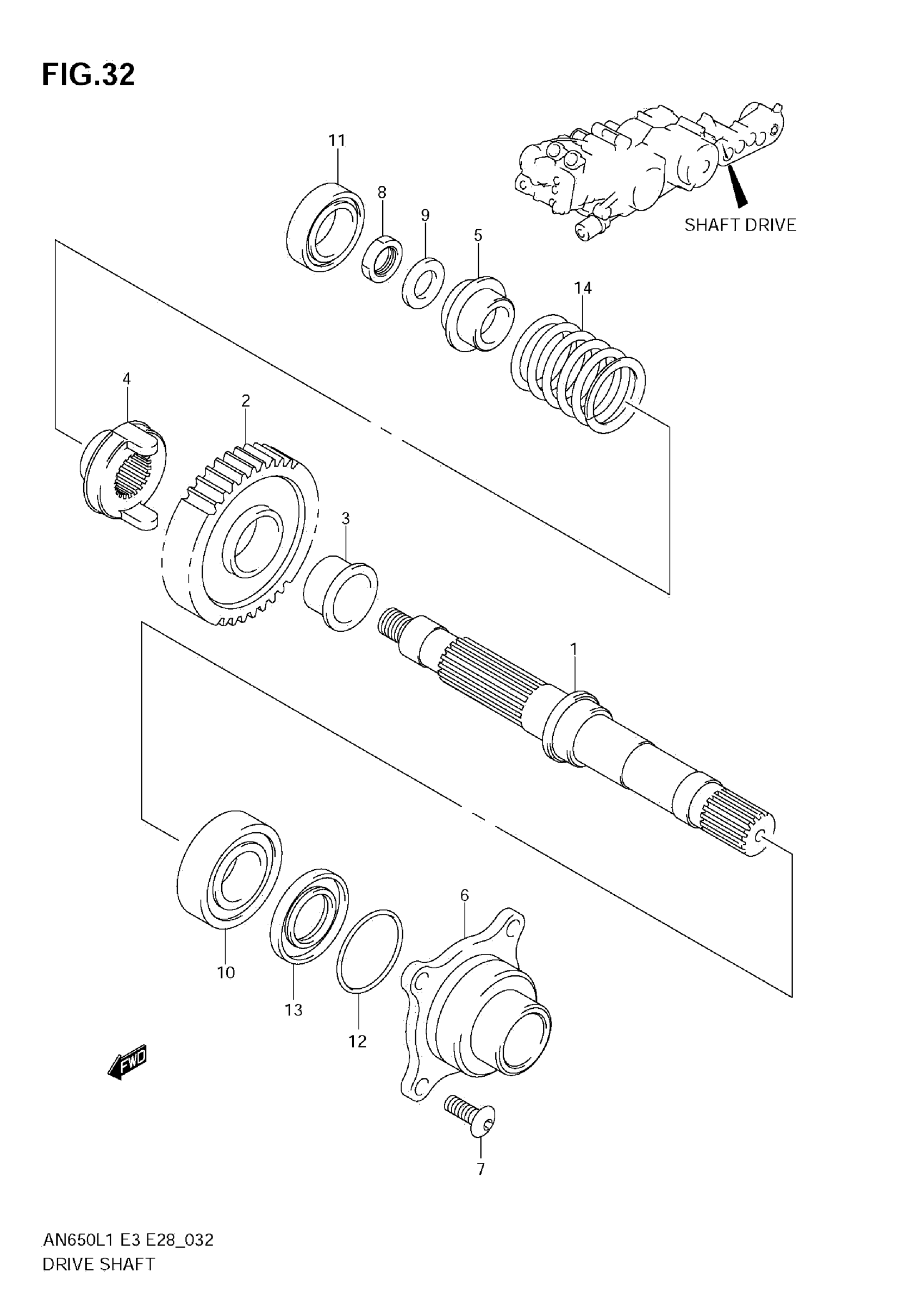

2011 Suzuki AN650AL1 Shaft Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE

24131-10G00

1
Out of stock

2

GEAR, FINAL DRIVEN | NT:40

24371-10G00

1
Out of stock

3

BUSH, FINAL DRIVEN GEAR

24632-10G00

1
Out of stock

4

DOG, OUTPUT CAM This part replaces 24922-10G00.

24922-26J00

1
Out of stock

5

STOPPER, CAM SPRING

24923-10G00

1
Out of stock

6

HOUSING, OIL SEAL

24943-10G00

1
Out of stock

7

BOLT (8X20)

09106-08161

4
Out of stock

8

NUT | RH This part replaces 09140-16001.

09140-16005

1
Out of stock

9

WASHER (16X29X4)

09160-16029

1

$6.90

In stock

10

BEARING (25X52X13) | LH

09262-25136

1
Out of stock

11

BEARING (30X55X13) | RH

09262-30113

1
Out of stock

12

O RING (D:2.4,ID:44.7)

09280-45004

1
Out of stock

13

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

14

SPRING

09440-45004

1
Out of stock
