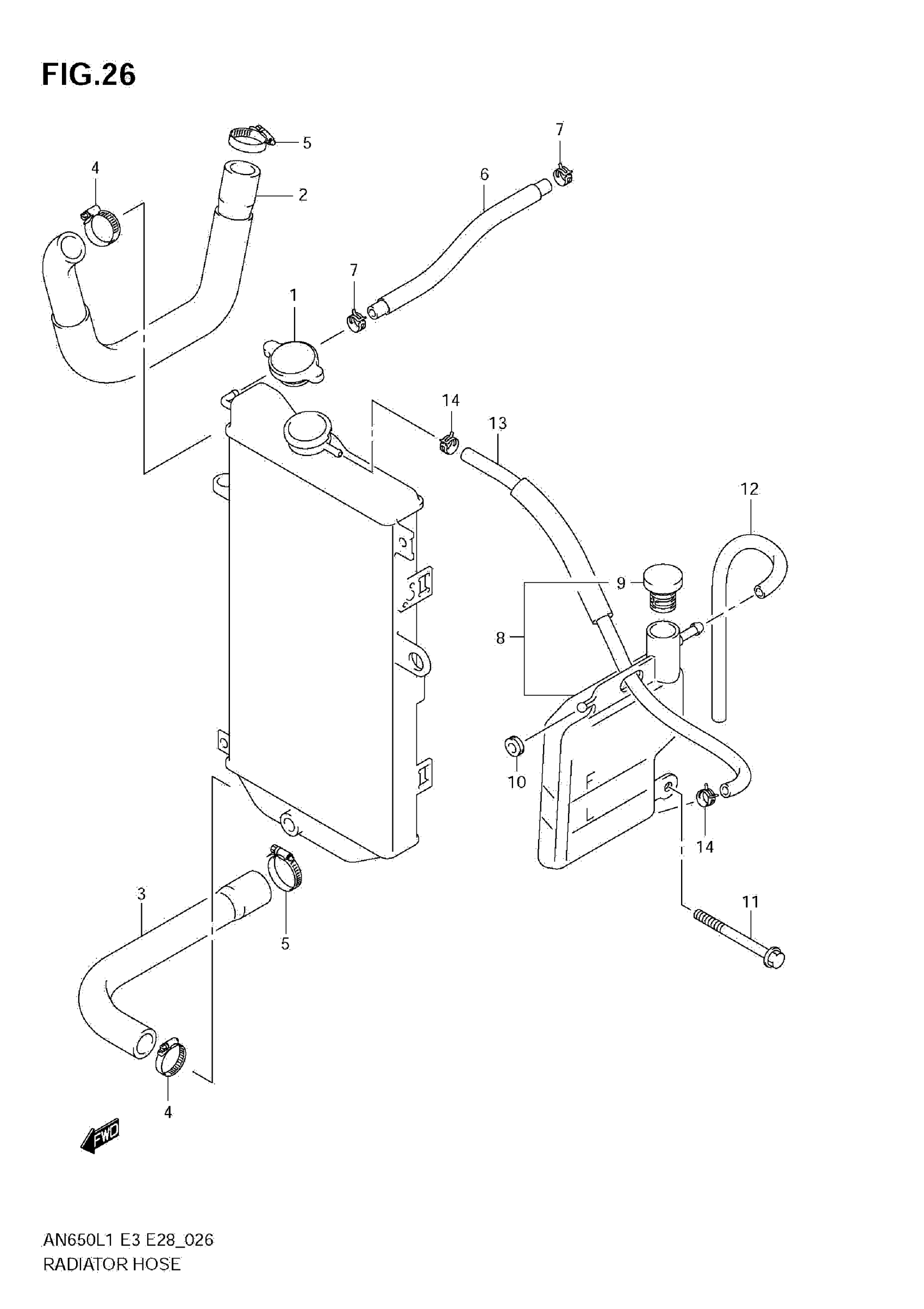

Suzuki AN650AL1 (2011) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$40.65

2

HOSE, RADIATOR INLET

17851-10G00

$47.90

3

HOSE, RADIATOR OUTLET

17852-10G00

$26.67

4

CLAMP

09402-32512

$13.97

5

CLAMP

09402-38512

$11.11

6

HOSE, WATER AIR VENT

17857-10G00

$18.93

7

CLIP (ID:10.5,H:8)

09401-10409

$2.37

8

TANK ASSY, RESERVOIR

17910-10G00

$72.12

9

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

10

CUSHION

09320-06504

$4.61

11

BOLT (6X16)

09116-06168

$2.57

12

HOSE, OVER FLOW

17981-19F00

$16.58

13

HOSE,RESERVOIR TANK INLET This part replaces 17981-10G00.

17981-10G01

$14.30

14

CLIP

09401-08411

$1.82
