2011 Suzuki AN650AL1 Muffler Diagram

← All diagrams

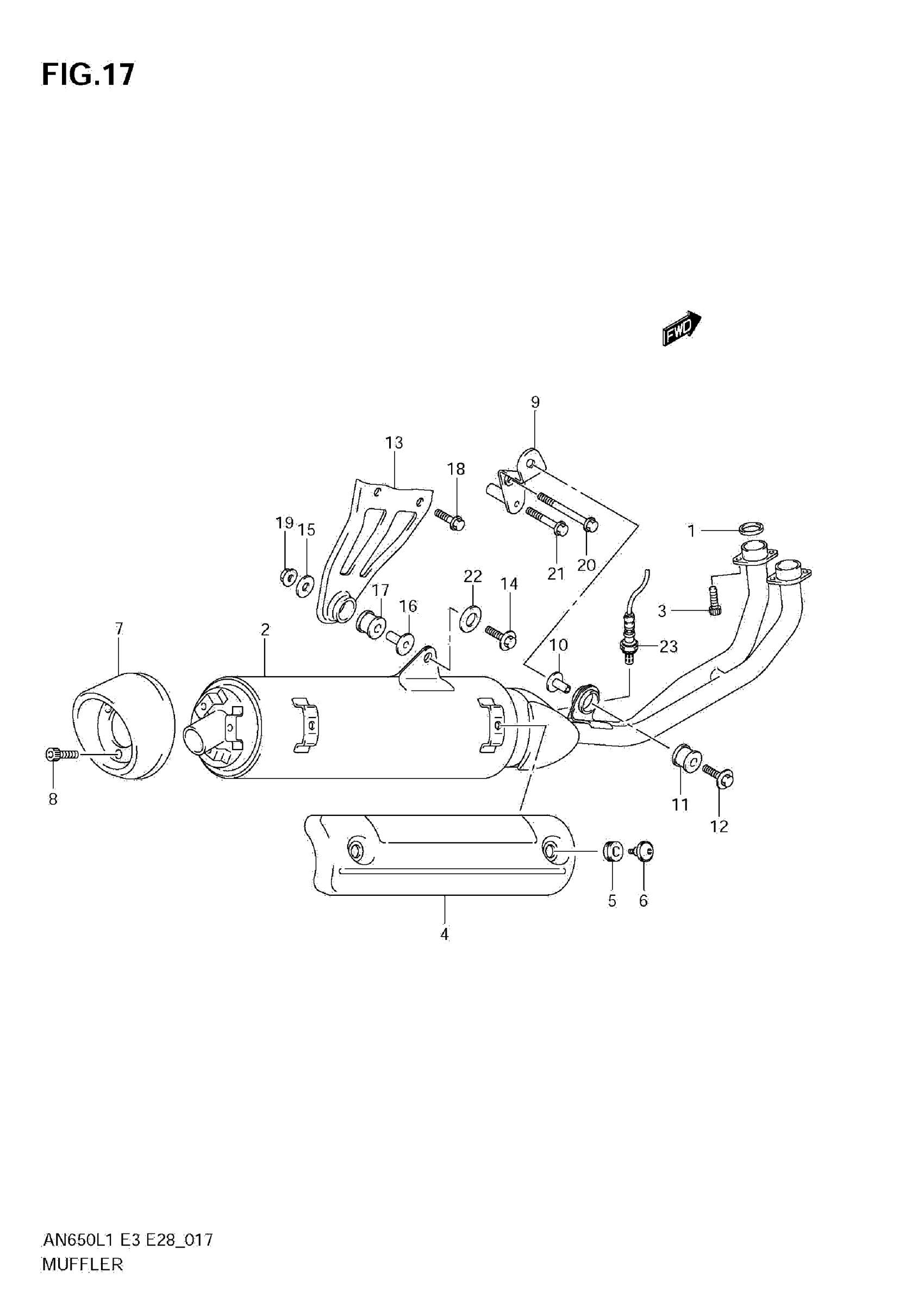

Find the part on the Muffler diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST PIPE

14181-22D01

2
Out of stock

2

MUFFLER

14305-10GG0

1
Out of stock

3

BOLT (8X25)

09106-08165

4

$3.95

In stock

4

COVER, MUFFLER

14780-10G00

1

$143.32

In stock

5

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

6

SCREW (6X12)

09139-06128

2
Out of stock

7

COVER, MUFFLER REAR

14791-10G00

1

$162.90

In stock

8

BOLT (6X15)

09106-06078

3

$3.67

In stock

9

BRACKET, FRONT

14410-10G00

1
Out of stock

10

SPACER (8.6X12X27.1)

09180-08156

1
Out of stock

11

CUSHION

09320-12049

1
Out of stock

12

BOLT (8X45)

09116-08106

1
Out of stock

13

BRACKET, REAR

14470-10G10

1

$64.72

In stock

14

BOLT (8X45)

09106-08164

1

$6.95

In stock

15

WASHER (8.5X33X1.5)

09160-08146

1
Out of stock

16

SPACER (8.6X12X27.1)

09180-08156

1
Out of stock

17

CUSHION

09320-12049

1
Out of stock

18

BOLT

01550-0820B

2

$2.92

In stock

19

NUT

08361-2508A

1
Out of stock

20

BOLT (10X115)

09103-10063

1

$9.50

In stock

21

BOLT

01550-0880B

1
Out of stock

22

WASHER (8.5X28X1.5)

09160-08142

1

$2.92

In stock

23

SENSOR, OXYGEN

18213-10G11

1

$448.86

In stock
