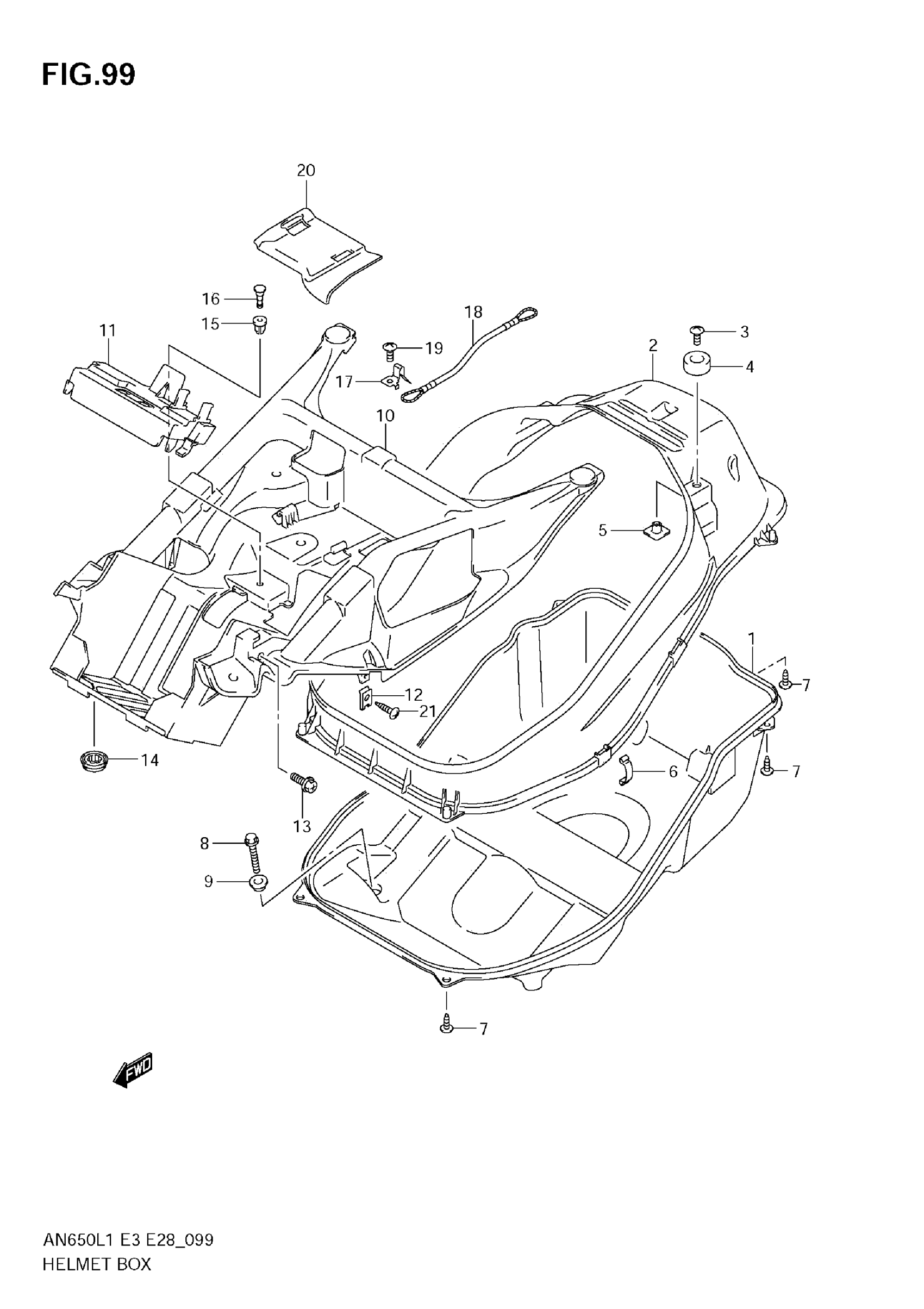

Suzuki AN650AL1 (2011) HELMET BOX Diagram

#

Description
Price

1

BOX, HELMET LOWER

92211-10G10

$397.75

2

BOX, HELMET UPPER

92221-10G10

Unavailable

3

SCREW (6X12)

09125-06069

$2.40

4

CUSHION, UPPER

45149-04A00

$3.38

5

NUT, UPPER

92222-10G01

$7.30

6

CLAMP,HELMET BOX

92214-14G00

$4.37

7

SCREW

03541-0516A

$1.37

8

BOLT

01547-0640B

$2.74

9

WASHER

09169-06073

$3.08

10

COVER, BOX FRONT NO.1 (GRAY)

92212-10G00-Y0J

Unavailable

11

COVER, BOX FRONT NO.2

92213-10G01

$31.90

12

NUT

09148-05038

$1.97

13

BOLT

09111-06107

$2.66

14

CUSHION

09320-09046

$8.50

15

GROMMET

09409-08329

$2.54

16

PLUNGER

09409-08330

$2.56

17

STOPPER, HELMET HOLDER

95723-10G00

Unavailable

18

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

$29.47

19

SCREW

02142-0612B

$1.89

20

COVER, HELMET BOX

92215-10G00

Unavailable

21

SCREW (5X16)

09132-05053

$2.26
