2011 Suzuki AN650AL1 AIR Cleaner Diagram

← All diagrams

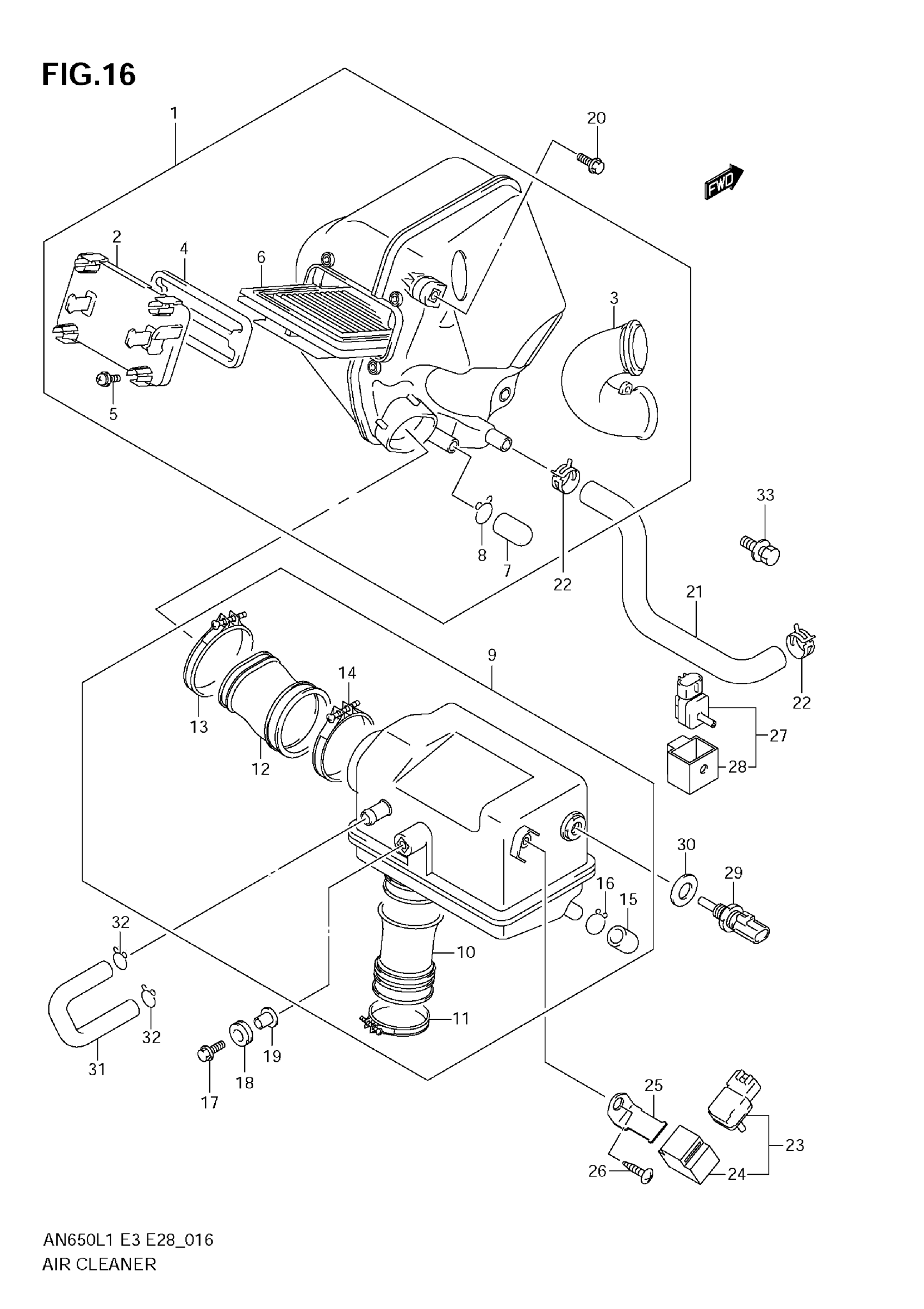

Find the part on the AIR Cleaner diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR This part replaces 13701-10G00.

13701-10G01

1
Out of stock

2

CAP, AIR CLEANER

13741-10G00

1
Out of stock

3

TUBE, INLET

13891-10G00

1
Out of stock

4

GASKET, CAP

13747-10G00

1
Out of stock

5

SCREW

02142-05127

4
Out of stock

6

FILTER

13780-10G00

1
Out of stock

7

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

8

CLIP

09401-14101

1
Out of stock

9

CHAMBER ASSY, AIR

13710-10G00

1
Out of stock

10

TUBE, OUTLET

13881-10G00

2
Out of stock

11

CLAMP

09402-50208

2
Out of stock

12

TUBE,JOINT This part replaces 13739-10G00.

13739-10G01

1
Out of stock

13

CLAMP (CLEANER SIDE)

13826-10G00

1
Out of stock

14

CLAMP (CHAMBER SIDE)

13826-10G10

1
Out of stock

15

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

16

CLIP

09401-14101

1
Out of stock

17

BOLT (6X25)

09116-06150

1
Out of stock

18

CUSHION

09320-10501

1
Out of stock

19

SPACER (6.5X10X11.6)

09180-06319

1
Out of stock

20

BOLT

01550-0612B

1
Out of stock

21

TUBE, BREATHER

13851-10G00

1
Out of stock

22

CLIP

09401-18406

2
Out of stock

23

SENSOR, BOOST

15630-29G20

1
Out of stock

24

COVER

15625-29G10

1
Out of stock

25

BRACKET

15629-10G00

1
Out of stock

26

SCREW

03541-0512B

1
Out of stock

27

SENSOR, BOOST

15630-29G20

1
Out of stock

28

COVER

15625-29G10

1
Out of stock

29

SENSOR, AIR TEMP

13650-61B00

1
Out of stock

30

GASKET (12X17X1)

09168-12017

1
Out of stock

31

HOSE, STARTER AIR

13697-10G00

1
Out of stock

32

CLIP

09401-15101

2
Out of stock

33

BOLT (6X16)

09116-06130

1
Out of stock
