2009 Suzuki AN650 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

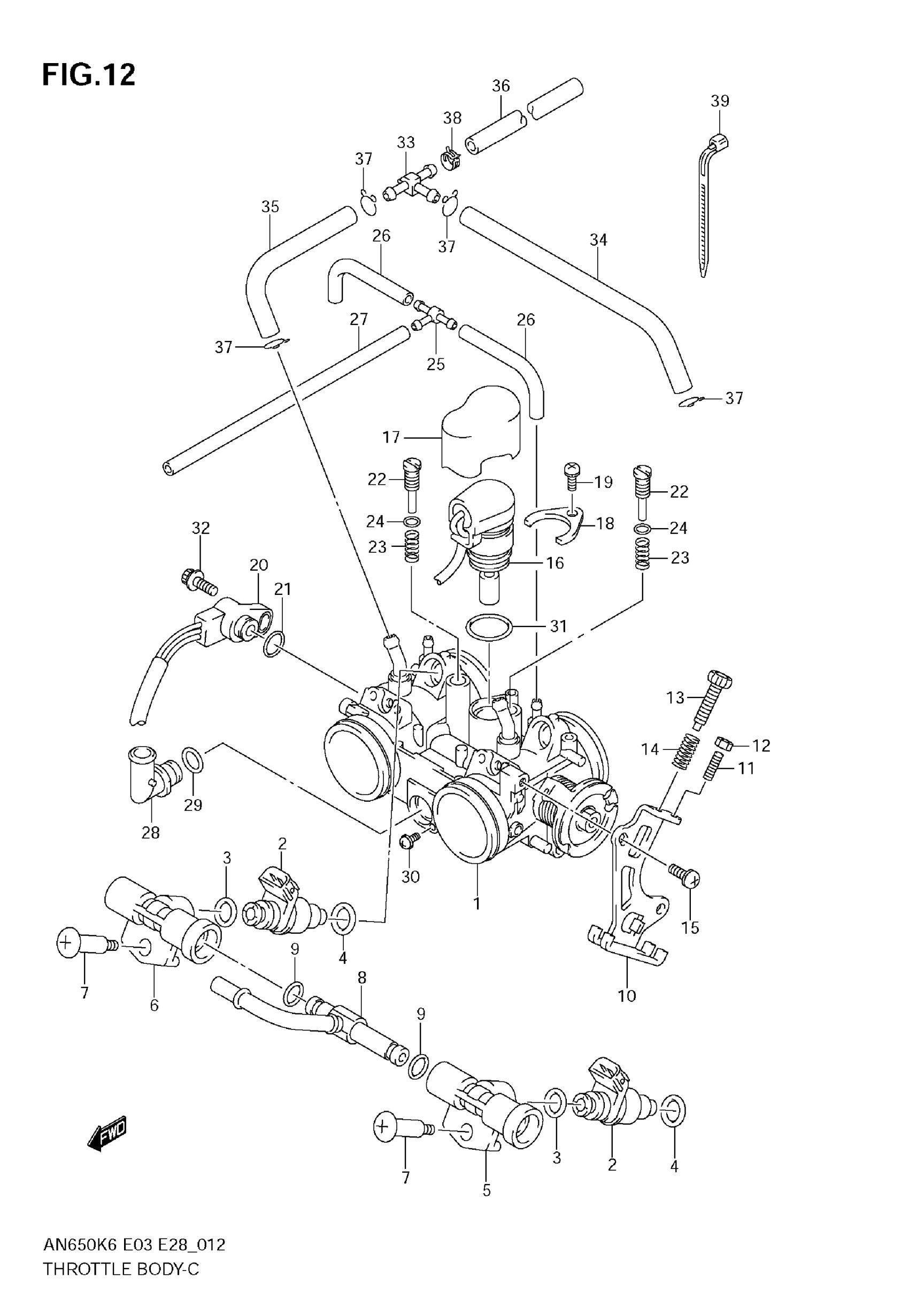

2009 Suzuki AN650 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY | E3,E28

13401-10G00

1
Out of stock

1

THROTTLE BODY | E33

13401-10G10

1
Out of stock

2

INJECTOR ASSY

15710-10G00

2
Out of stock

3

O-RING

15721-10G00

2
Out of stock

4

O RING

15722-10G00

2
Out of stock

5

JOINT

13471-10G00

1
Out of stock

6

JOINT

13471-10G10

1
Out of stock

7

SCREW

13601-35F00

2
Out of stock

8

FUEL PIPE

13473-10G00

1
Out of stock

9

.O-RING

15721-24F00

2
Out of stock

10

PLATE

13565-10G00

1
Out of stock

11

STOP SCREW

13267-10G00

1
Out of stock

12

NUT

13661-10G00

1
Out of stock

13

STOP SCREW

13267-35F00

1
Out of stock

14

SPRING

13271-24F00

1
Out of stock

15

SCREW

13601-10G00

2
Out of stock

16

ELEMENT ASSY,TH This part replaces 13420-10G00.

13420-10G01

1
Out of stock

17

COVER

13431-15F00

1
Out of stock

18

PLATE

13428-06F30

1
Out of stock

19

SCREW This part replaces 02112-34083.

02112-3408A

1
Out of stock

20

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

1
Out of stock

21

O RING

13575-40F00

1
Out of stock

22

ADJUST SCREW

13279-10G00

2
Out of stock

23

SPRING

13271-10G00

2
Out of stock

24

O RING

13295-10G00

2
Out of stock

25

JOINT

13471-24F30

1
Out of stock

26

HOSE (3X7X65)

13683-10G00

2
Out of stock

27

HOSE (3X7X220)

13683-10G10

1
Out of stock

28

JOINT

13455-10G00

1
Out of stock

29

O RING

13278-10G10

1
Out of stock

30

SCREW

13602-10G00

1
Out of stock

31

O RING

13278-10G00

1
Out of stock

32

BOLT

13613-10G00

1
Out of stock

33

JOINT | E33

13685-36E50

1
Out of stock

34

HOSE | E33

13698-10G00

1
Out of stock

35

HOSE | E33

13698-10G10

1
Out of stock

36

HOSE | E33

13698-10G20

1
Out of stock

37

CLIP | E33

13693-24F00

5
Out of stock

38

CLIP (ID:9.4,H:8) | E33

09401-09403

1
Out of stock

39

CLAMP | E33

09407-18402

1
Out of stock
