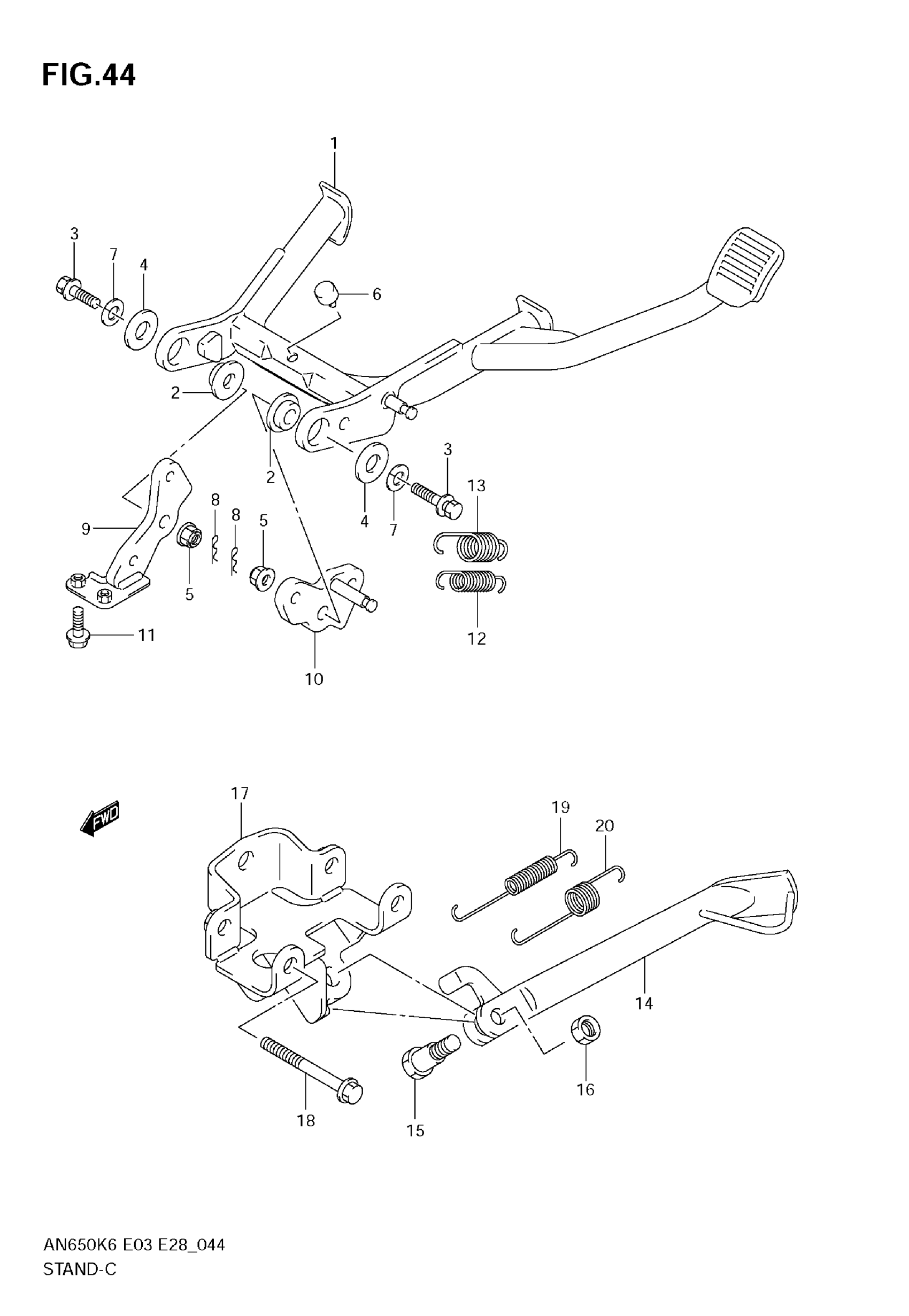

Suzuki AN650 (2009) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-10G14

$326.10

2

SPACER

42253-10G01

$12.60

3

BOLT

09101-10036

$5.75

4

WASHER

09160-10126

$2.13

5

NUT, PROP STAND

42321-03FK0

$4.73

6

CUSHION

09321-10036

$7.20

7

LOCK WASHER

08321-0110B

$3.08

8

CLIP

09385-10005

$1.50

9

BRACKET, CENTER STAND RH

42270-10G40

$48.82

10

BRACKET, CENTER STAND LH

42280-10G01

$39.62

11

BOLT

01550-0820B

$2.80

12

SPRING, INNER

09443-14057

$10.42

13

SPRING, OUTER

09443-22009

$10.42

14

STAND, PROP

42310-10G00

$144.07

15

BOLT

09111-10058

$6.09

16

NUT, PROP STAND

42321-03FK0

$4.73

17

BRACKET, PROP STAND

42330-10G02

Unavailable

18

BOLT

01550-0875B

Unavailable

19

SPRING, INNER

09443-12050

$11.17

20

SPRING, OUTER

09443-21005

$13.63
