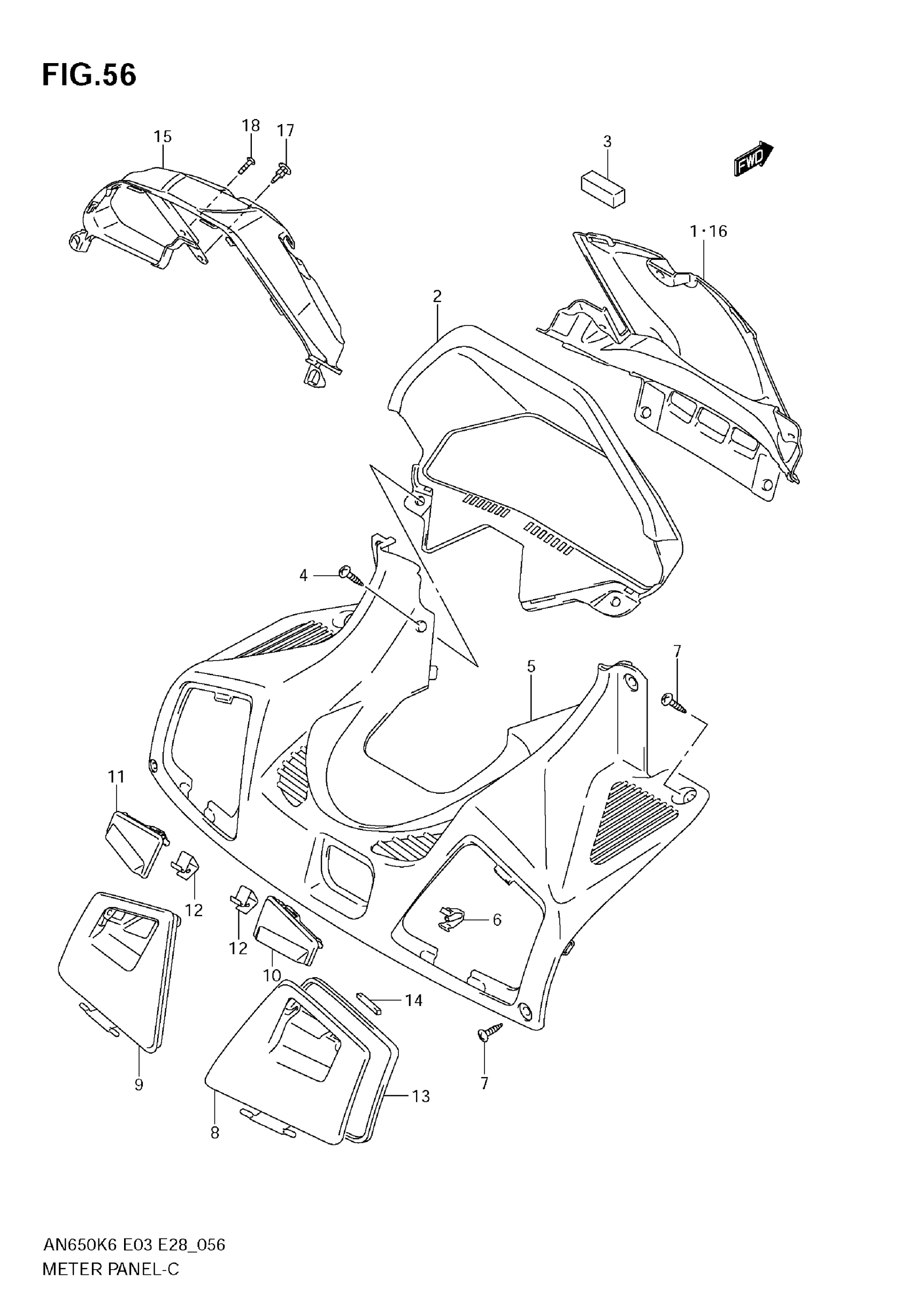

Suzuki AN650 (2009) METER PANEL Diagram

#

Description
Price

1

PANEL, METER FRONT (GRAY) | AN650

94421-10G01-Y0J

$94.17

2

PANEL, METER REAR (GRAY) | Includes Item(s) 3

94420-10G00-Y0J

$76.83

3

CUSHION

94423-10G00

Unavailable

4

SCREW, REAR PANEL

09122-66006

$3.37

5

PANEL, FRONT LOWER (GRAY)

94671-10G00-Y0J

$104.27

5

PANEL, FRONT LOWER (GRAY) | AN650AK9 E28

94671-10G20-Y0J

Unavailable

6

CLIP

09409-08326

$2.45

7

SCREW, LOWER PANEL

09132-05053

$2.26

8

LID, FRONT PANEL RH (GRAY)

92140-10G10-Y0J

$54.50

9

LID, FRONT PANEL LH (GRAY) | Includes Item(s) 10 - 14

92150-10G10-Y0J

$53.48

10

LOCK, PANEL RH (GRAY)

92143-10G10-Y0J

$14.47

11

LOCK, PANEL LH (GRAY)

92153-10G10-Y0J

$13.93

12

SPRING, LID

92144-10G10

$8.88

13

CUSHION

92145-10G00

$7.95

14

CUSHION This part replaces 92146-10G00.

92145-10G00

$7.95

15

PANEL, METER FRONT UPPER | AN650A

94421-10GA0-Y0J

Unavailable

16

PANEL, METER FRONT LOWER | AN650A

94424-10GA0-Y0J

Unavailable

17

CLIP (BLACK) | AN650A

09409-08308-5ES

$1.97

18

SCREW | AN650A

02142-0512B

$1.90
