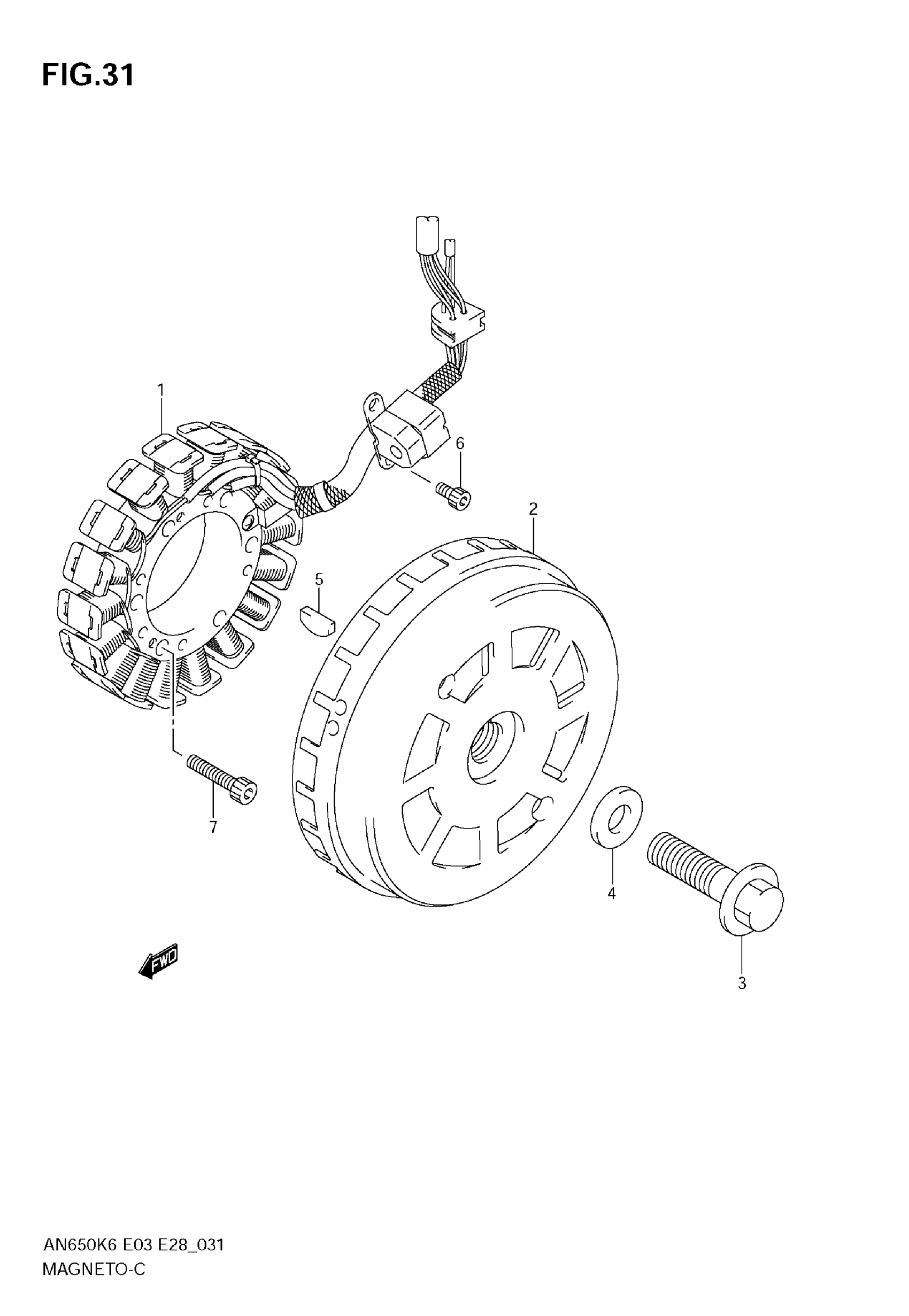

Suzuki AN650 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAG This part replaces 32101-10G00.

32101-10G10

$1,065.28

2

ROTOR ASSY

32102-10G00

Unavailable

3

BOLT, ROTOR

09103-14001

$12.85

4

WASHER, ROTOR (14X29X4)

09160-14021

$7.20

5

KEY

09420-05007

$5.00

6

BOLT, PICK UP

07130-0510B

$2.64

7

BOLT, MAGNETO STATOR

07130-0630B

$3.04
