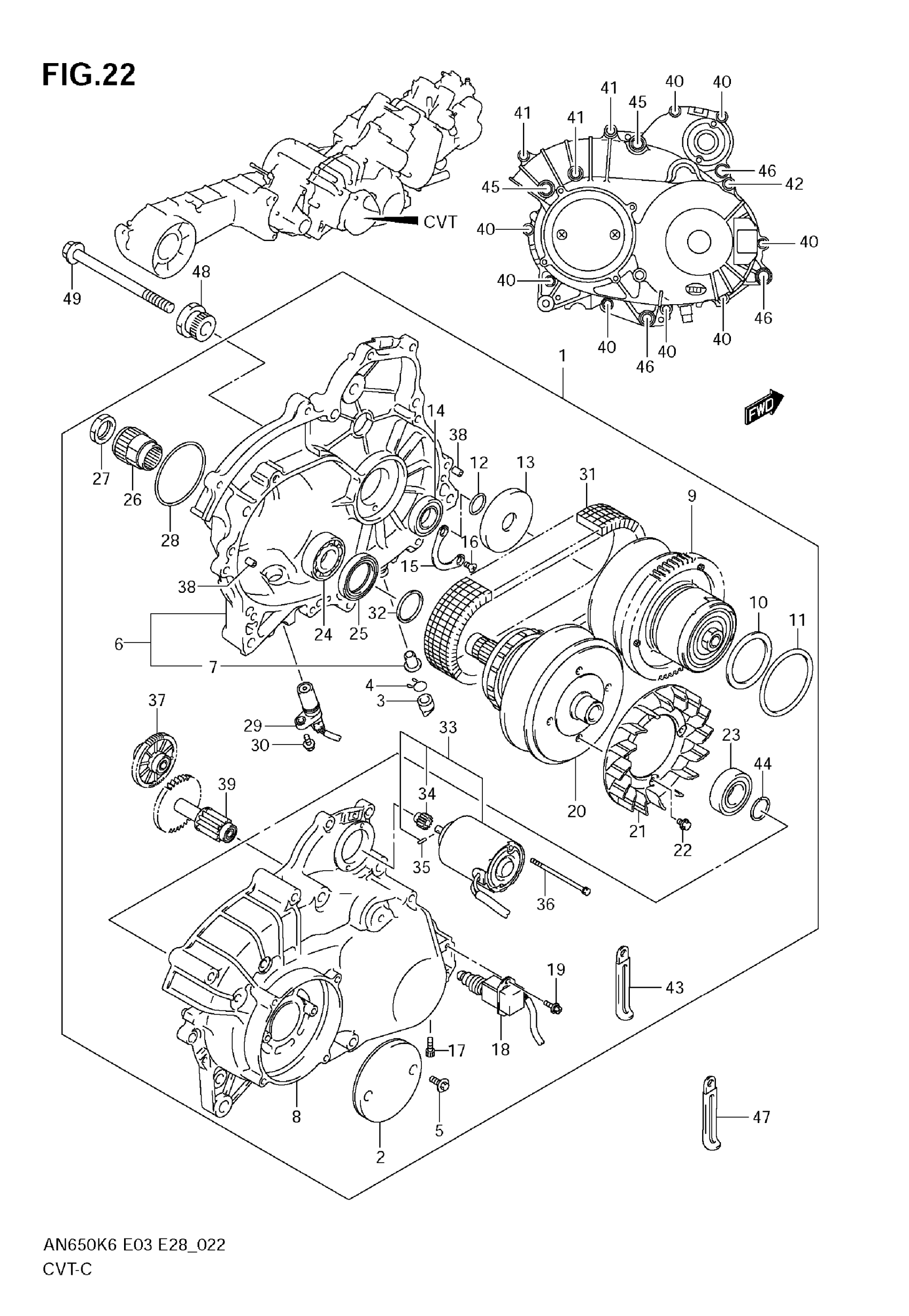

Suzuki AN650 (2009) CVT Diagram

#

Description
Price

1

UNIT SET,CVT | Includes Item(s) 2 - 44 This part replaces 21000-10830.

21000-10834

$5,069.83

2

FILTER, BELT COOLING

11388-10G00

$19.05

3

CAP,DRAIN This part replaces 13872-00110.

13872-00111

$5.07

4

CLIP

09401-13409

$2.13

5

BOLT (6X20)

09116-06182

$2.33

6

CASE, CVT

21910-10G01

Unavailable

7

UNION, CVT DRAIN

09364-12002

Unavailable

8

COVER, CVT

21921-10G00

Unavailable

9

.PULLEY ASSY, PRIMARY This part replaces 21071-10G10.

21070-10811

$1,129.62

10

SHIM SET, PRIMARY PULLEY ADJUST | T:0.12/0.32/0.52/0.72 0.92/1.12/1.32

21746-10G00

$56.40

11

O RING, PRI PULLEY RH

21747-10G00

$15.50

12

O RING, PRI FIXED LH | D:1.20,ID:20.8

09280-21014

$2.80

13

SEAL, PRIMARY PULLEY DUST

21757-10G00

$22.32

14

BEARING, PRI PULLEY LH

21751-10G00

$57.22

15

RETAINER, PRI BEARING LH

21753-10G00

Unavailable

16

SCREW, PULLEY BEARING

21754-10G00

Unavailable

17

BOLT,SHAFT STOP This part replaces 21748-10G00.

21748-10G10

$6.86

18

PPS ASSY This part replaces 26142-78G90.

26142-78G91

$339.28

19

BOLT, POSITION

24833-58E90

Unavailable

20

PULLEY ASSY, SECONDARY

21081-10G00

$1,278.75

21

FAN, SEC FIXED PULLEY

21815-10G00

Unavailable

22

BOLT, FAN PULLEY

21816-10G00

$9.08

23

BEARING, SECONDARY RH

21817-10G00

$54.45

24

BEARING, SECONDARY LH

21851-10G00

$76.43

25

SEAL, SECONDARY PULLEY

21852-10G10

$33.38

26

ADAPTER, SECONDARY FIXED

21855-10G00

Unavailable

27

NUT, SEC ADAPTER

21856-10G00

$22.15

28

O RING, CVT CASE

21916-10G00

$19.23

29

SENSOR ASSY, SEC

21860-10G00

$138.98

30

BOLT, SEC SENSOR

24832-78G90

Unavailable

31

V BELT, DRIVE

27601-10G00

$712.48

32

COLLAR, SEC PULLEY ADPT

21853-10G00

$18.38

33

MOTOR ASSY,CVT This part replaces 21076-10G01.

21076-10G02

$451.40

34

GEAR, ACTR DRIVE

25112-78G90

$12.32

35

PIN, ACTR DRIVE

25113-58E90

$7.67

36

BOLT, MOTOR

24834-58E90

Unavailable

37

GEAR ASSY, ACTUATOR COUNTER

21077-10G00

$96.45

38

PIN, CVT COVER

21925-10G00

Unavailable

39

GEAR ASSY, ACTR IDLER

21078-10G00

$119.32

40

BOLT, CVT COVER (L:30)

21931-10G00

$8.52

41

BOLT, CVT COVER (L:70)

21932-10G00

Unavailable

42

BOLT, CVT COVER (L:90)

21933-10G00

Unavailable

43

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

44

RING SEC PULLEY

21818-10G00

$16.10

45

BOLT, CVT UNIT (L:140)

09103-10119

$10.42

46

BOLT, CVT UNIT (L:110)

09103-10318

$4.74

47

CLAMP (L:45)

09404-06429

$1.82

48

ADAPTER, PRIMARY SHAFT

21282-10G00

$43.95

49

BOLT, PRIMARY SHAFT

09103-12077

$8.68
