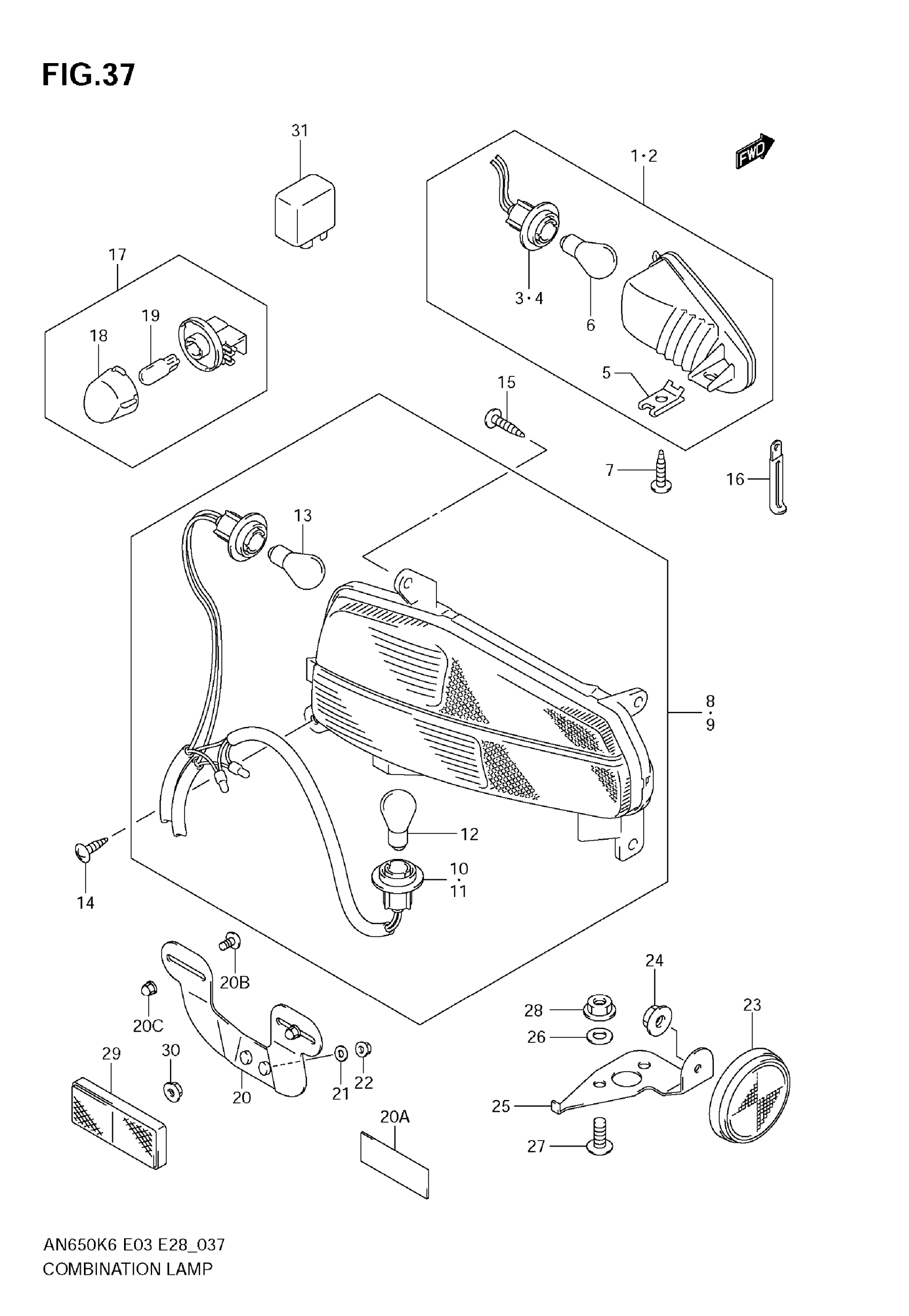

Suzuki AN650 (2009) COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL RH

35601-10G50

$85.32

2

LAMP ASSY, FR TURN SIGNAL LH | Includes Item(s) 3 - 6

35602-10G50

$60.90

3

.SOCKET,R

35618-10G50

$34.12

4

.SOCKET,L

35638-10G50

$32.85

5

NUT

09148-05020

$2.04

6

BULB (12V21W)

09471-12186

$16.18

7

SCREW

03541-0525B

$2.42

8

LAMP ASSY, REAR COMB RH

35603-10G40

$286.88

9

LAMP ASSY, REAR COMB LH | Includes Item(s) 10 - 13

35604-10G40

$276.35

10

CORD ASSY RH

35658-10G40

Unavailable

11

CORD ASSY LH

35678-10G40

Unavailable

12

BULB (12V,21/5W) | FOR TAIL/STOP This part replaces 09471-12083.

09471-12128

$6.26

13

BULB (12V,21W) | FOR TURN

09471-12186

$16.18

14

SCREW, REAR COMB

02142-0612B

$1.89

15

SCREW, REAR COMB

03541-0516B

$1.82

16

CLAMP (L:45)

09404-06429

$1.88

17

LAMP ASSY, LICENSE | Includes Item(s) 18 - 19

35910-14F01

$34.10

18

LENS

35912-14F11

$9.35

19

.BULB (12V5W)

09471-12216

$4.99

20

BRACKET, LICENSE PLATE

35927-10G00

Unavailable

20A

CUSHION (30X80X1)

33652-29F00

$2.91

20B

SCREW

02142-0612B

$1.89

20C

NUT

08313-2006B

$3.10

21

WASHER (6.5X24X1)

09160-06114

$2.09

22

NUT, BRACKET

08316-1006B

$2.57

23

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

24

NUT, REAR SIDE

08316-1005B

$2.58

25

BRACKET, REAR SIDE, RH

35975-10G00

Unavailable

25

BRACKET, REAR SIDE, LH

35976-10G00

Unavailable

26

WASHER (6.5X18X1.6)

09160-06084

$1.82

27

SCREW

02142-0616B

$1.86

28

NUT

08316-1006B

$2.57

29

REFLECTOR ASSY, REAR SIDE

35970-07F01

$19.97

30

NUT

08316-1005B

$2.58

31

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
