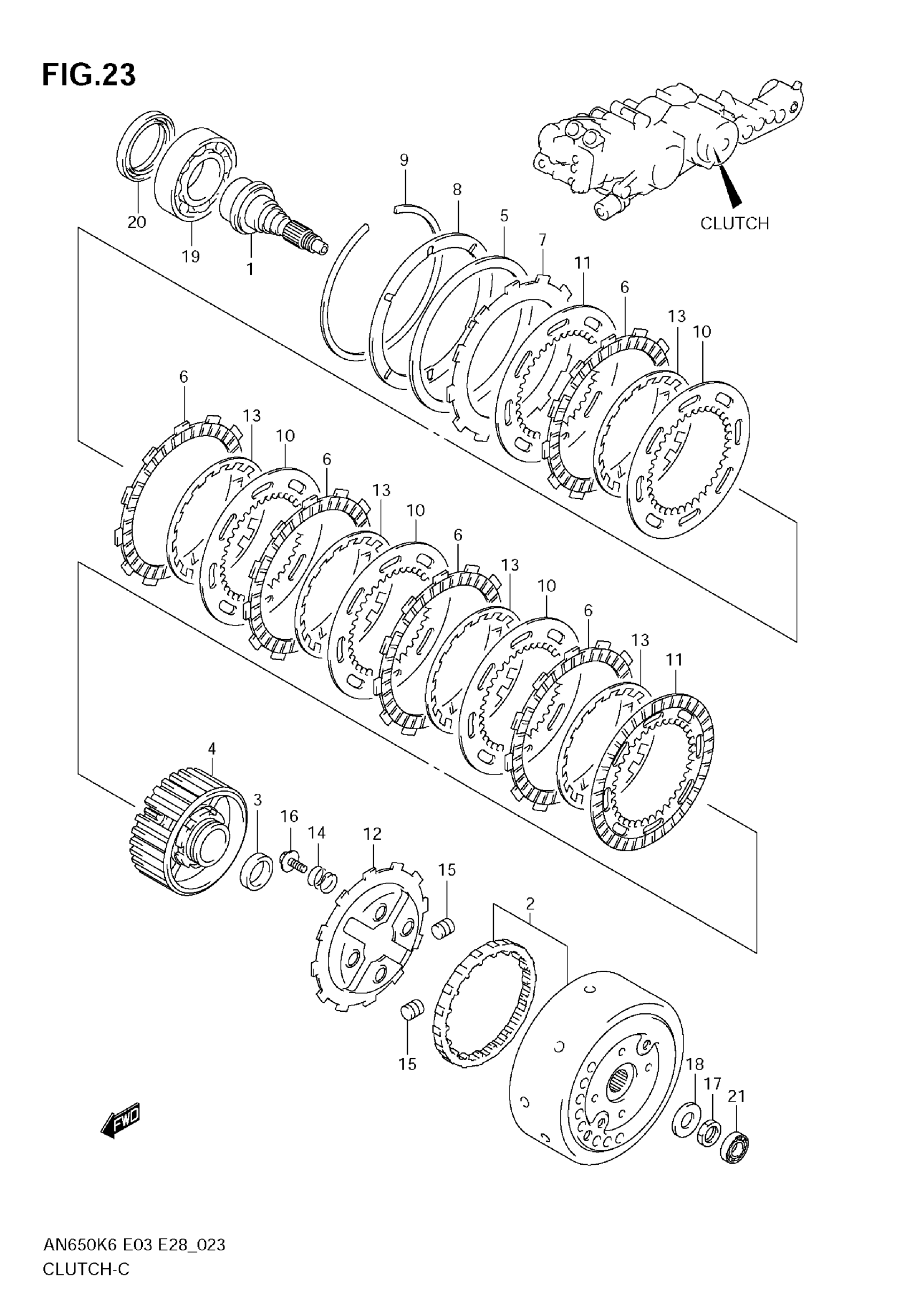

Suzuki AN650 (2009) CLUTCH Diagram

#

Description
Price

1

SHAFT, CLUTCH | NT:42

21421-10G00

Unavailable

2

HOUSING SET, CLUTCH

21221-10830

$372.52

3

SPACER, CLUTCH HOUSING

21222-10G00

Unavailable

4

GEAR SET, HUB CLUTCH | MODEL K6

21321-10811

Unavailable

4

GEAR SET, HUB CLUTCH | MODEL K7/K8/K9

21321-10821

$464.07

5

WASHER, CLUTCH SPRING WAVE

21412-10G00

$57.13

6

PLATE, CLUTCH DRIVE

21441-24F00

$20.97

7

PLATE, CLUTCH DRIVE OUTER

21443-10G00

$22.38

8

SEAT, CLUTCH SPRING

21446-10G00

$23.05

9

CIRCLIP, CLUTCH OUTER

21447-10G00

$10.25

10

PLATE, CLUTCH DRIVEN

21451-10G10

$15.08

11

PLATE, CLUTCH DRIVEN

21452-10G10

$27.62

12

PLATE, CLUTCH INNER

21465-10G00

$42.87

13

WASHER, CLUTCH PLATE

21472-10G10

$21.50

14

SPRING, CLUTCH REACTION

21512-10G00

$5.90

15

ROLLER, CLUTCH

21650-10G00

$17.53

16

BOLT, CLUTCH REACTION (5X16)

09116-05020

$2.06

17

NUT, CLUTCH HOUSING

09140-18016

$7.28

18

WASHER, CLUTCH HOUSING | 18X30X2.5

09160-18033

$3.80

19

BEARING, CLUTCH SHAFT RH | 50X72X12

09262-50003

Unavailable

20

SEAL, CLUTCH SHAFT | 50X64X7

09283-50009

$17.77

21

BEARING This part replaces 08123-63010.

08123-6301B

$12.72
