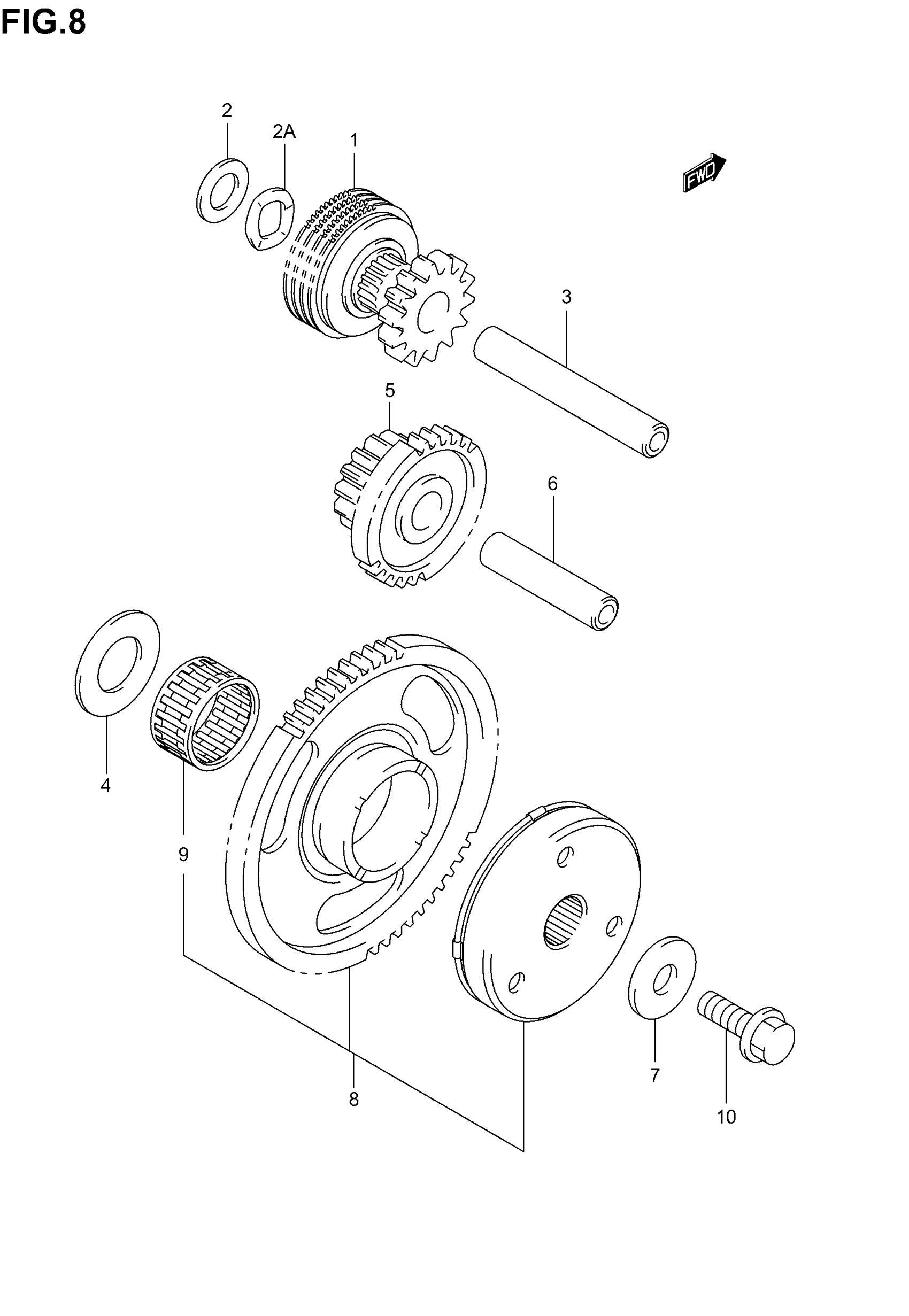

Suzuki AN650 (2005) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE | ?12600-10G00

12600-10G01

Unavailable

2

WASHER, LIMITER ASSY THRUST

09160-13006

Unavailable

2A

WASHER, LIMITER ASSY DAMPER

09164-13008

Unavailable

3

PIN, STARTER IDLE GEAR

09206-13021

Unavailable

4

WASHER, STARTER CLUTCH

08211-20403

$4.09

5

GEAR, STARTER IDLE NO.2

12612-10G00

Unavailable

6

PIN, STARTER IDLE GEAR NO.2

09206-12002

$17.38

7

WASHER, STARTER CLUTCH NO.2

08211-10285

$3.32

8

CLUTCH SET, STARTER | MODEL K3

12600-10810

Unavailable

8

CLUTCH SET, STARTER | MODEL K4

12600-10820

Unavailable

8

CLUTCH SET, STARTER | MODEL K5; Includes Item(s) 9 This part replaces 12600-10870.

12600-10871

Unavailable

9

BEARING, STARTER CLUTCH GEAR

09263-28031

$43.98

10

BOLT, STARTER ONE WAY CLUTCH

09103-10189

$3.83
