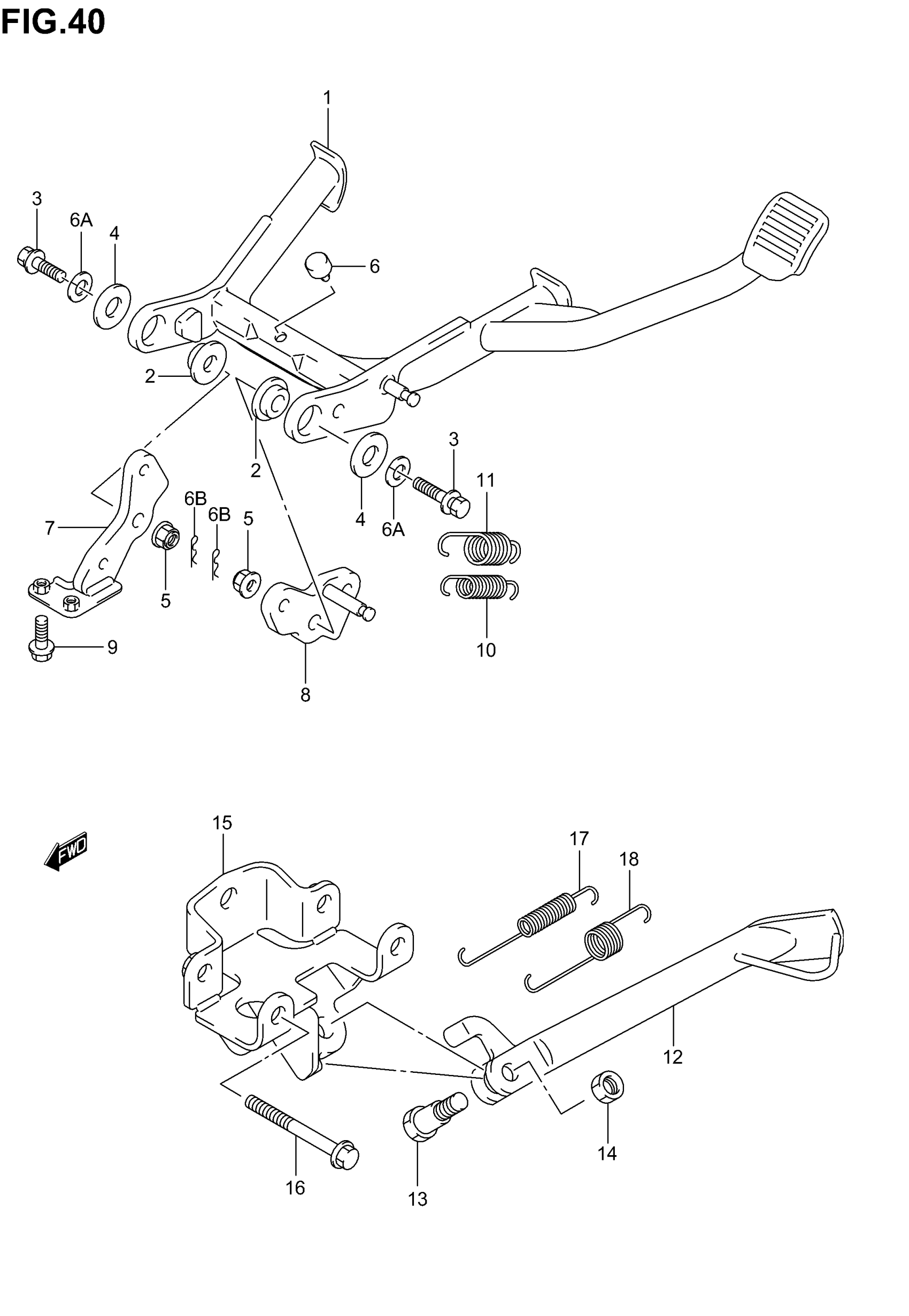

Suzuki AN650 (2005) STAND Diagram

#

Description
Price

1

STAND, CENTER | MODEL K3/K4 This part replaces 42100-10G10.

42100-10G14

$326.10

1

STAND, CENTER | MODEL K5 This part replaces 42100-10G12.

42100-10G14

$326.10

2

SPACER | MODEL K3/K4 This part replaces 42253-10G00.

42253-10G01

$12.60

2

SPACER | MODEL K5

42253-10G01

$12.60

3

BOLT

09101-10036

$5.75

4

WASHER

09160-10126

$2.21

5

NUT, PROP STAND

42321-03FK0

$4.94

6

CUSHION

09321-10036

$7.20

6A

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.94

6B

CLIP

09385-10005

$1.56

7

BRACKET, CENTER STAND RH | MODEL K3/K4 This part replaces 42270-10G01.

42270-10G40

$48.82

7

BRACKET, CENTER STAND RH | MODEL K5

42270-10G40

$48.82

8

BRACKET, CENTER STAND LH | MODEL K3/K4 This part replaces 42280-10G00.

42280-10G01

$39.62

8

BRACKET, CENTER STAND LH | MODEL K5

42280-10G01

$39.62

9

BOLT This part replaces 01550-08203.

01550-0820A

$2.32

10

SPRING, INNER

09443-14057

$10.42

11

SPRING, OUTER

09443-22009

$10.42

12

STAND, PROP

42310-10G00

$144.07

13

BOLT

09111-10058

$6.31

14

NUT, PROP STAND

42321-03FK0

$4.94

15

BRACKET, PROP STAND | MODEL K3/K4 This part replaces 42330-10G01.

42330-10G02

Unavailable

15

BRACKET, PROP STAND | MODEL K5

42330-10G02

Unavailable

16

BOLT This part replaces 01550-08753.

01550-0875A

$3.37

17

SPRING, INNER

09443-12050

$11.17

18

SPRING, OUTER

09443-21005

$13.63
