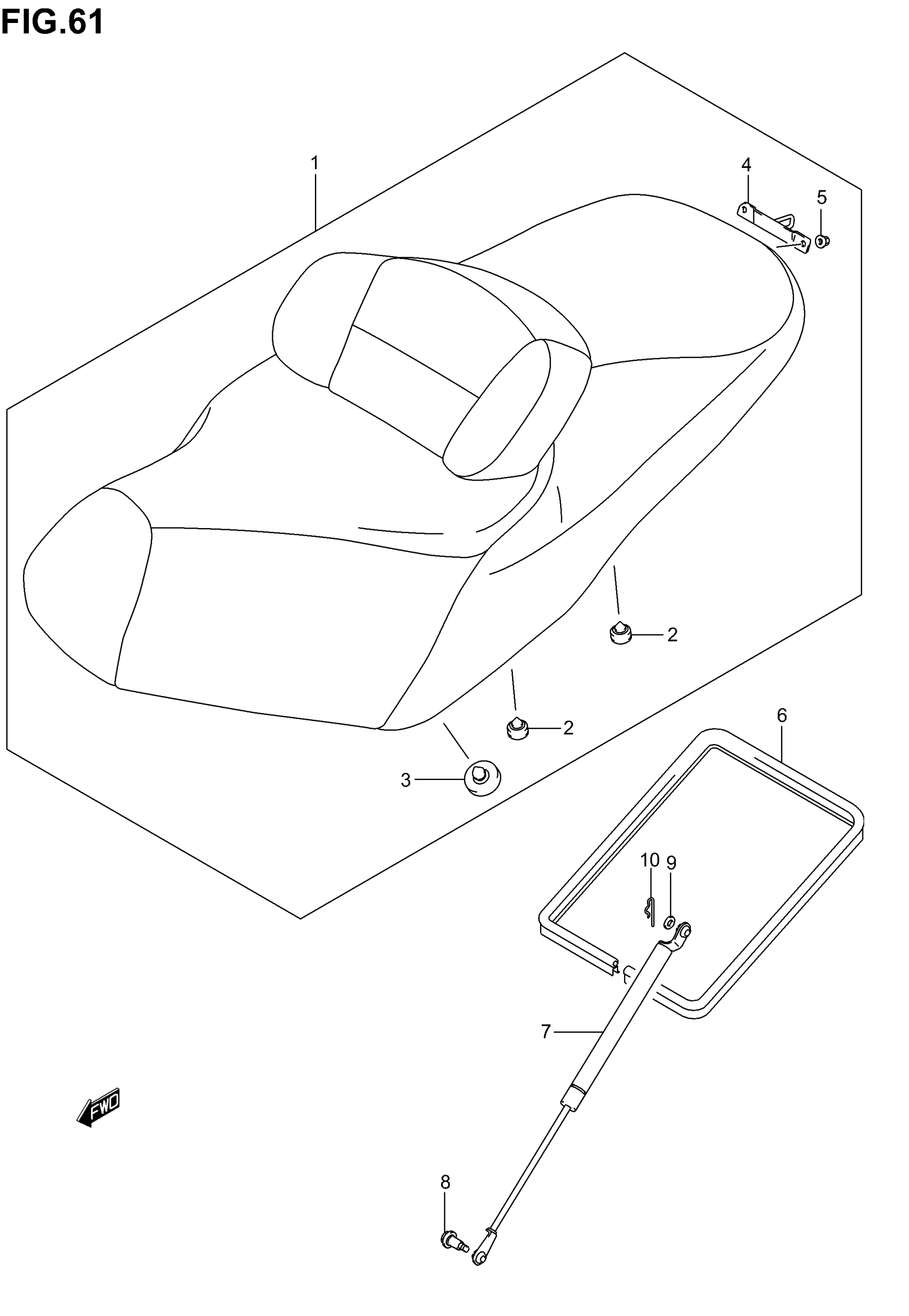

Suzuki AN650 (2005) SEAT Diagram

#

Description
Price

1

SEAT ASSY | AN650K3

45100-10G01-FC8

Unavailable

1

SEAT ASSY | AN650K4

45100-10G20-FC8

Unavailable

1

SEAT ASSY | AN650K5; Includes Item(s) 2 - 5 This part replaces 45100-10G30-FC8.

45100-10G33-FC8

$1,440.42

2

CUSHION

09321-10002

$2.02

3

CUSHION, FRONT

09321-12001

$6.22

4

STRIKER, SEAT LOCK

45210-10G00

$30.73

5

NUT

09159-06085

Unavailable

6

MOLDING, SEAT This part replaces 45211-10G00.

45211-10G10

Unavailable

7

DAMPER ASSY,SEA This part replaces 45270-10G00.

45270-10G01

$98.23

8

BOLT, SEAT DAMPER LOWER

09111-06079

$4.85

9

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

10

PIN

09385-08003

$1.87
