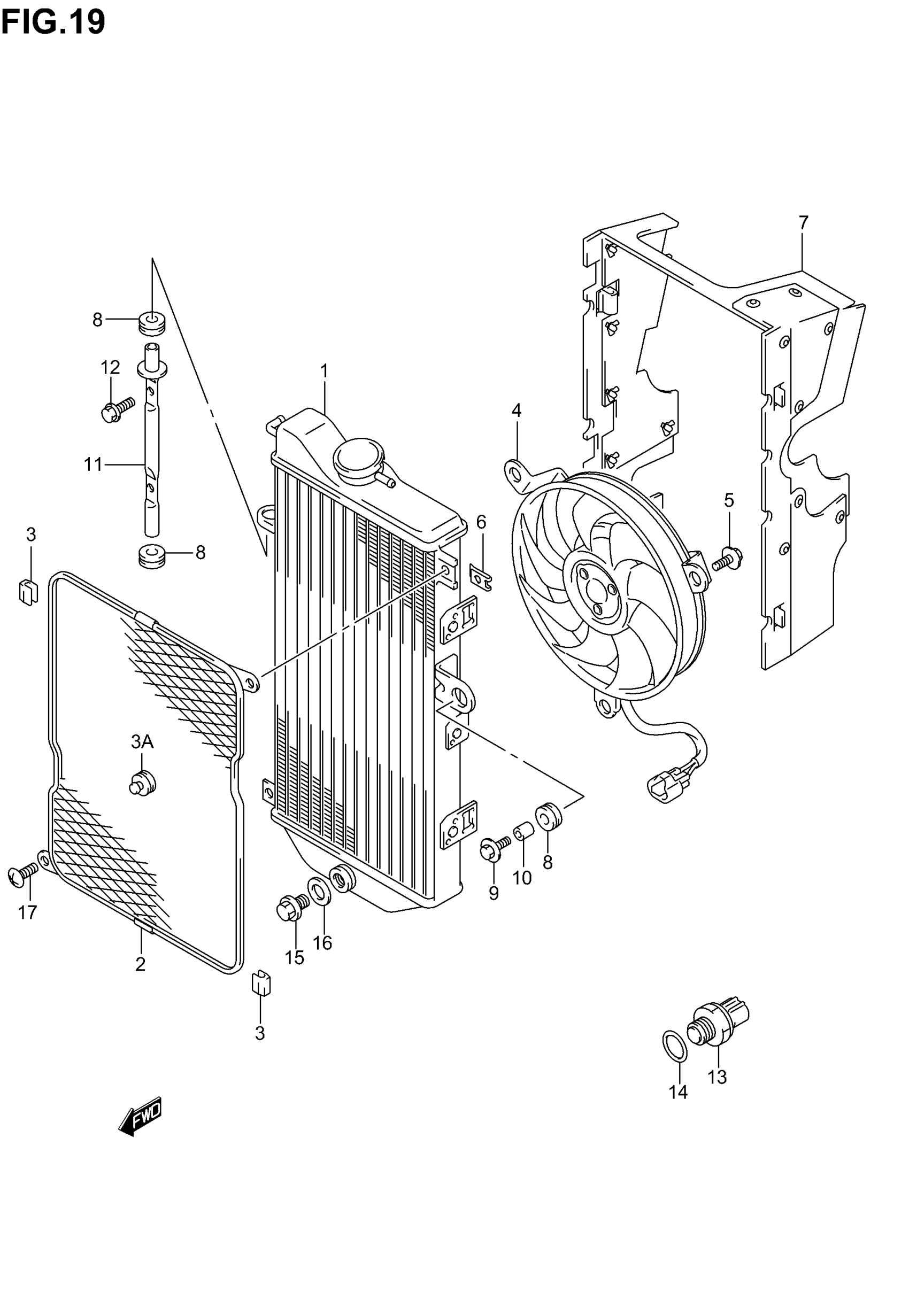

Suzuki AN650 (2005) RADIATOR Diagram

RADIATOR ASSY, WATER

17710-10G00

$1,184.60

GUARD,RADIATOR | Includes Item(s) 3 This part replaces 17750-10G00.

17750-10G01

$79.82

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.82

CUSHION, RADIATOR GUARD

17768-33410

Unavailable

FAN ASSY, RADIATOR

17800-10G00

$748.63

BOLT

17711-40F00

$6.30

NUT, FAN ASSY

17712-40F00

$4.61

SHIELD, RADIATOR HEAT This part replaces 17760-10G00.

17760-26J00

Unavailable

CUSHION

09320-10015

$2.61

BOLT

09116-06167

$2.25

SPACER

09180-06310

$1.99

BRACKET, RADIATOR

17740-10G00

Unavailable

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

SWITCH COMP,FAN | Includes Item(s) 14 This part replaces 17680-50F10.

17680-50F11

$88.25

O RING

17689-50F00

$2.63

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

GASKET, DRAIN BOLT

09168-06026

$2.88

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.43
