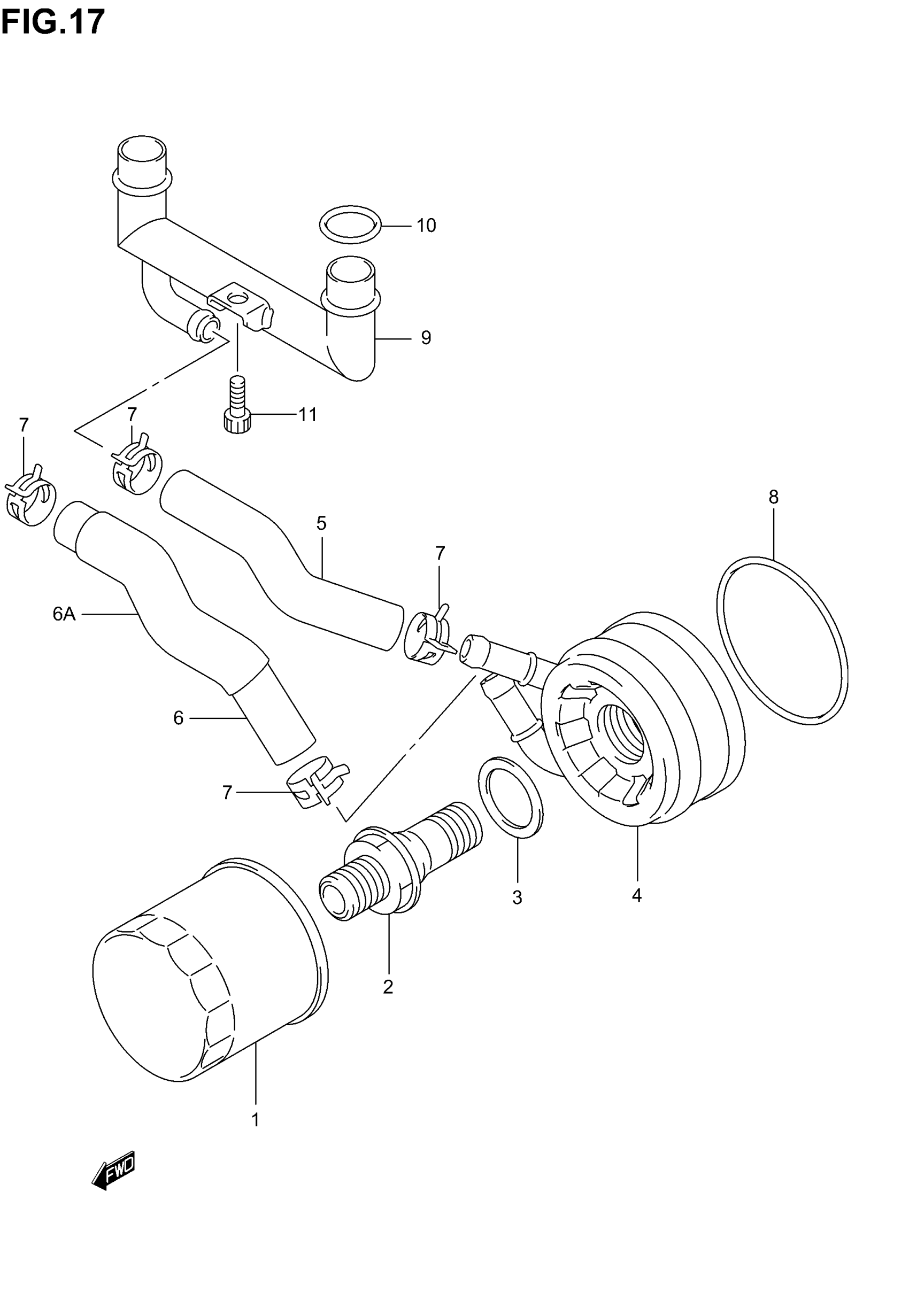

Suzuki AN650 (2005) OIL COOLER Diagram

#

Description
Price

1

FILTER, ENGINE OIL | MODEL K3 This part replaces 16510-34E00.

16510-07J00

$12.35

1

FILTER, ENGINE OIL | MODEL K4/K5 This part replaces 16510-03G00-X07.

16510-07J00

$12.35

2

BOLT,OIL COOLER UNION

16591-02F00

$56.53

3

WASHER, UNION

09181-25160

$3.03

4

COOLER ASSY, OIL

16600-10G00

Unavailable

5

HOSE, OIL COOLER IN

16461-10G00

$22.08

6

HOSE, OIL COOLER OUT

16471-10G00

$23.17

6A

PROTECTOR, HOSE HEAT

16479-10G00

Unavailable

7

CLIP This part replaces 09401-16406.

09401-16407

$2.53

8

O RING

09280-64003

$5.24

9

PIPE, WATER

17880-10G00

$74.40

10

O RING

09280-18009

$5.42

11

BOLT

09106-06075

$2.58
