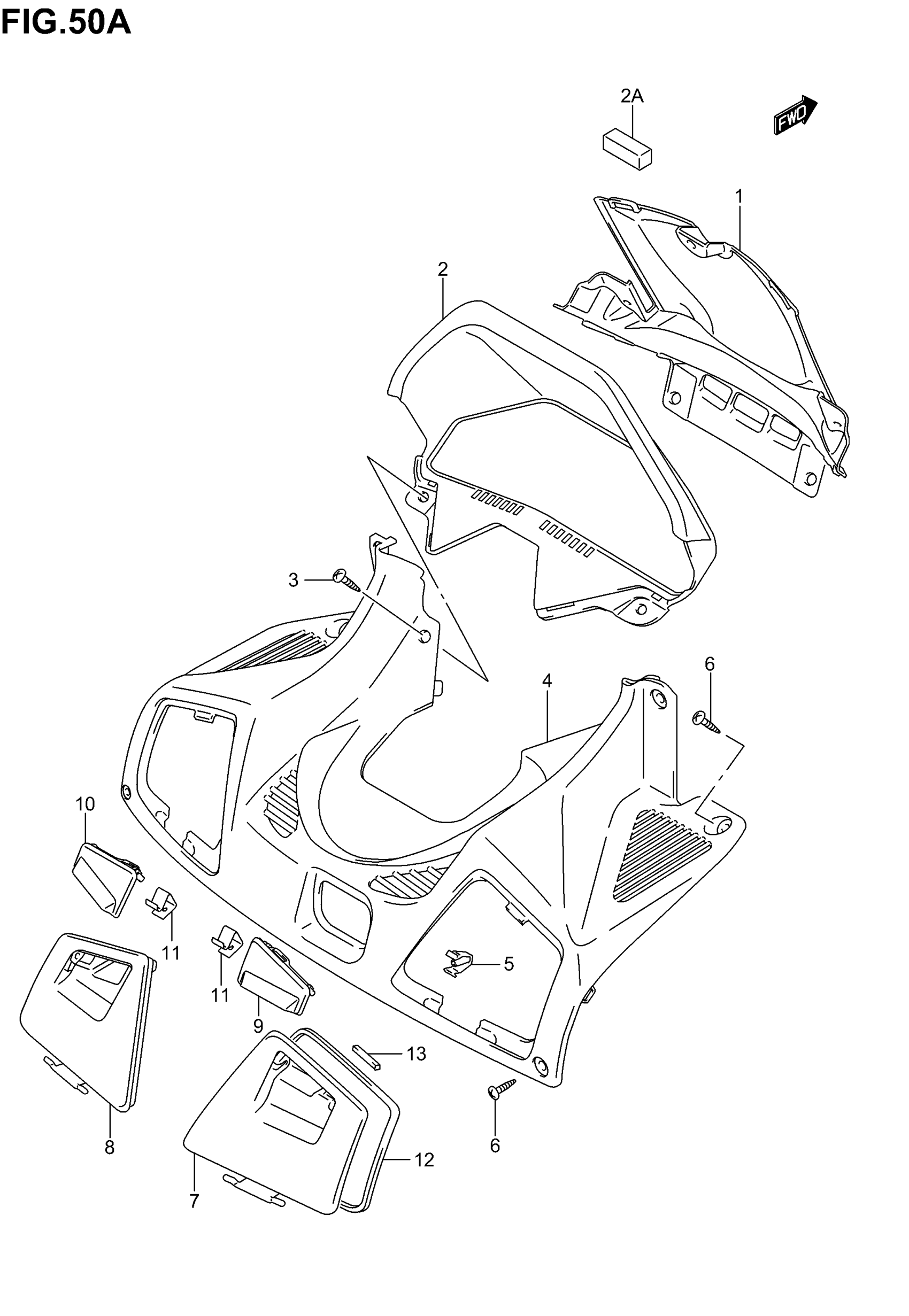

Suzuki AN650 (2005) METER PANEL (MODEL K5) Diagram

#

Description
Price

1

PANEL, METER FRONT (GRAY)

94421-10G01-Y0J

$94.17

2

PANEL, METER REAR (GRAY) | Includes Item(s) 2A

94420-10G00-Y0J

$76.83

2A

CUSHION

94423-10G00

Unavailable

3

SCREW, REAR PANEL

09122-66006

$3.37

4

PANEL, FRONT LOWER (GRAY)

94671-10G00-Y0J

$104.27

5

CLIP

09409-08326

$2.53

6

SCREW, LOWER PANEL

09132-05053

$2.33

7

LID, FRONT PANEL RH (GRAY)

92140-10G10-Y0J

$54.50

8

LID, FRONT PANEL LH (GRAY) | Includes Item(s) 9 - 13

92150-10G10-Y0J

$53.48

9

LOCK, PANEL RH (GRAY)

92143-10G10-Y0J

$14.47

10

LOCK, PANEL LH (GRAY)

92153-10G10-Y0J

$13.93

11

SPRING, LID

92144-10G10

$8.88

12

CUSHION

92145-10G00

$7.95

13

CUSHION This part replaces 92146-10G00.

92145-10G00

$7.95
