2012 Suzuki AN400ZAL2 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

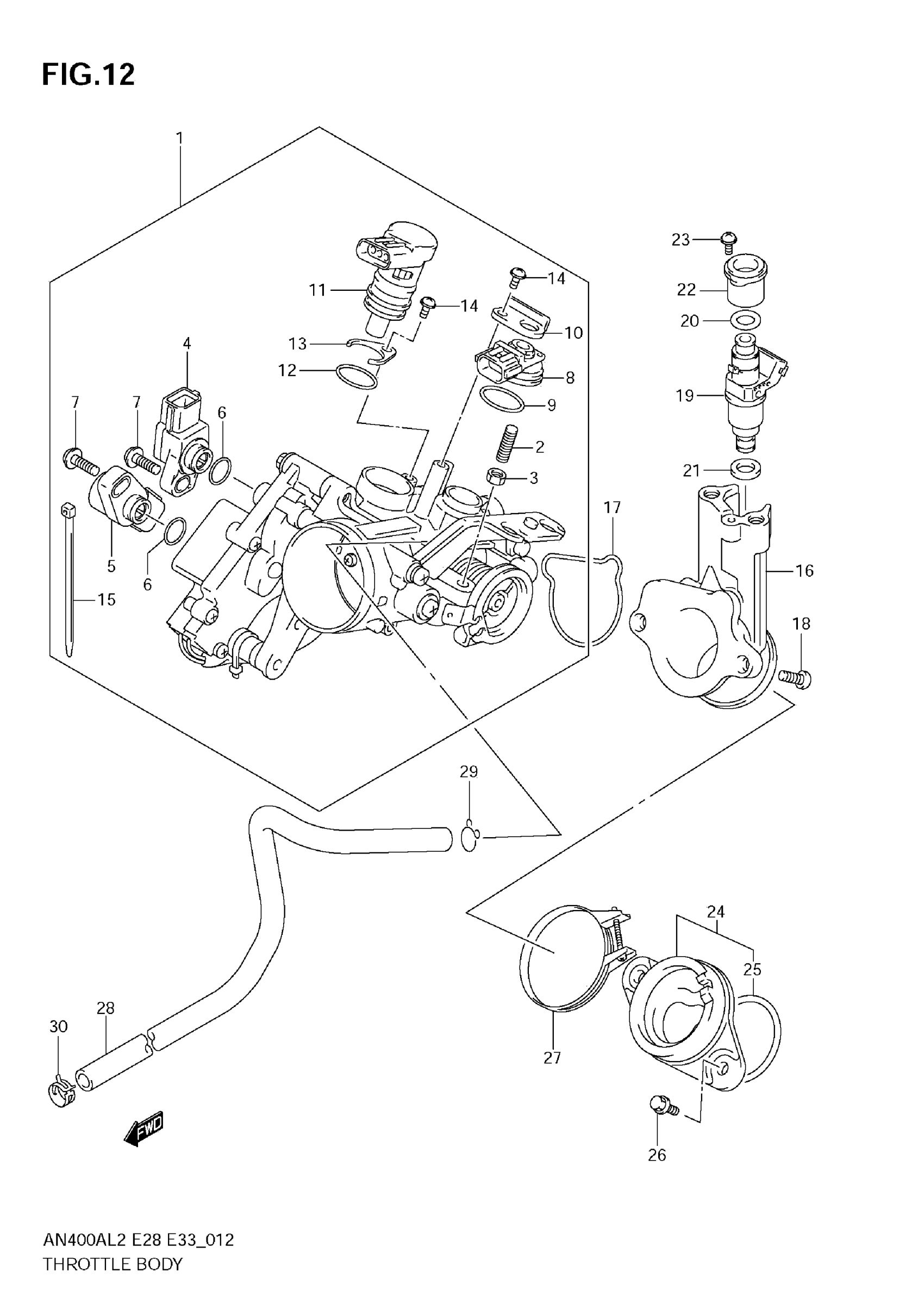

2012 Suzuki AN400ZAL2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT This part replaces 13401-05H31.

13401-05H32

1
Out of stock

2

SCREW

13267-14G10

1
Out of stock

3

NUT

13661-14G10

1
Out of stock

4

SENSOR ASSY, MAIN

13580-18G00

1
Out of stock

5

SENSOR ASSY, SUB

13580-05H01

1
Out of stock

6

O RING

13575-40F00

2
Out of stock

7

SCREW

13605-40F00

2
Out of stock

8

SENSOR, MAP

15620-05H00

1
Out of stock

9

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

10

PLATE

15622-05H00

1
Out of stock

11

.VALVE, ISC This part replaces 18117-05H21.

18117-05H22

1
Out of stock

12

O RING

18119-05H00

1
Out of stock

13

PLATE

13428-06F30

1
Out of stock

14

SCREW

02112-14087

2
Out of stock

15

CLAMP (L:145)

09407-14407

1
Out of stock

16

INTAKE PIPE

13111-05H00

1
Out of stock

17

.O RING

13278-05H00

1
Out of stock

18

BOLT

13612-14G00

2
Out of stock

19

INJECTOR ASSY

15710-05H01

1
Out of stock

20

O-RING

15721-10G00

1
Out of stock

21

RING

15722-45G00

1
Out of stock

22

COVER

13473-14G00

1
Out of stock

23

SCREW

13601-14G00

1
Out of stock

24

PIPE ASSY,INTAKE This part replaces 13101-05H00.

13101-05H01

1
Out of stock

25

O RING (D:2.4,ID:41.7)

09280-42003

1
Out of stock

26

BOLT (6X16)

09119-06092

2
Out of stock

27

CLAMP

13170-39H00

1
Out of stock

28

HOSE, PURGE

13680-05H10

—
Out of stock

29

CLIP

09401-06101

1
Out of stock

30

CLIP

09401-08411

1
Out of stock
