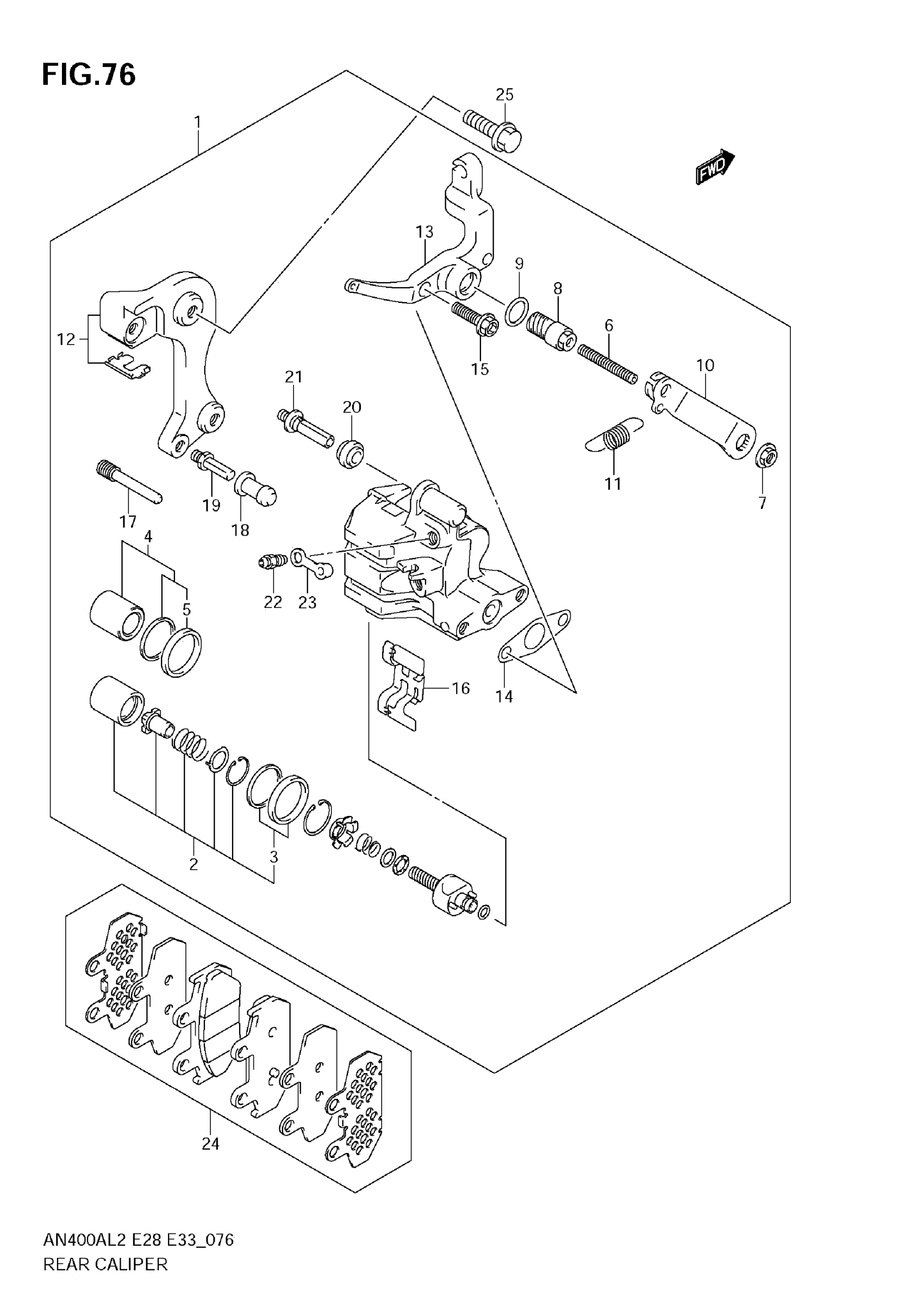

Find the part on the Rear Caliper diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN400ZAL2 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR This part replaces 69100-05H30-999.

69100-05H31-999

1
Out of stock

2

PISTON SET

69100-43810

1

$36.52

In stock

3

SEAL SET, PISTON

69100-36810

1

$9.26

In stock

4

PISTON SET

69100-10830

1
Out of stock

5

SEAL SET, PISTON

69100-36810

1

$9.26

In stock

6

BOLT

69127-10G00

1
Out of stock

7

NUT

69123-14F40

1
Out of stock

8

SHAFT

69124-10G00

1
Out of stock

9

O RING

69122-14F40

1
Out of stock

10

ARM

69125-05H00

1
Out of stock

11

SPRING, RETURN

69128-14F00

1
Out of stock

12

BRACKET, RR

69150-05H10

1
Out of stock

13

PARKING

69120-05H10

1
Out of stock

14

PACKING

69126-14F40

1
Out of stock

15

BOLT (8X25)

69121-14F00

2
Out of stock

16

SPRING, PAD

69115-10G00

1
Out of stock

17

PIN, HANGER

59345-13E00

2

$14.31

In stock

18

BOOT

59386-13A00

1
Out of stock

19

PIN

59382-14500

1

$9.18

In stock

20

BOOT

59303-14500

1
Out of stock

21

PIN

59305-27C00

1

$26.52

In stock

22

BLEEDER

59121-01A00

1
Out of stock

23

CAP, BLEEDER

59122-01A00

1
Out of stock

24

PAD & SHIM SET

69102-05890

1
Out of stock

25

BOLT

01550-0830A

2
Out of stock
