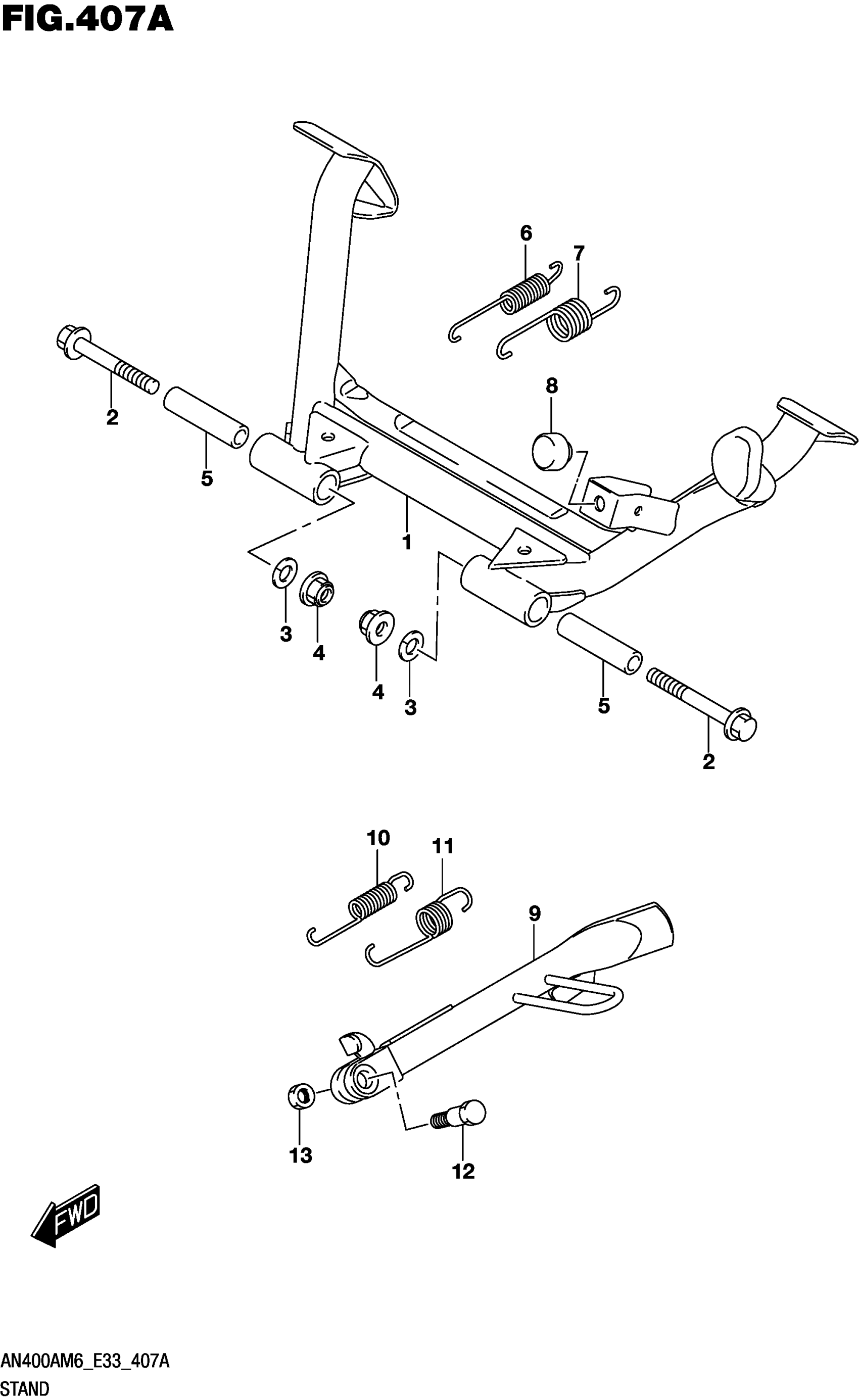

Suzuki AN400AM6(E33) (2026) STAND Diagram

#

Description
Price

1

STAND,CENTER

42100-19K20

$231.77

2

BOLT (10X85)

09103-10707

$5.03

3

WASHER,LOCK

08321-0110A

$1.86

4

NUT

08319-3110A

$2.73

5

SPACER,CENTER STAND PIVOT

09180-10165

$14.56

6

SPRING

09443-14078

$5.03

7

SPRING

09443-22021

$6.55

8

CUSHION

09321-10001

$2.69

9

STAND,PROP

42310-19K10

$255.03

10

SPRING

09443-14079

$5.03

11

SPRING

09443-19024

$7.33

12

BOLT (10X34)

09111-10027

$3.08

13

NUT

09159-10097

$5.10
