2025 Suzuki AN400AM5 Crankcase Cover Diagram

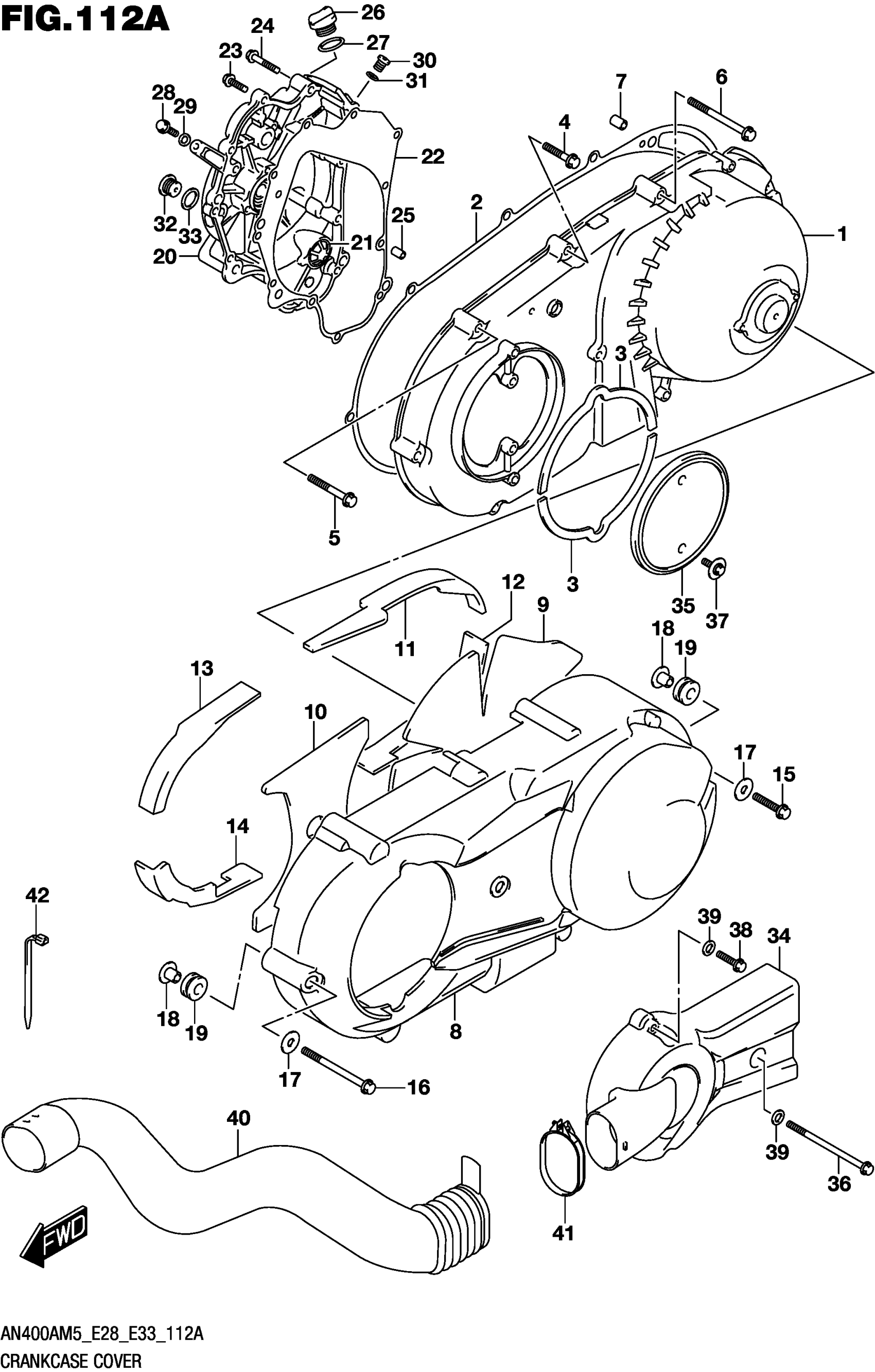

Find the part on the Crankcase Cover diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
5
BOLT
01547-0645A
7
PIN (8.5X18X2.3)
04211-09149
15
BOLT (6X30)
09103-06213
17
WASHER (6.5X18X1.0)
09160-06028
18
WASHER (6.3X17X1.6)
09169-06062
19
CUSHION (9X18X9.5)
09320-09016
23
BOLT
01547-0625A
24
BOLT
01547-0640A
25
PIN (8.5X18X2.3)
04211-09149
26
PLUG,ENGINE OIL FILLER
11971-25D00
27
O-RING (D:3.1,ID:16.8)
09280-17003
28
BOLT
01547-0612A
29
GASKET (5.8X13X1.2)
09168-06023
30
PLUG (10X10)
09248-10010
32
PLUG (16X8)
09248-16012
33
GASKET (16X22X2)
09168-16002
37
BOLT (6X16)
09116-06006
38
BOLT
01547-0620A
39
WASHER
08322-0106A
42
CLAMP (L:125)
09407-14403
