Description

Price

1

FACE,FIXED DRIVE

21110-05H00

$90.96

2

FACE,MOVABLE DRIVE

21120-05H00

$102.76

3

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

$9.90

4

SPACER,MOVABLE DRIVE

21125-05H00

$62.32

5

PLATE,MOVABLE DRIVE

21431-05H00

$59.37

6

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$6.61

7

ROLLER,MOVABLE DRIVEN

21650-15F40

$13.54

8

FACE,FIXED DRIVEN

21210-05H00

$299.92

9

BEARING,FIXED DRIVEN RH

21214-15F01

$24.45

10

FACE,MOVABLE DRIVEN

21240-05H10

$278.97

11

SPRING,MOVABLE DRIVEN

21243-15F40

$33.13

12

O-RING

21245-15F00

$4.73

13

SEAL,MOVABLE DRIVEN

21247-31G00

$11.43

14

PIN,MOVABLE DRIVEN

21248-15F01

$4.48

15

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.06

16

SHEET,MOVABLE DRIVEN

21471-15F20

$19.52

17

V BELT, DRIVE

27601-05H10

$140.10

18

NUT

09140-18501

$2.80

19

WASHER (18.3X31.5X1.8)

09164-18001

$2.97

20

BEARING

08123-6904B

$18.23

21

CIRCLIP

08331-41379

$3.12

22

HOUSING,CLUTCH

21220-05H30

$373.52

23

CLUTCH ASSY,SHOE

21501-05H41

$313.15

24

NUT,SHOE CLUTCH

21518-15F00

$12.35

25

NUT

09140-16002

$2.90

26

WASHER

09164-16002

$2.90

27

BEARING (35X62X14)

09262-35064

$77.40

28

O-RING (D:2,ID:31)

09280-32008

$11.90

29

RETAINER

24742-44B00

$3.86

30

SCREW

02122-0616A

$1.43

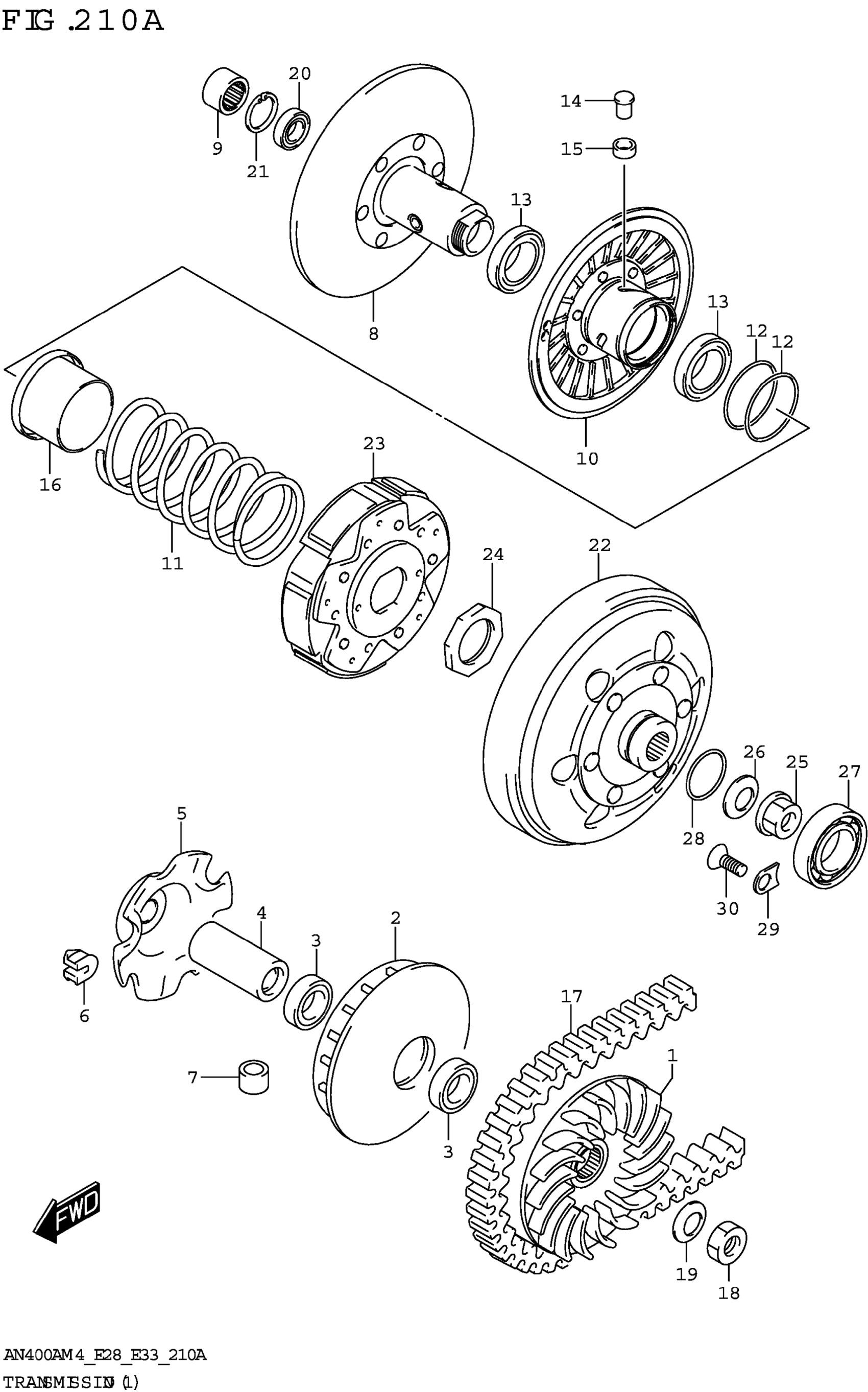

Suzuki AN400AM4 (2024) TRANSMISSION (1) Diagram
