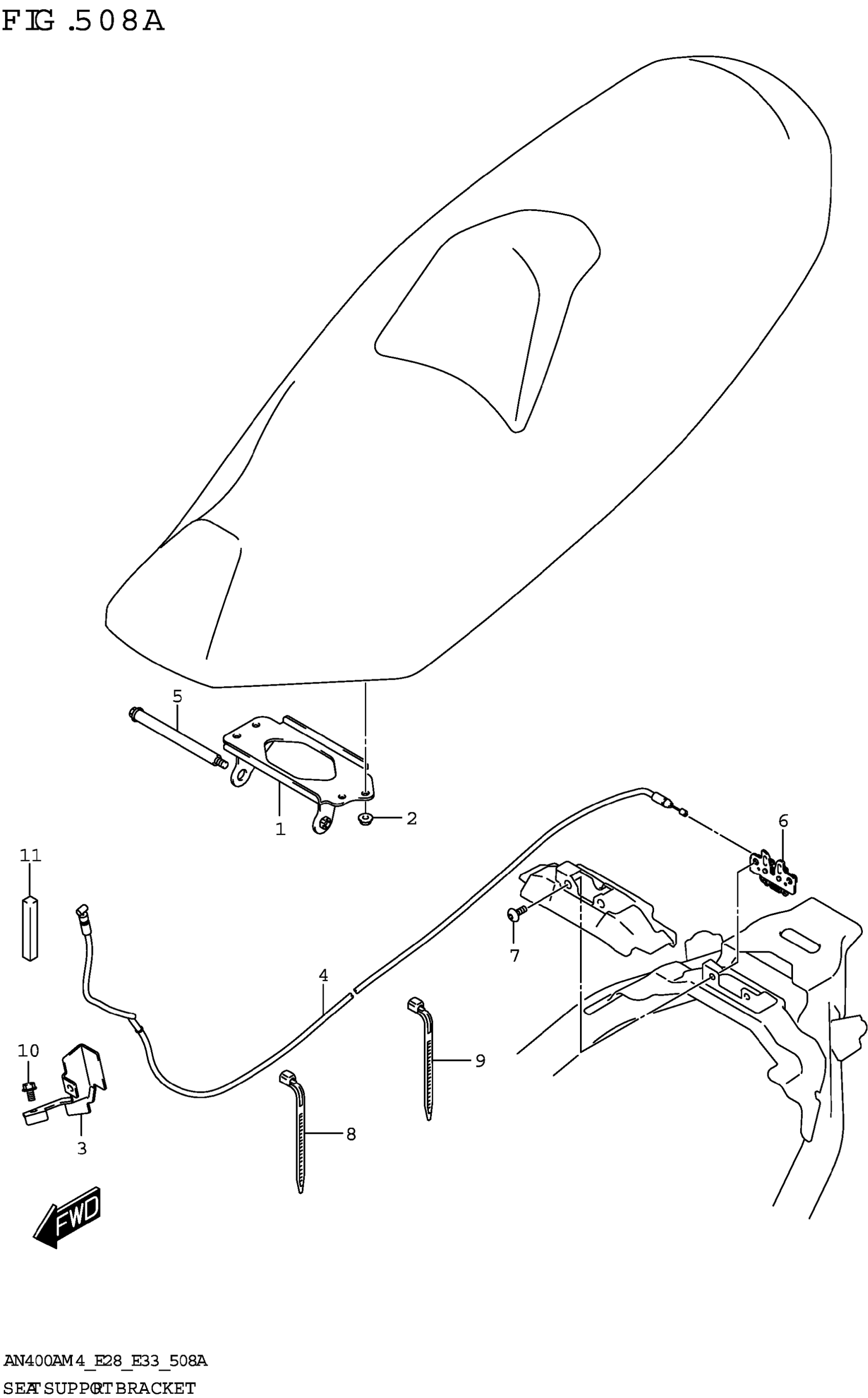

Suzuki AN400AM4 (2024) SEAT SUPPORT BRACKET Diagram

#

Description
Price

1

BRACKET,SEAT HINGE

45240-05H01

$38.28

2

NUT (6X12)

08316-1006A

$2.19

3

BRACKET, SEAT LOCK CABLE

45281-19K00

$16.35

4

CABLE, SEAT LOCK

45280-19K00

Unavailable

5

BOLT,SEAT HINGE BRKT

45215-05H00

Unavailable

6

BRACKET, STRIKER SUPPORT

45700-14FJ0

$60.67

7

SCREW (6X12)

47913-31J00

$2.26

8

CLAMP (L:165)

09407-18402

$2.21

9

CLAMP (L:190)

09407-19401

$3.32

10

BOLT

01550-0612A

$1.97

11

CUSHION,STEERING LOCK

45289-05H00

$3.01
