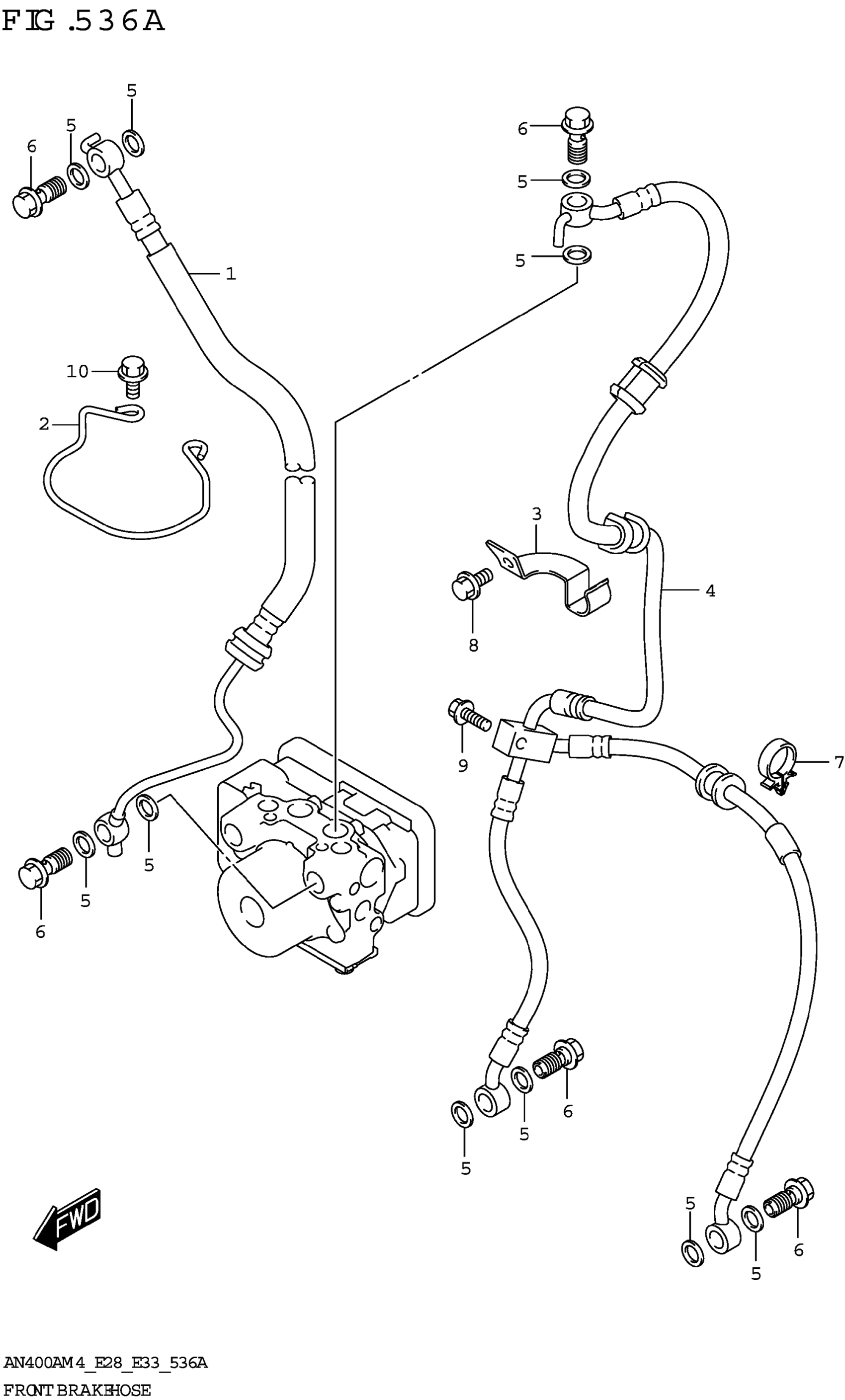

Suzuki AN400AM4 (2024) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE,FR BK MASTER TO UNIT

59240-19K20

$91.12

2

GUIDE, BRAKE HOSE

59251-19K00

$15.73

3

CLAMP, FR BRAKE HOSE NO.1

59261-19K00

$10.35

4

HOSE,UNIT TO FR BK CLPR

59480-19K20

$192.90

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION (10X1.25X22)

09360-10062

$5.81

7

CLAMP

09403-16412

$3.08

8

BOLT

01547-0612A

$2.01

9

BOLT

01547-0625A

$2.01

10

BOLT

01550-0612A

$1.97
