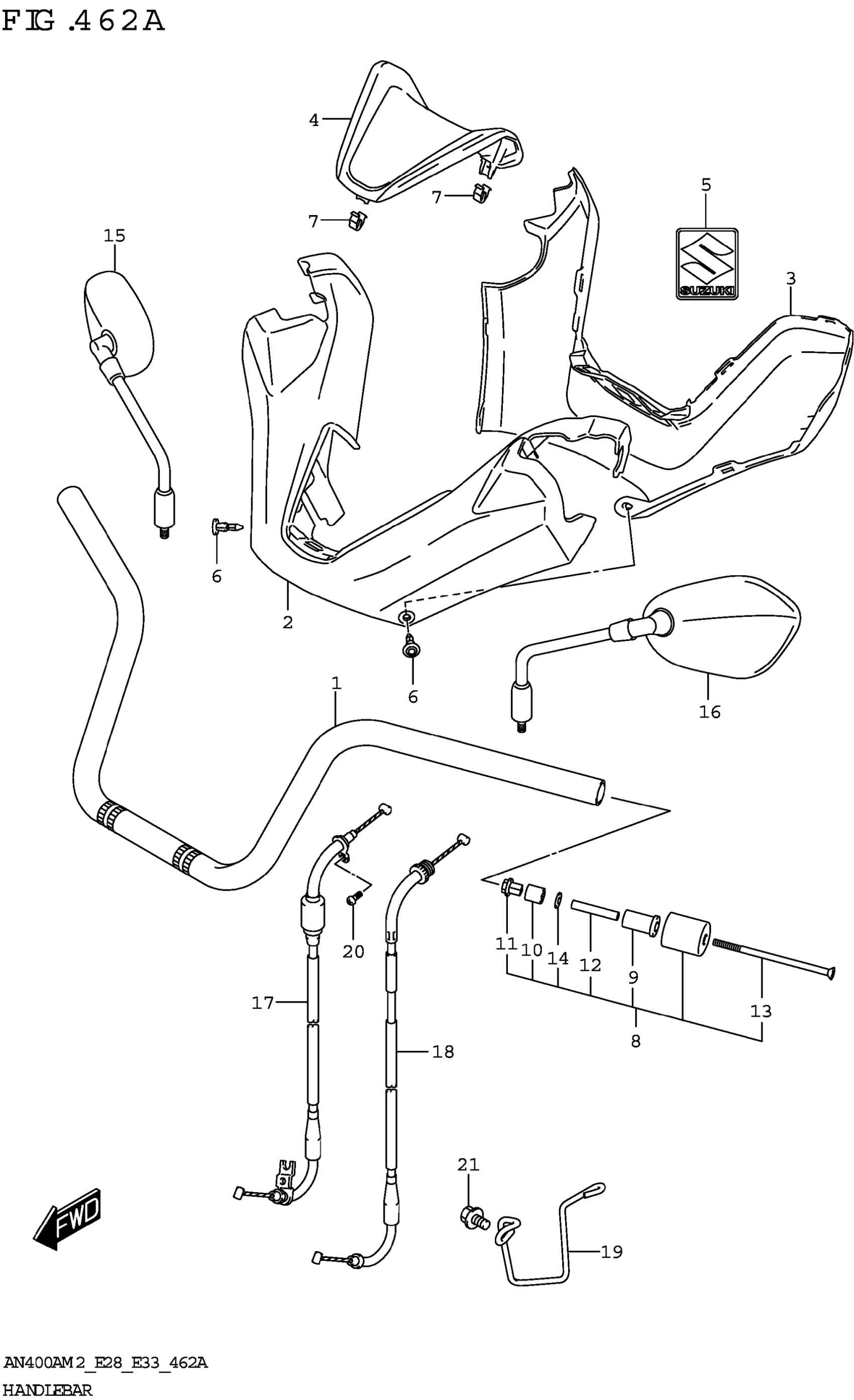

Suzuki AN400AM2 (2022) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-19K00

$130.78

2

COVER, HANDLE FRONT

56311-19K00

$96.92

3

COVER, HANDLE REAR

56321-19K00

$81.68

4

COVER,HANDLE UPPER

56331-19K00

$88.50

5

EMBLEM,S

68281-47HA0

$7.11

6

CLIP

09409-06329

$2.80

7

CLIP (10.5X14.3)

09409-08326

$2.45

8

BALANCER SET,HANDLEBAR

56200-32842

$52.18

9

.EXPANDER,HANDLE BALANCER

56272-06G00

$10.78

10

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.44

11

.NUT,HANDLE BALANCER

56273-10G10

$7.92

12

.SPACER,EXPANDER

56276-17D00

$4.78

13

.SCREW (6X110)

09127-06018

$3.10

14

.WASHER (6.5X16X1.6)

09160-06130

$1.89

15

MIRROR ASSY, REAR VIEW RH

56500-08J40

$140.07

16

MIRROR ASSY, REAR VIEW LH

56600-08J40

$140.07

17

CABLE ASSY,THROTTLE NO.1

58300-19K02

$63.03

18

CABLE ASSY,THROTTLE NO.2

58300-19K11

$54.58

19

GUIDE, THROTTLE CABLE

58622-19K00

$12.52

20

SCREW (5X8)

09125-05073

$2.58

21

BOLT (6X20)

01550-0620A

$1.97
