2019 Suzuki AN400AL9 Seat Support Bracket Diagram

← All diagrams

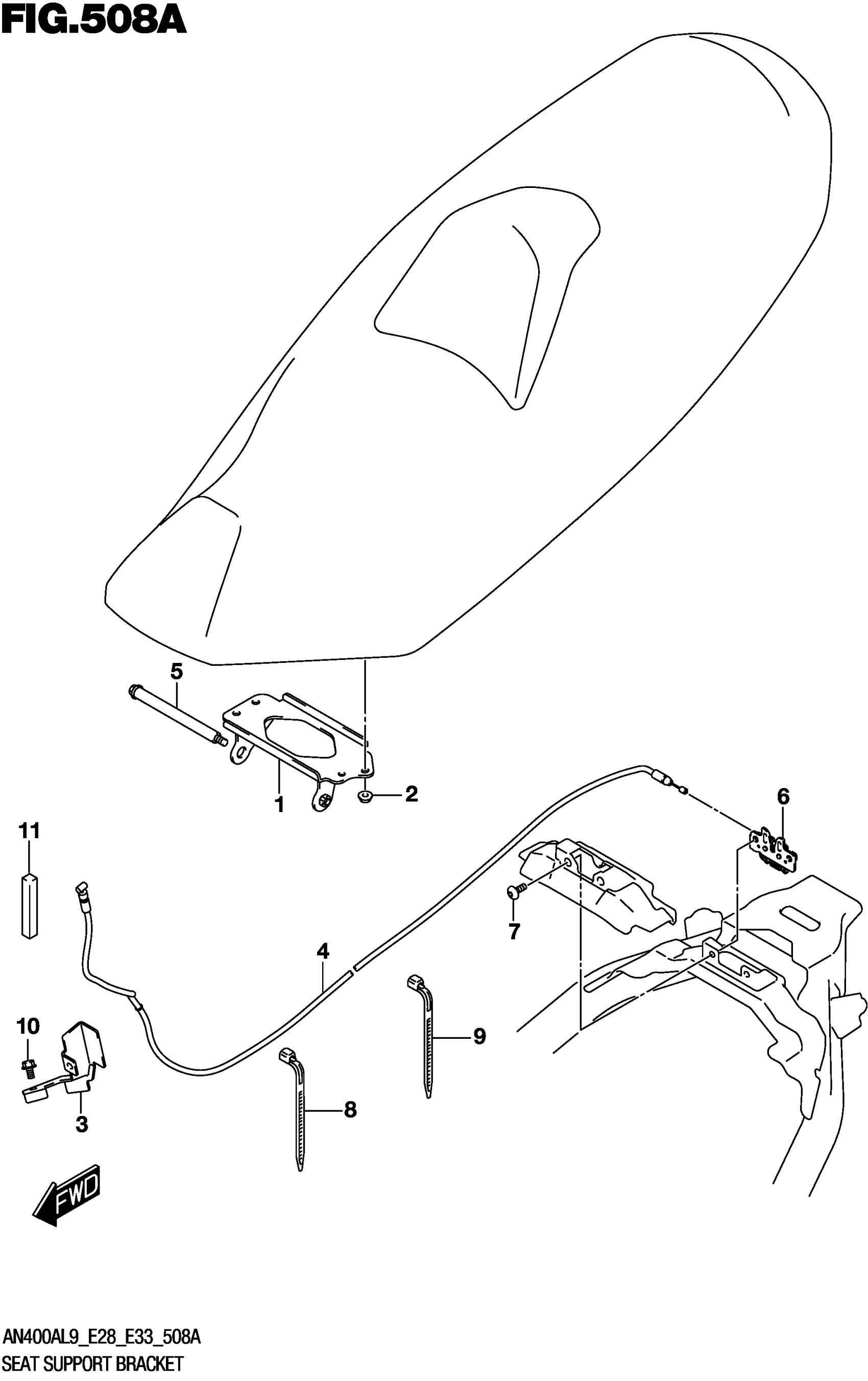

Find the part on the Seat Support Bracket diagram for your 2019 Suzuki AN400AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki AN400AL9 Seat Support Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,SEAT HINGE

45240-05H01

1
Out of stock

2

NUT (6X12)

08316-1006A

4
Out of stock

3

BRACKET, SEAT LOCK CABLE

45281-19K00

1
Out of stock

4

CABLE, SEAT LOCK

45280-19K00

1
Out of stock

5

BOLT,SEAT HINGE BRKT

45215-05H00

1
Out of stock

6

BRACKET, STRIKER SUPPORT

45700-14FJ0

1
Out of stock

7

SCREW (6X12)

47913-31J00

2
Out of stock

8

CLAMP (L:190)

09407-19401

3
Out of stock

9

CLAMP (L:165)

09407-18402

1
Out of stock

10

BOLT

01550-0612A

1
Out of stock

11

CUSHION,STEERING LOCK

45289-05H00

1
Out of stock
