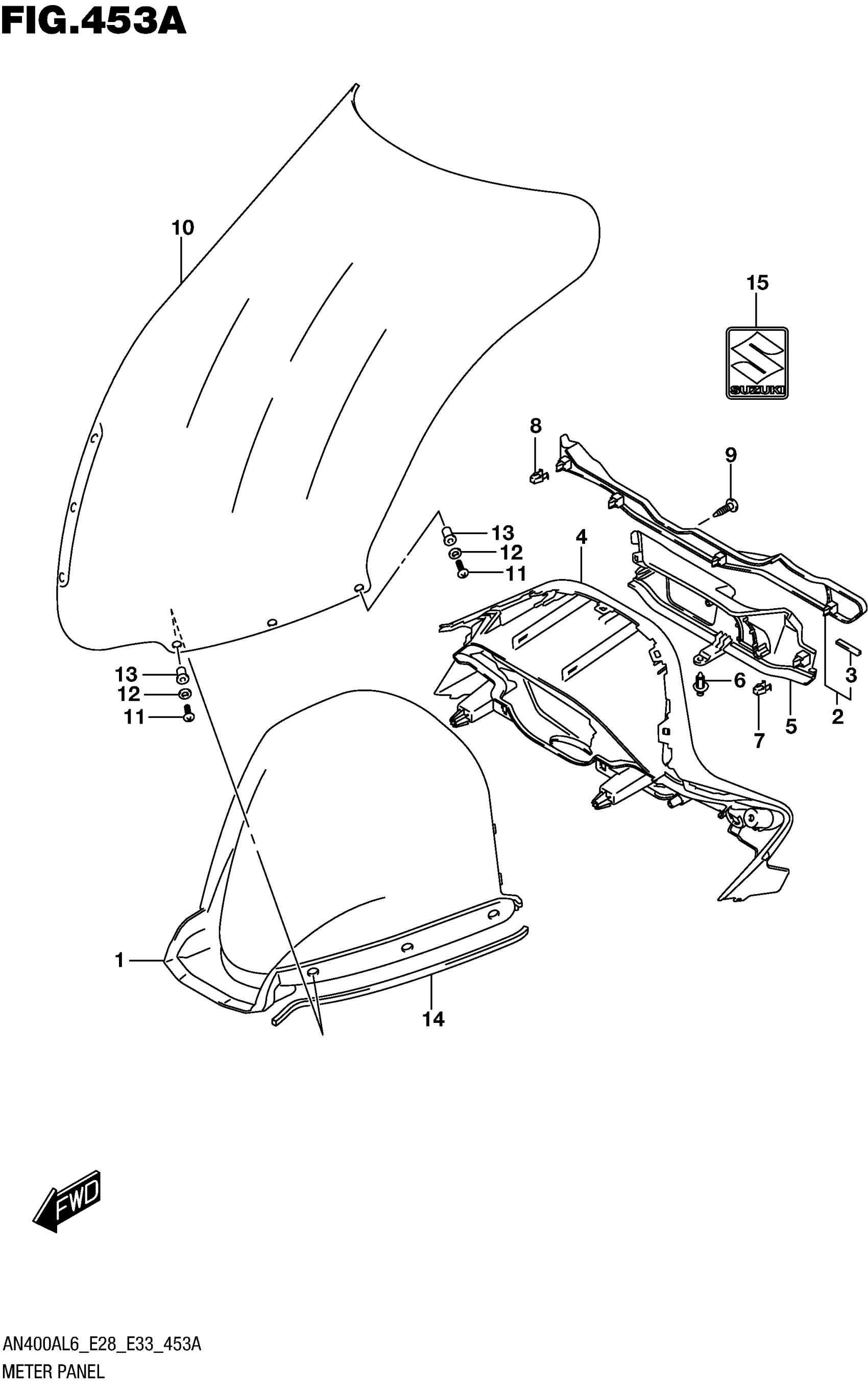

Suzuki AN400AL6 (2016) METER PANEL Diagram

#

Description
Price

1

PANEL, METER FRONT (BLACK)

94421-05H00-291

Unavailable

2

PANEL, METER UPPER (BLACK)

94423-05H01-291

$167.23

3

.TAPE, METER PANEL

94443-06G00

$2.97

4

PANEL, METER REAR (BLACK)

94422-05H00-291

$185.42

5

PANEL, FRONT (BLACK)

94671-05H01-291

$77.00

6

CLIP This part replaces 09409-06322.

09409-06322-5PK

$2.84

7

CLIP

09409-08326

$2.45

8

CLIP

09409-08326

$2.45

9

SCREW

03541-0516A

$1.37

10

WINDSCREEN

94611-05H00

$1,119.40

11

SCREW

02142-0520A

$1.41

12

WASHER

08322-0105A

$1.83

13

NUT

09159-05045

$6.65

14

CUSHION, FRONT

94424-05H00

$6.63

15

EMBLEM "S"

68281-47HA0

$7.11
