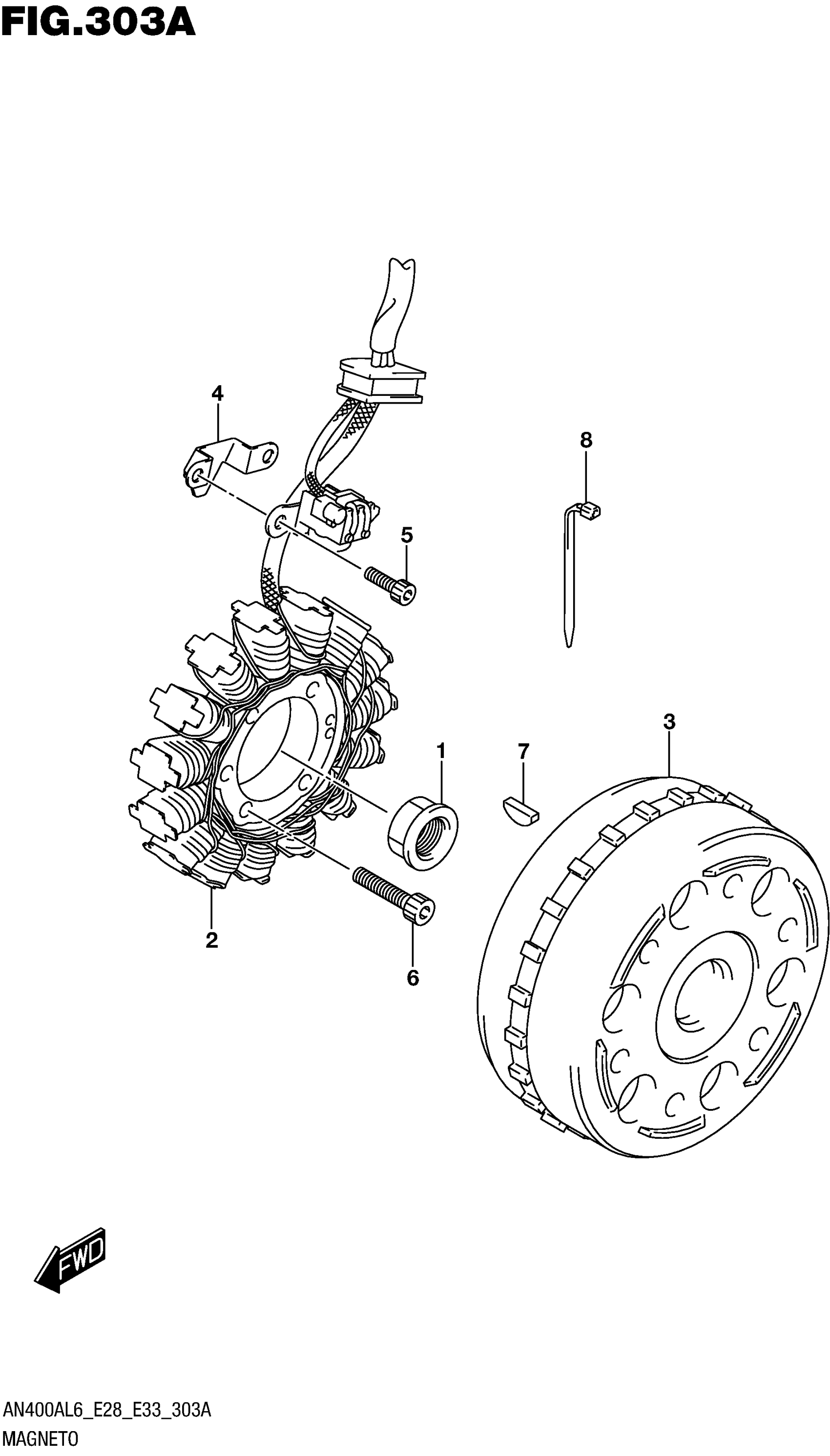

Suzuki AN400AL6 (2016) MAGNETO Diagram

#

Description

Price

1

NUT, MAGNETO ROTOR

31792-18A00

$13.40

2

STATOR ASSY, MAGNETO

32101-15GB1

$739.47

3

ROTOR ASSY, MAGNETO

32102-15G30

Unavailable

4

CLAMP, MAGNETO LEAD

32371-32E00

$7.12

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0630A

$4.03

7

KEY

09420-04008

$3.08

8

CLAMP (L:235)

09407-25401

$4.21
