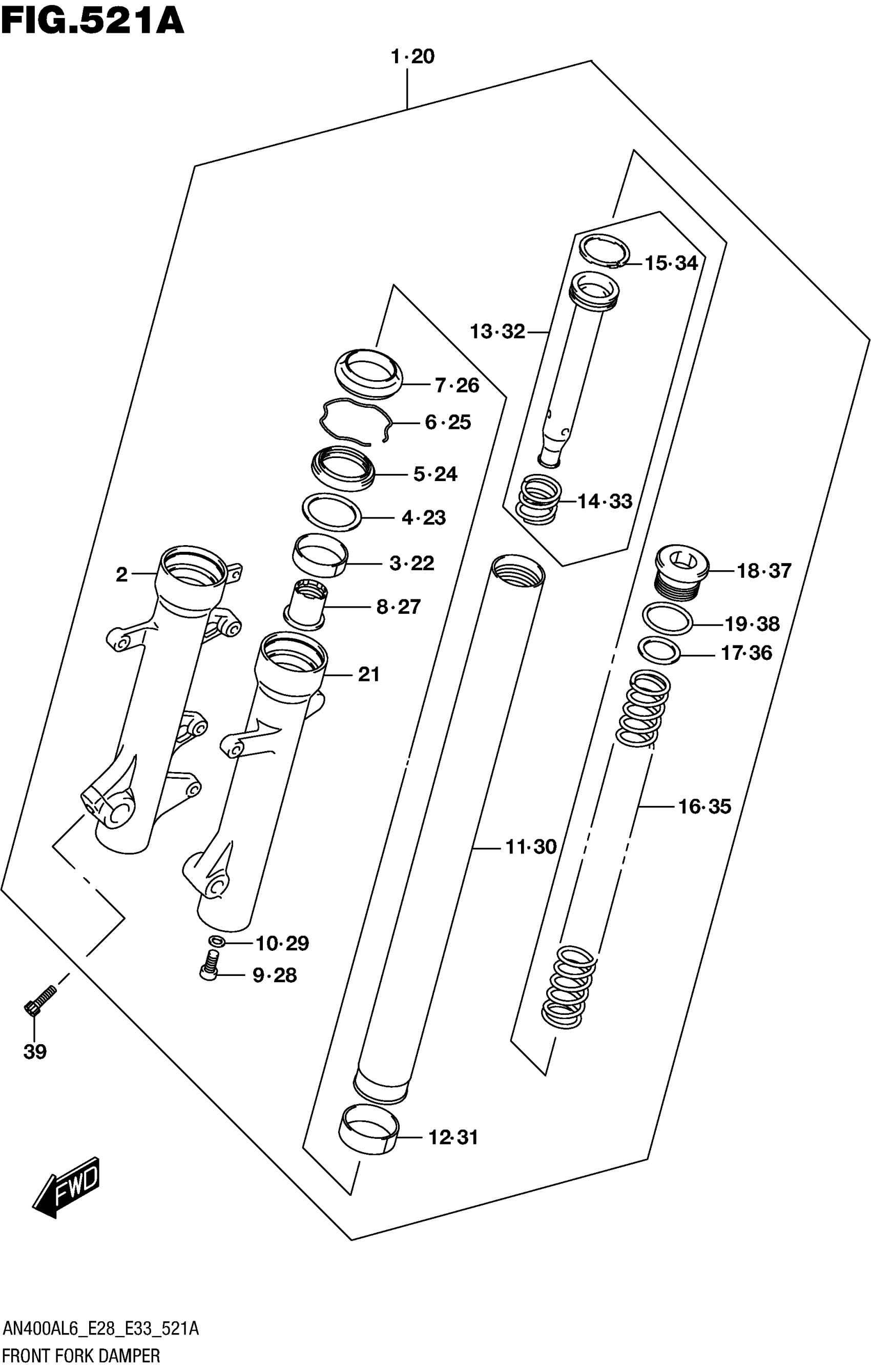

Suzuki AN400AL6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-05H70

$971.75

2

.TUBE, OUTER RH

51130-05H70

Unavailable

3

.METAL, SLIDE

51167-26E10

$23.09

4

.WASHER

51158-05A00

$5.34

5

.OIL SEAL

51153-10G50

$18.94

6

.RING, OIL SEAL STOPPER

51156-49440

$4.75

7

.SEAL, DUST

51173-14F00

$21.12

8

.PIECE, OIL LOCK

51195-33D10

$29.57

9

.BOLT

51147-05H00

$6.10

10

.GASKET

51148-41310

$2.14

11

.TUBE, INNER

51110-05H00

$389.02

12

.PISTON

51121-33D10

$17.78

13

.CYLINDER

51146-05H00

Unavailable

14

..SPRING, REBOUND

51177-14F70

Unavailable

15

..RING, PISTON

51196-14F51

Unavailable

16

.SPRING, FRONT

51171-05H00

$62.47

17

.WASHER, STEM HEAD

51356-27C00

$7.62

18

.CAP, FORK

51351-14F20

Unavailable

19

.O RING (D:3.5,ID:31.7)

09280-32001

$2.07

20

DAMPER ASSY, FRONT FORK LH

51104-05H70

$996.05

21

.TUBE, OUTER LH

51140-05H70

$514.80

22

.METAL, SLIDE

51167-26E10

$23.09

23

.WASHER

51158-05A00

$5.34

24

.OIL SEAL

51153-10G50

$18.94

25

.RING, OIL SEAL STOPPER

51156-49440

$4.75

26

.SEAL, DUST

51173-14F00

$21.12

27

.PIECE, OIL LOCK

51195-33D10

$29.57

28

.BOLT

51147-05H00

$6.10

29

.GASKET

51148-41310

$2.14

30

.TUBE, INNER

51110-05H00

$389.02

31

.PISTON

51121-33D10

$17.78

32

.CYLINDER

51146-05H00

Unavailable

33

..SPRING, REBOUND

51177-14F70

Unavailable

34

..RING, PISTON

51196-14F51

Unavailable

35

.SPRING, FRONT

51171-05H00

$62.47

36

.WASHER, STEM HEAD

51356-27C00

$7.62

37

.CAP, FORK

51351-14F20

Unavailable

38

.O RING (D:3.5,ID:31.7)

09280-32001

$2.07

39

BOLT | RH

51328-05H00

$6.50
