Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-47H50

$321.35

6

SCREW

02162-0616B

$2.06

7

CONTROL UNIT, FI

32920-05HL0

$769.65

8

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

9

COIL ASSY, IGNITION

33410-05H00

$183.72

10

BOLT

07130-0525A

$2.29

11

CAP ASSY, SPARK PLUG

33510-48B10

$29.09

12

SEAL, SPARK PLUG

33541-23E10

$6.17

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

14

COVER,SPARK PLUG CAP

33543-33E01

$4.16

15

CLAMP (L:45)

09404-06429

$1.82

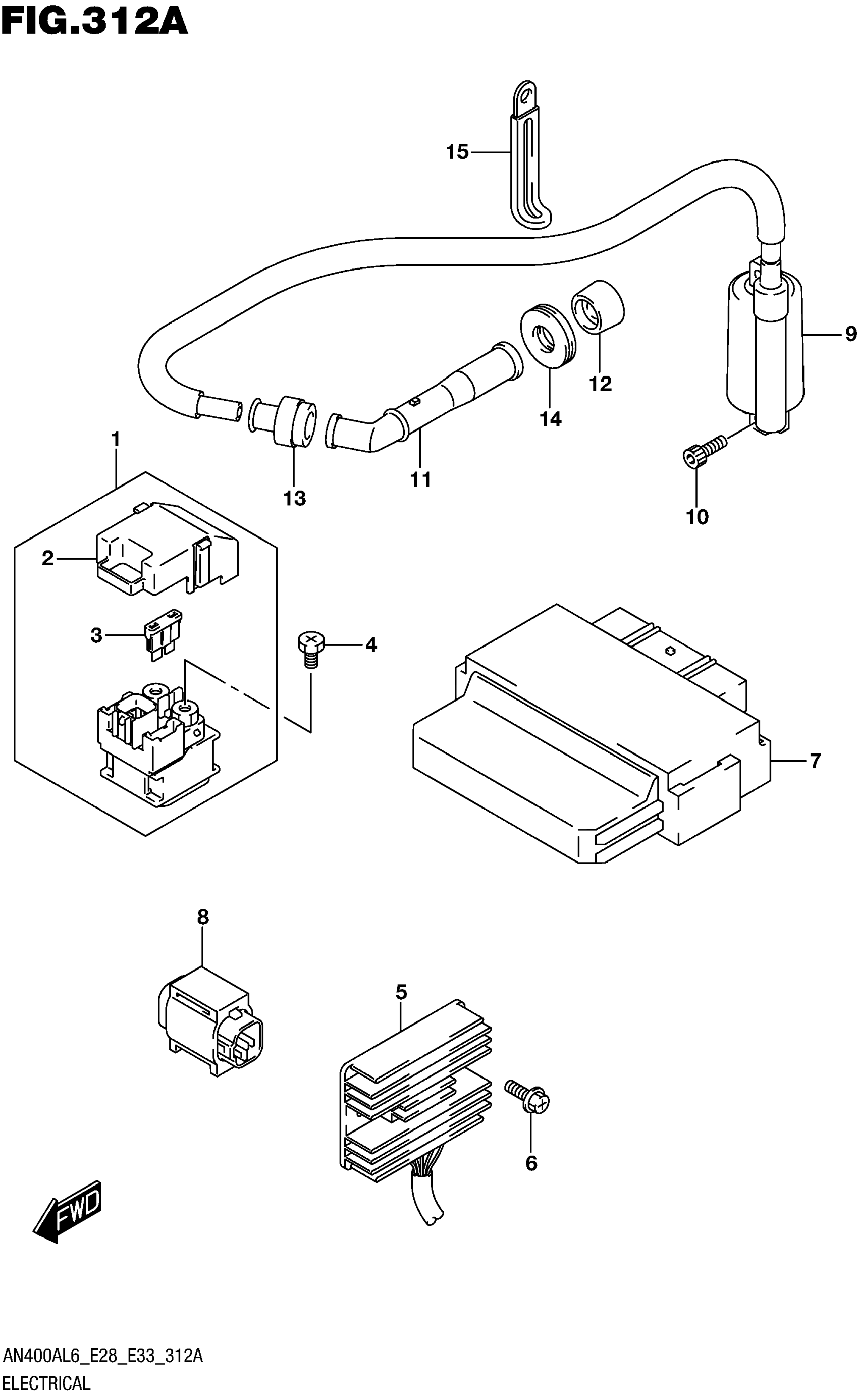

Suzuki AN400AL6 (2016) ELECTRICAL Diagram
