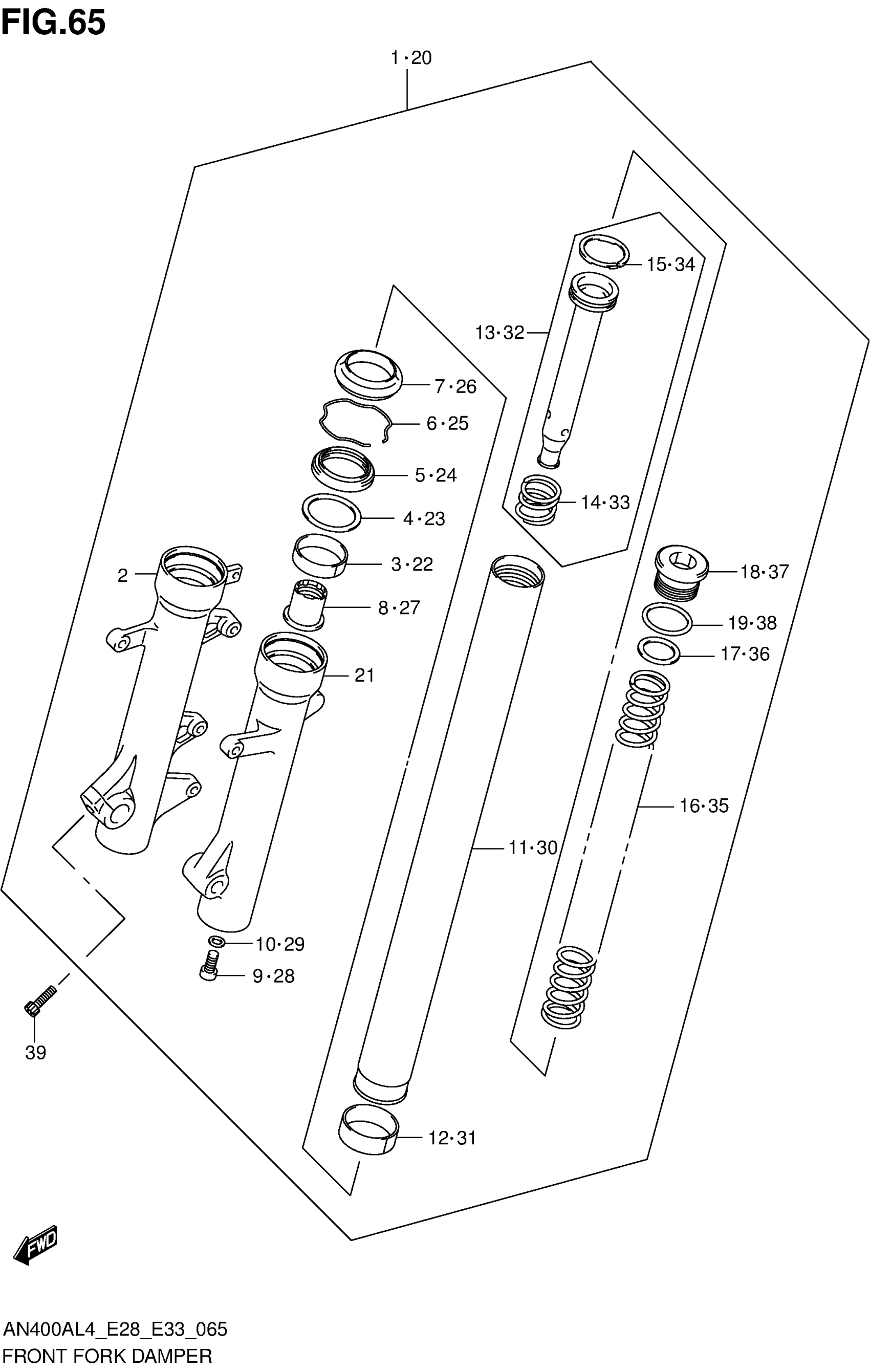

Suzuki AN400AL4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-05H70

$971.75

2

TUBE, OUTER RH

51130-05H70

Unavailable

3

METAL, SLIDE

51167-26E10

$23.09

4

WASHER

51158-05A00

$5.34

5

OIL SEAL

51153-10G50

$18.94

6

RING, OIL SEAL STOPPER

51156-49440

$4.75

7

SEAL, DUST

51173-14F00

$21.12

8

PIECE, OIL LOCK

51195-33D10

$29.57

9

BOLT

51147-05H00

$6.10

10

GASKET

51148-41310

$2.14

11

TUBE, INNER

51110-05H00

$389.02

12

PISTON

51121-33D10

$17.78

13

CYLINDER

51146-05H00

Unavailable

14

SPRING, REBOUND

51177-14F70

Unavailable

15

RING, PISTON

51196-14F51

Unavailable

16

SPRING, FRONT

51171-05H00

$62.47

17

WASHER, STEM HEAD

51356-27C00

$7.62

18

CAP, FORK

51351-14F20

Unavailable

19

O RING (D:3.5,ID:31.7)

09280-32001

$2.07

20

DAMPER ASSY, FRONT FORK LH

51104-05H70

$996.05

21

TUBE, OUTER LH

51140-05H70

$514.80

22

METAL, SLIDE

51167-26E10

$23.09

23

WASHER

51158-05A00

$5.34

24

SEAL, OIL

51153-10G50

$18.94

25

RING, OIL SEAL STOPPER

51156-49440

$4.75

26

SEAL, DUST

51173-14F00

$21.12

27

PIECE, OIL LOCK

51195-33D10

$29.57

28

BOLT

51147-05H00

$6.10

29

GASKET

51148-41310

$2.14

30

TUBE, INNER

51110-05H00

$389.02

31

PISTON

51121-33D10

$17.78

32

CYLINDER

51146-05H00

Unavailable

33

SPRING, REBOUND

51177-14F70

Unavailable

34

RING, PISTON

51196-14F51

Unavailable

35

SPRING, FRONT

51171-05H00

$62.47

36

WASHER, STEM HEAD

51356-27C00

$7.62

37

CAP, FORK

51351-14F20

Unavailable

38

O RING (D:3.5,ID:31.7)

09280-32001

$2.07

39

BOLT | RH

51328-05H00

$6.50
