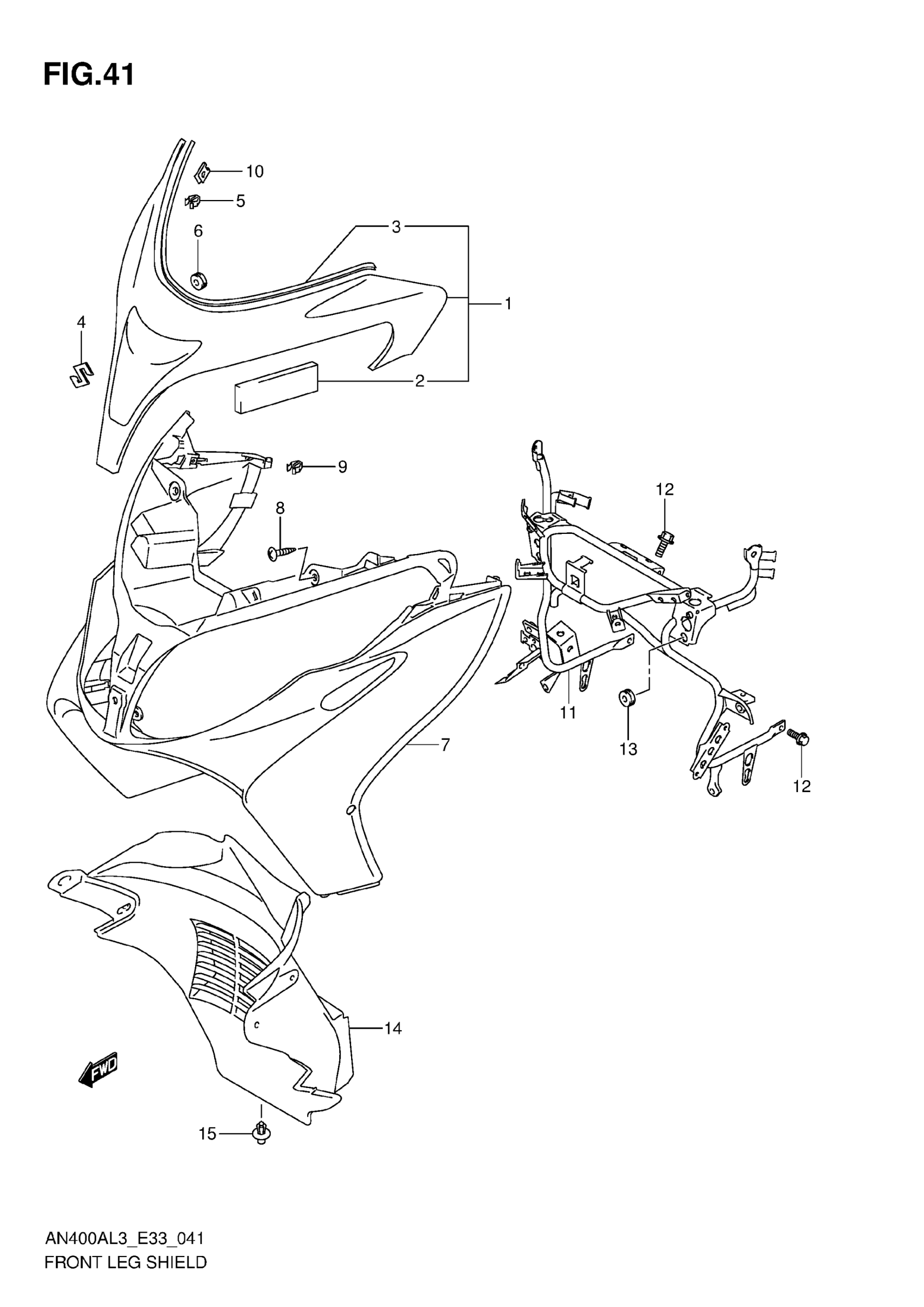

Suzuki AN400AL3 (2013) FRONT LEG SHIELD (AN400AL3 E33) Diagram

#

Description
Price

1

COVER, FRONT LEG (WHITE) | FOR YBD

48130-05H00-YBD

Unavailable

1

COVER, FRONT LEG (BLACK) | FOR YKV,AHW

48130-05H00-YKV

Unavailable

2

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$4.18

3

MOLDING, FR LEG SHIELD COVER

48132-05H00

Unavailable

4

EMBLEM, "S"

68641-14G00

$45.53

5

CLIP

09409-08326

$2.45

6

CUSHION

09320-06026

$4.45

7

SHIELD, LEG FRONT (GRAY) | FOR AHW

48111-05H00-PGZ

$867.75

7

SHIELD, LEG FRONT (WHITE) | FOR YBD

48111-05H00-YBD

Unavailable

7

SHIELD, LEG FRONT (BLACK) | FOR YKV

48111-05H00-YKV

Unavailable

8

SCREW (6X12)

09136-06004

$2.13

9

CLIP

09409-08326

$2.45

10

NUT

09148-05038

$1.97

11

BRACE, LEG SHIELD

48150-05HD0

$435.10

12

BOLT (8X12)

01550-0812A

$2.31

13

CUSHION

09320-08018

$2.80

14

SHIELD, LEG LOWER

48137-05H01

$184.73

15

CLIP (BLACK)

09409-08308-5ES

$1.97
