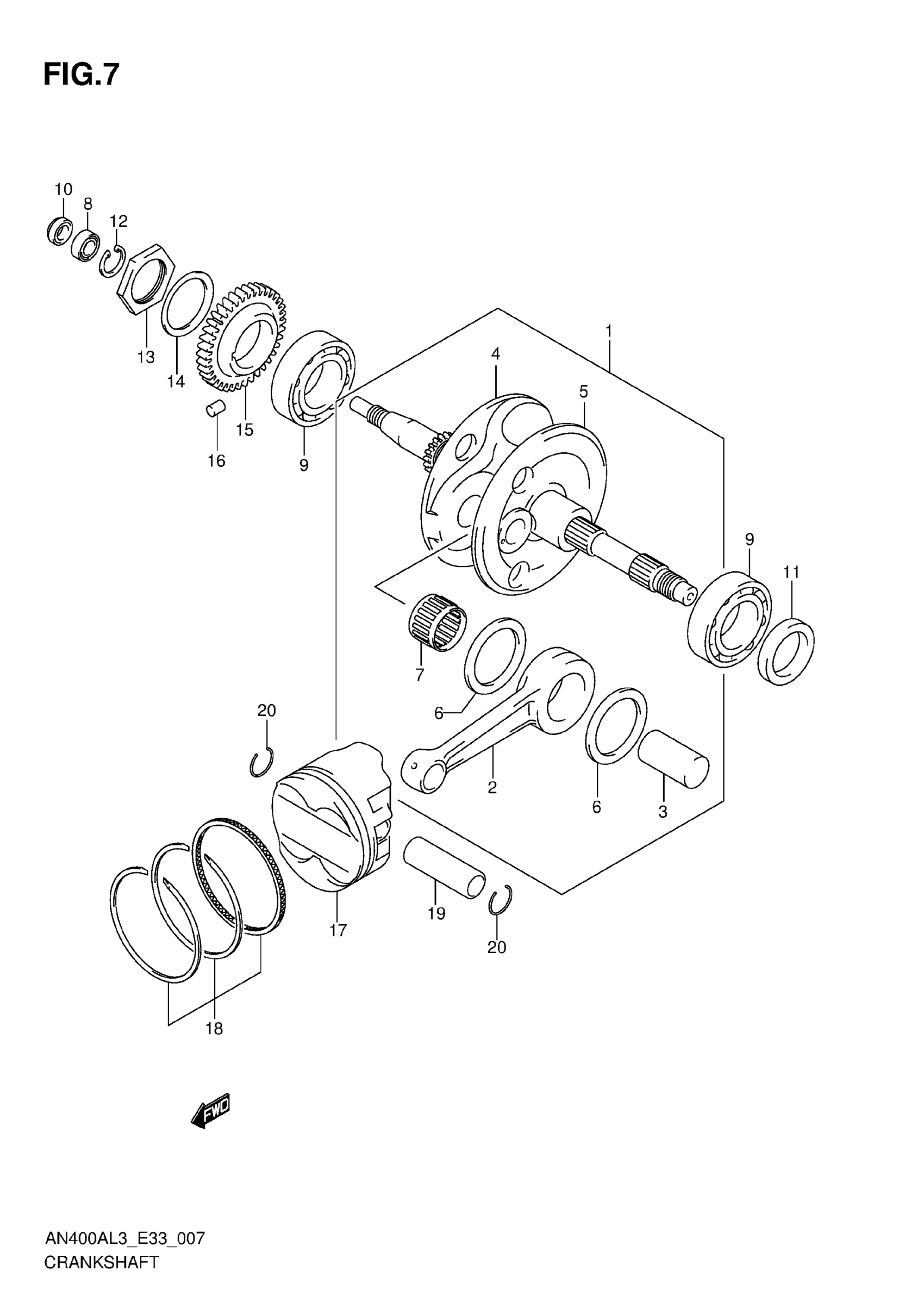

Suzuki AN400AL3 (2013) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-05H10

$860.15

2

CONNROD

12161-05H10

Unavailable

3

PIN, CRANK

12210-15F10

Unavailable

4

CRANKSHAFT, RH

12220-05H00

Unavailable

5

CRANKSHAFT, LH

12260-05H00

Unavailable

6

WASHER (35X55X1)

09160-35005

$6.55

7

BEARING (35X45X22)

09263-35034

Unavailable

8

BEARING (12X32X10)

09262-12016

Unavailable

9

BEARING (35X72X17)

09262-35038

$42.19

10

OIL SEAL (12X29X6)

09282-12011

$20.77

11

OIL SEAL (34X52X6)

09283-34011

$32.70

12

CIRCLIP

08331-41329

$2.43

13

NUT

12664-24B01

$17.40

14

WASHER (35.1X52X1.5)

09164-35002

Unavailable

15

GEAR, CRANK BALANCER DRIVE (NT:40)

12661-05H00

Unavailable

16

PIN (5X8)

09261-05005

$1.43

17

PISTON

12111-05H10-0F0

$160.45

18

RING SET, PISTON

12140-05H10

$134.85

19

PIN,PISTON

12151-05A00

$14.29

20

CIRCLIP

09381-20004

$1.64
