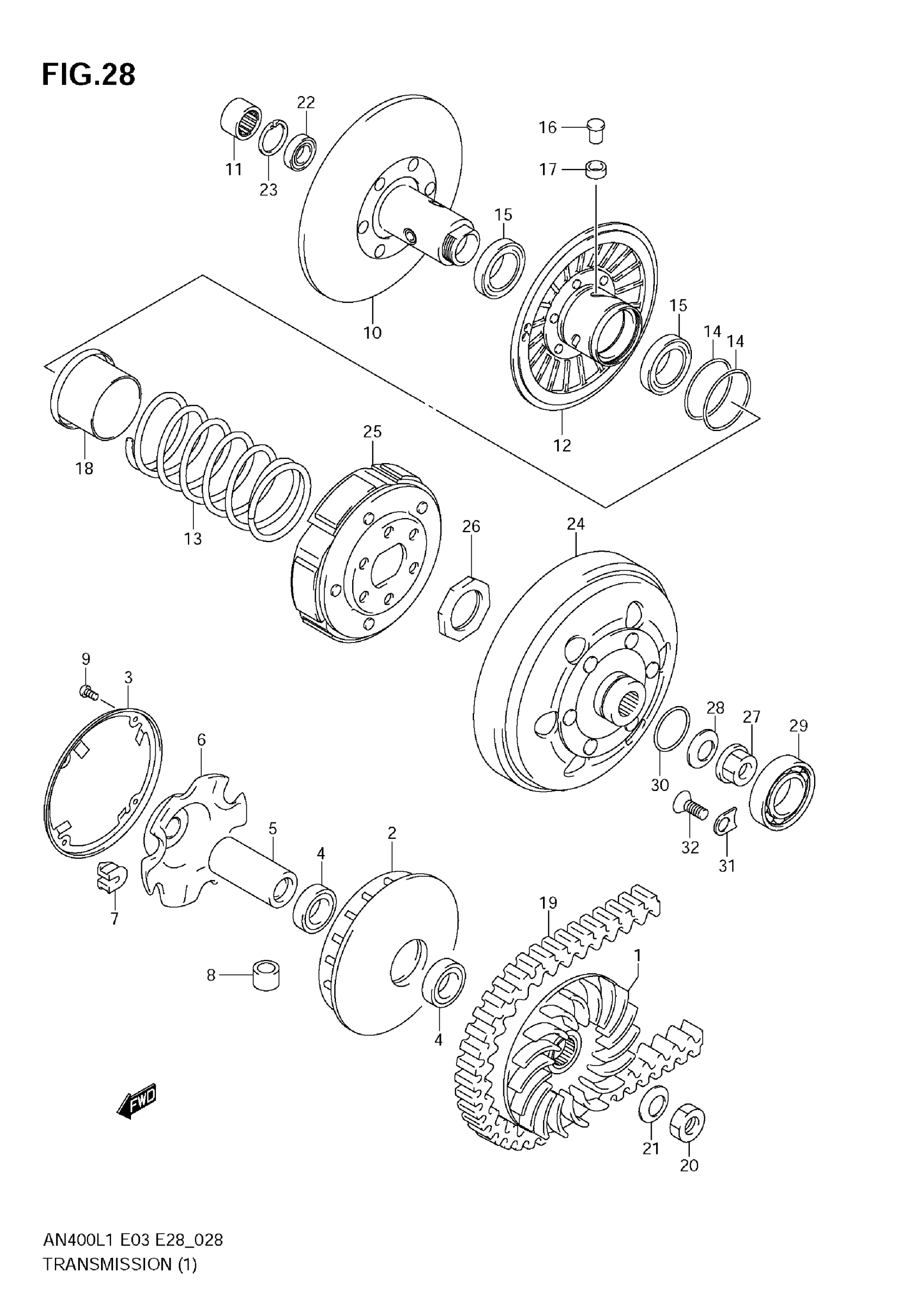

Suzuki AN400AL1 (2011) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE,FIXED DRIVE

21110-05H00

$95.06

2

FACE,MOVABLE DRIVE

21120-05H00

$107.39

3

COVER, MOVABLE

21122-05H00

$15.50

4

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

$10.35

5

SPACER,MOVABLE DRIVE

21125-05H00

$62.32

6

PLATE,MOVABLE DRIVE

21431-05H00

$59.37

7

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$6.91

8

ROLLER,MOVABLE DRIVEN

21650-15F40

$14.15

9

SCREW

02142-0410A

$1.25

10

FACE,FIXED DRIVEN

21210-05H00

$299.92

11

BEARING,FIXED DRIVEN RH This part replaces 21214-15F00.

21214-15F01

$25.56

12

FACE,MOVABLE DRIVEN

21240-05H10

$278.97

13

SPRING,MOVABLE DRIVEN

21243-15F40

$34.62

14

O-RING

21245-15F00

$4.94

15

SEAL, MOVABLE DRIVEN OIL

21247-31G00

$11.94

16

PIN,MOVABLE DRIVEN

21248-15F01

$4.68

17

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.29

18

SHEET,MOVABLE DRIVEN

21471-15F20

$19.52

19

V BELT, DRIVE This part replaces 27601-05H00.

27601-05H10

$145.69

20

NUT

09140-18501

$2.80

21

WASHER

09164-18001

$3.08

22

BEARING This part replaces 08123-69047.

08123-6904B

$18.87

23

CIRCLIP This part replaces 08331-4137A.

08331-41379

$3.12

24

HOUSING,CLUTCH This part replaces 21220-05H20.

21220-05H30

$291.72

25

CLUTCH ASSY,SHOE This part replaces 21501-05H30.

21501-05H41

$313.15

26

NUT,SHOE CLUTCH

21518-15F00

$12.35

27

NUT

09140-16002

$3.00

28

WASHER

09164-16002

$3.00

29

BEARING (35X62X14)

09262-35064

$77.40

30

O RING (D:2,ID:31)

09280-32008

$11.90

31

RETAINER, CLUTCH HOUSING

24742-44B00

$4.04

32

SCREW

02122-0616A

$1.46
