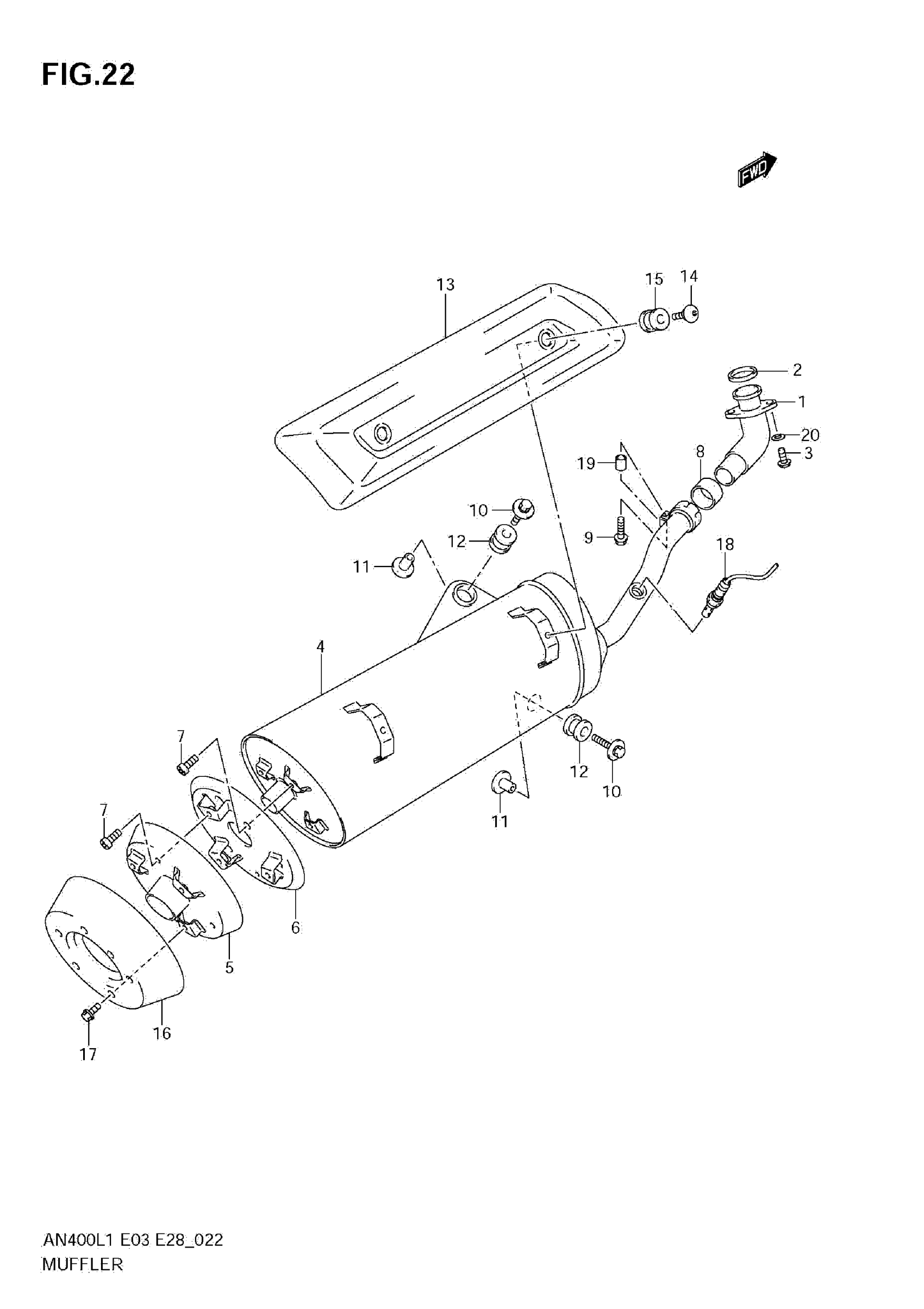

Suzuki AN400AL1 (2011) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-05H01

Unavailable

2

GASKET

14181-46E10

$6.61

3

BOLT (8X25)

09106-08151

$4.02

4

BODY, MUFFLER This part replaces 14310-05H23-H01.

14310-05H24-H01

$1,492.53

5

STAY,MUFFLER RR COVER This part replaces 14760-05H00.

14760-05H01

Unavailable

6

STAY, RR COVER NO.2 This part replaces 14770-05H00.

14770-05H01

Unavailable

7

BOLT (6X10)

09106-06076

$3.01

8

CONNECTOR,MUF JOINT

14771-05H01

$30.78

9

BOLT (8X35)

09103-08365

$3.58

10

BOLT (8X45)

09116-08134

$6.07

11

SPACER (8.6X12X24.2)

09180-08152

$5.26

12

CUSHION

09320-12048

$4.62

13

COVER, MUFFLER

14781-05H00

$174.43

14

SCREW (6X20)

09139-06126

$3.65

15

CUSHION

09320-08070

$12.93

16

COVER, MUFFLER RR

14790-05H00

$131.02

17

BOLT (6X15)

09106-06078

$3.67

18

SENSOR, OXYGEN

18213-15G00

$448.86

19

SPACER

14458-06H00

$7.95

20

WASHER

09164-08022

$3.25
