2009 Suzuki AN400AK9 Seat Support Bracket Diagram

← All diagrams

Find the part on the Seat Support Bracket diagram for your 2009 Suzuki AN400AK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

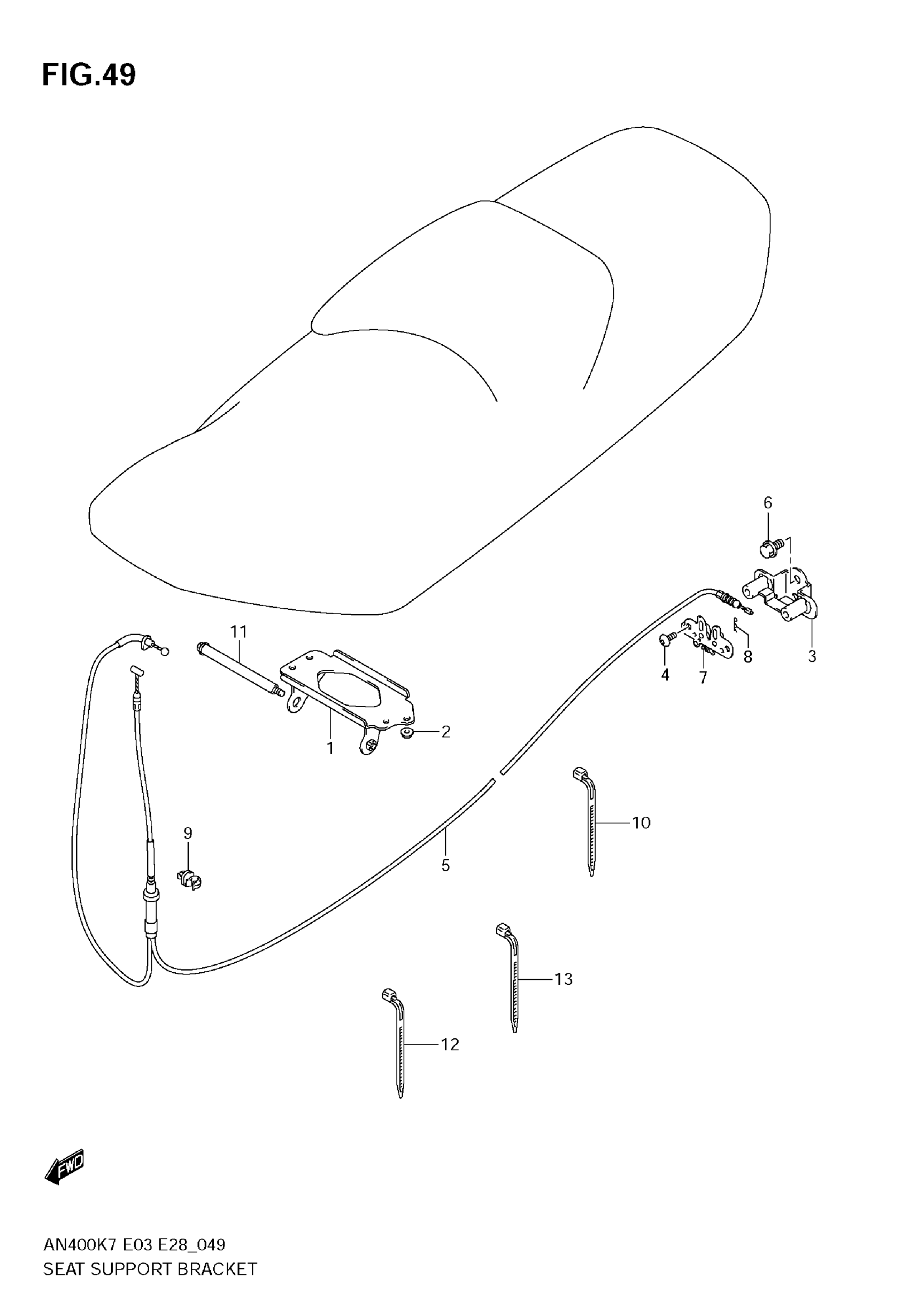

2009 Suzuki AN400AK9 Seat Support Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, SEAT HINGE

45240-05H00

1
Out of stock

2

NUT, SEAT BRACKET FRONT

08316-1006A

4
Out of stock

3

BRACKET, SEAT SUPPORT

45220-05H00

1
Out of stock

4

BOLT, SEAT SUPPORT

09139-06139

2
Out of stock

5

CABLE, SEAT LOCK This part replaces 45280-05H01.

45280-05H02

1
Out of stock

6

BOLT,SEAT HINGE BRKT

45215-05H00

1
Out of stock

7

LOCK ASSY, SEAT STRIKER This part replaces 45700-14FD1.

45700-14FD2

1
Out of stock

8

PIN, STRIKER SUPPORT BRKT

09385-05004

1
Out of stock

9

CLAMP, SEAT LOCK CABLE

09403-07331

2
Out of stock

10

CLAMP, SEAT LOCK CABLE

09407-18402

2
Out of stock

11

BOLT, SEAT LOCK BRKT

01550-1016A

1

$3.06

In stock

12

CLAMP, SEAT LOCK CABLE

09407-19401

2
Out of stock

13

CLAMP, SEAT LOCK CABLE

09407-14403

1
Out of stock
← Seat Side LEG Shield →
