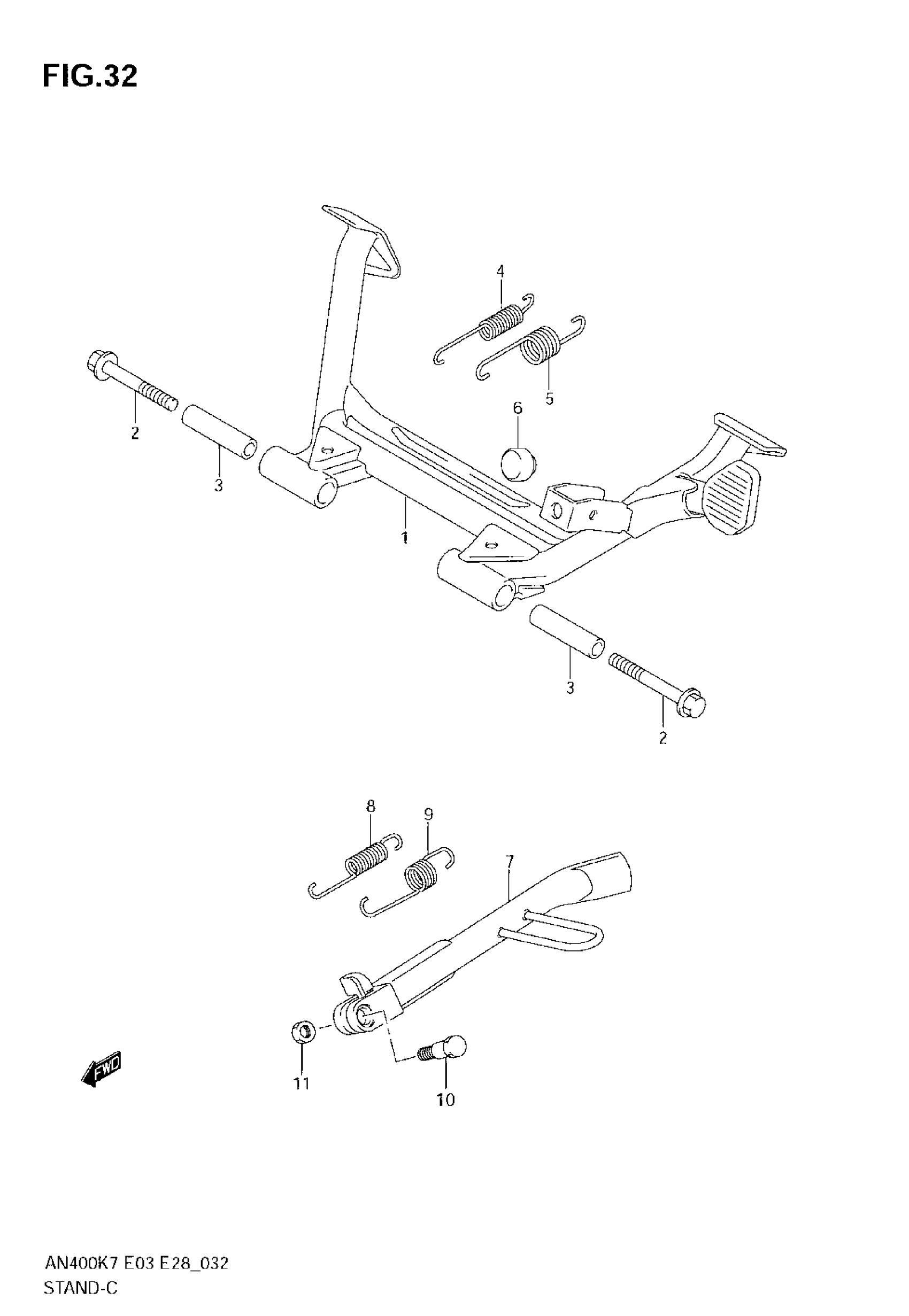

Suzuki AN400 (2008) STAND Diagram

#

Description
Price

1

STAND, CENTER | MODEL K7 This part replaces 42100-05H00.

42100-05H01

$298.40

1

STAND, CENTER | MODEL K8

42100-05H01

$298.40

2

BOLT

09103-10240

$5.75

3

SPACER,CENTER STAND PIVOT This part replaces 09180-10160.

09180-10165

$14.56

4

SPRING, INNER

09443-14069

$5.55

5

SPRING, OUTER

09443-22019

Unavailable

6

CUSHION

09321-10001

$2.69

7

STAND, PROP | MODEL K7 This part replaces 42310-05H00.

42310-05H01

Unavailable

7

STAND, PROP | MODEL K8

42310-05H01

Unavailable

8

SPRING, INNER

09443-14069

$5.55

9

SPRING, OUTER

09443-19012

$5.31

10

BOLT

09111-10027

$3.08

11

NUT

09159-10097

$5.10
