2008 Suzuki AN400 Rear LEG Shield Diagram

← All diagrams

Find the part on the Rear LEG Shield diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

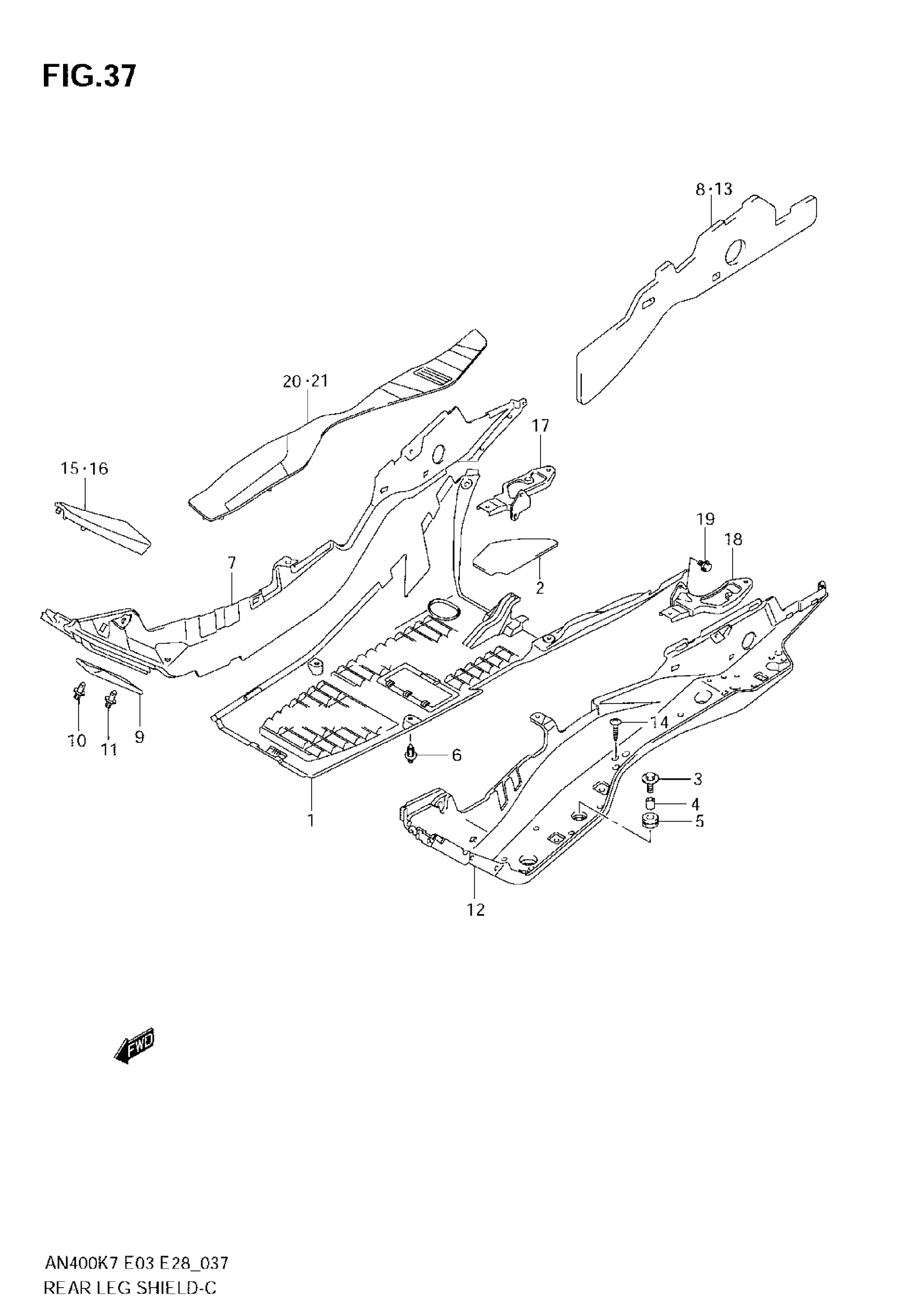

2008 Suzuki AN400 Rear LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, UNDER CENTER | MODEL K7 This part replaces 48138-05H00-291.

48138-05H02

1
Out of stock

1

COVER, UNDER CENTER | MODEL K8 This part replaces 48138-05H01.

48138-05H02

1
Out of stock

2

CUSHION

48183-05H00

1
Out of stock

3

BOLT

09116-06131

8
Out of stock

4

SPACER

09180-08189

8
Out of stock

5

CUSHION

09320-11020

8
Out of stock

6

CLIP This part replaces 09409-06322.

09409-06322-5PK

2
Out of stock

7

FOOT BOARD, RH (BLACK) This part replaces 48121-05H00-291.

48121-05H01-5PK

1
Out of stock

8

CUSHION, RH

48124-05H00

1
Out of stock

9

COVER, RH

48123-05H00

1
Out of stock

10

CLIP (BLACK)

09409-06314-5PK

1
Out of stock

11

CLIP (BLACK)

09409-08308-5ES

1
Out of stock

12

FOOT BOARD, LH (BLACK) This part replaces 48122-05H00-291.

48122-05H00-5PK

1
Out of stock

13

CUSHION, LH

48125-05H00

1
Out of stock

14

SCREW

03541-0516A

16
Out of stock

15

MAT,FLOOR FR RH This part replaces 48211-05H00-291.

48211-05HA0-291

1
Out of stock

16

MAT,FLOOR FR LH This part replaces 48221-05H00-291.

48221-05HA0-291

1
Out of stock

17

BRACKET, PILLION RH

43650-05H00

1
Out of stock

18

BRACKET, PILLION LH

43750-05H00

1
Out of stock

19

BOLT

01550-0612B

4
Out of stock

20

MAT,FLOOR RR,R This part replaces 48231-05H00-291.

48231-05HA0-291

1
Out of stock

21

MAT,FLOOR RR LH This part replaces 48241-05H00-291.

48241-05HA0-291

1
Out of stock
