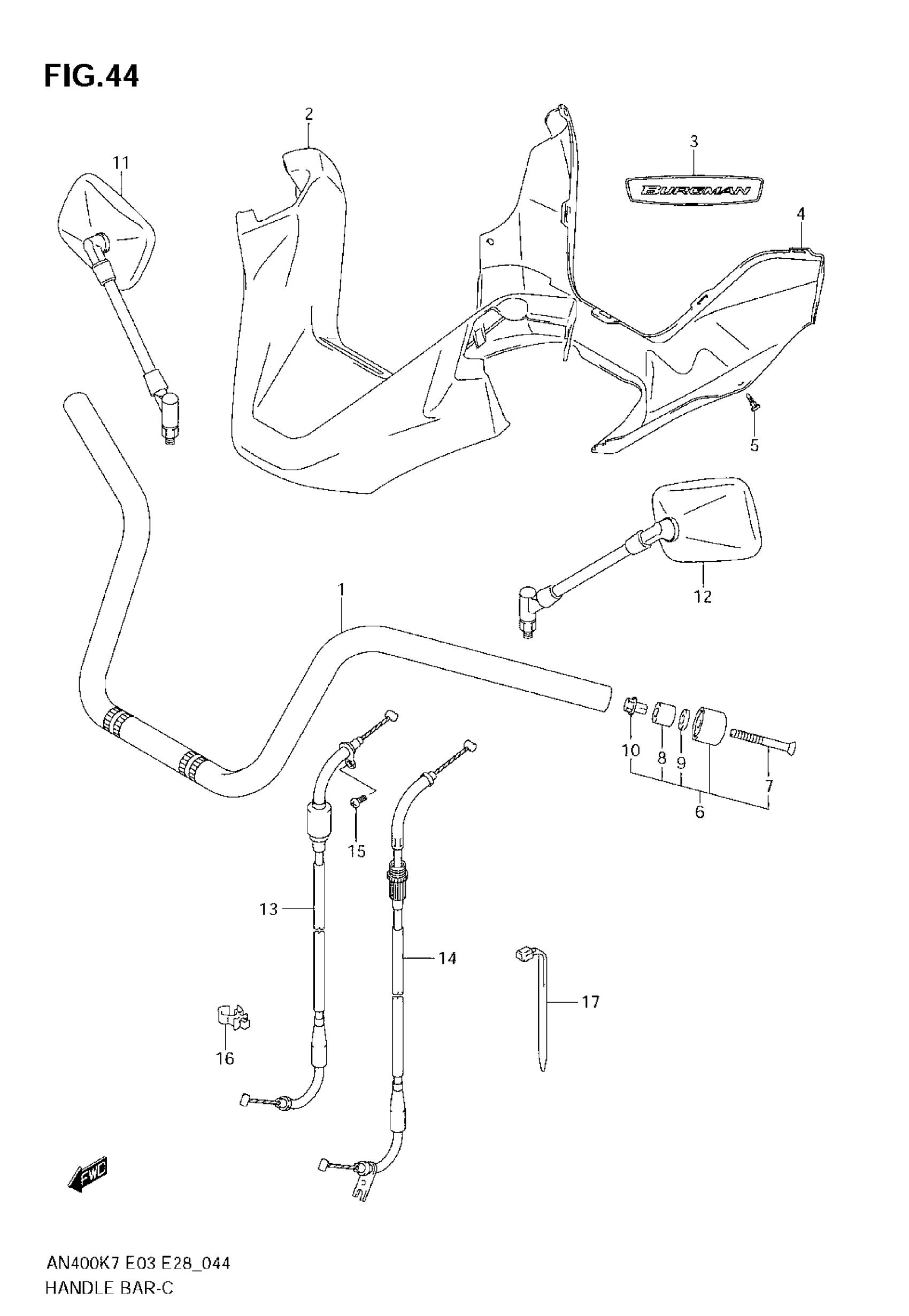

Suzuki AN400 (2008) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-05H00

$170.68

2

COVER, HANDLE FRONT (BLACK) | MODEL K7 This part replaces 56311-05H00-291.

56311-05H01-291

Unavailable

2

COVER, HANDLE FRONT (BLACK) | MODEL K8

56311-05H01-291

Unavailable

3

EMBLEM

68281-15F50

$44.60

4

COVER, HANDLE REAR (BLACK) This part replaces 56321-05H00-291.

56321-05H01-291

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

BALANCER SET,HN | Includes Item(s) 7 - 10 This part replaces 56200-16820.

56200-16823

$31.01

7

SCREW

02122-0660B

$2.80

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

9

WASHER

09160-06131

$2.53

10

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

11

MIRROR ASSY,RR This part replaces 56500-03FD0.

56500-03FD1

$183.53

12

MIRROR ASSY,REA This part replaces 56600-03FD0.

56600-03FD1

$203.08

13

CABLE ASSY, THROTTLE NO.1

58300-05H00

Unavailable

14

CABLE ASSY,THRO This part replaces 58300-05H10.

58300-05H11

$56.20

15

SCREW

09125-05073

$2.58

16

CLAMP

09403-19407

Unavailable

17

CLAMP

09407-19401

$3.32
