2006 Suzuki AN400 Side LEG Shield Diagram

← All diagrams

Find the part on the Side LEG Shield diagram for your 2006 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

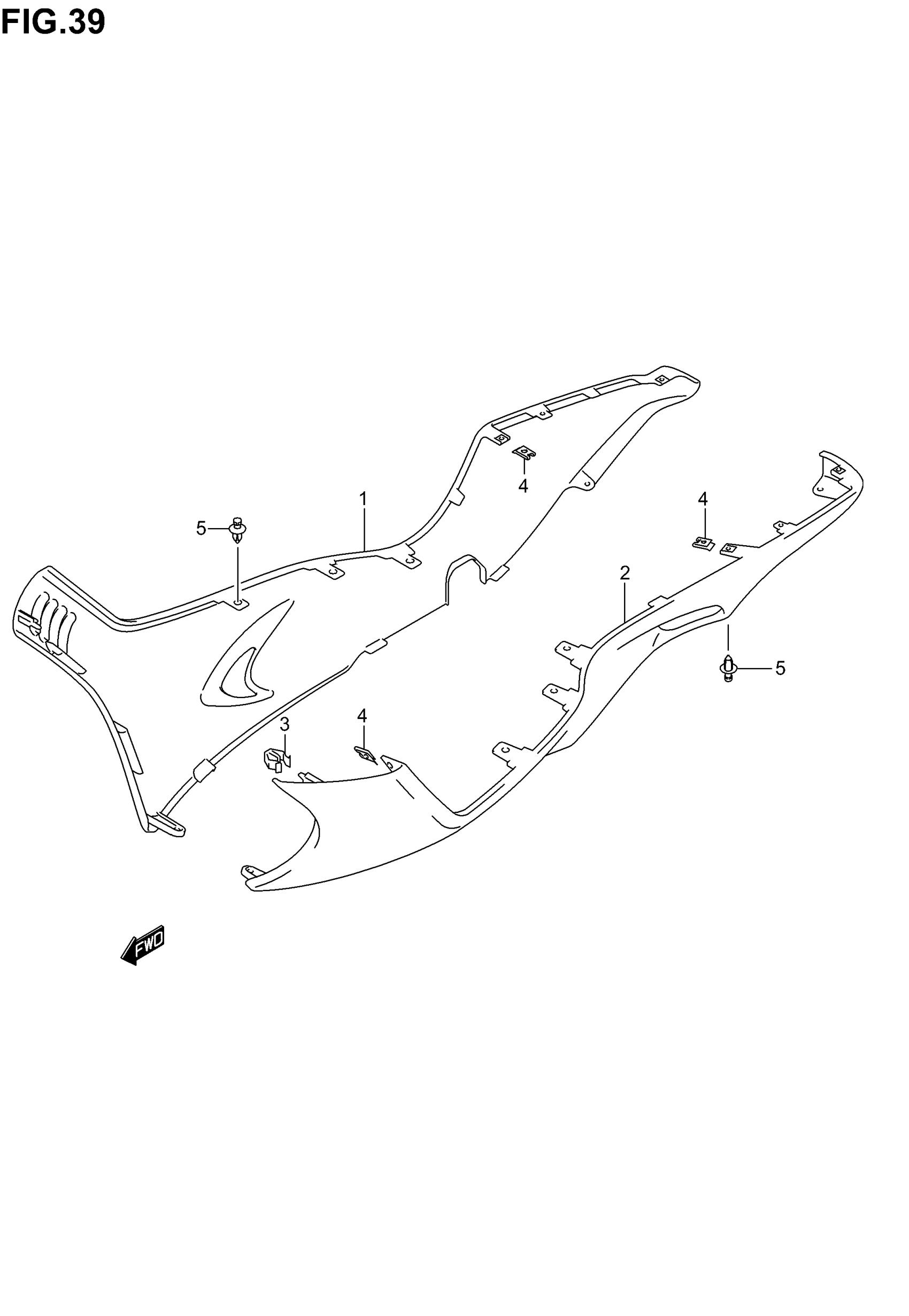

2006 Suzuki AN400 Side LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIELD, LEG SIDE RH (SILVER) | FOR YD8,KT8

48171-14G00-YD8

1
Out of stock

1

SHIELD, LEG SIDE RH (BLUE) | FOR Y7H

48171-14G00-Y7H

1
Out of stock

2

SHIELD, LEG SIDE LH (SILVER) | FOR YD8,KT8

48181-14G00-YD8

1
Out of stock

2

SHIELD, LEG SIDE LH (BLUE) | FOR Y7H

48181-14G00-Y7H

1
Out of stock

3

CLIP

09409-08326

2
Out of stock

4

NUT

09148-05038

6
Out of stock

5

CLIP (BLACK)

09409-08308-5ES

15
Out of stock
