2006 Suzuki AN400 Rear LEG Shield Diagram

← All diagrams

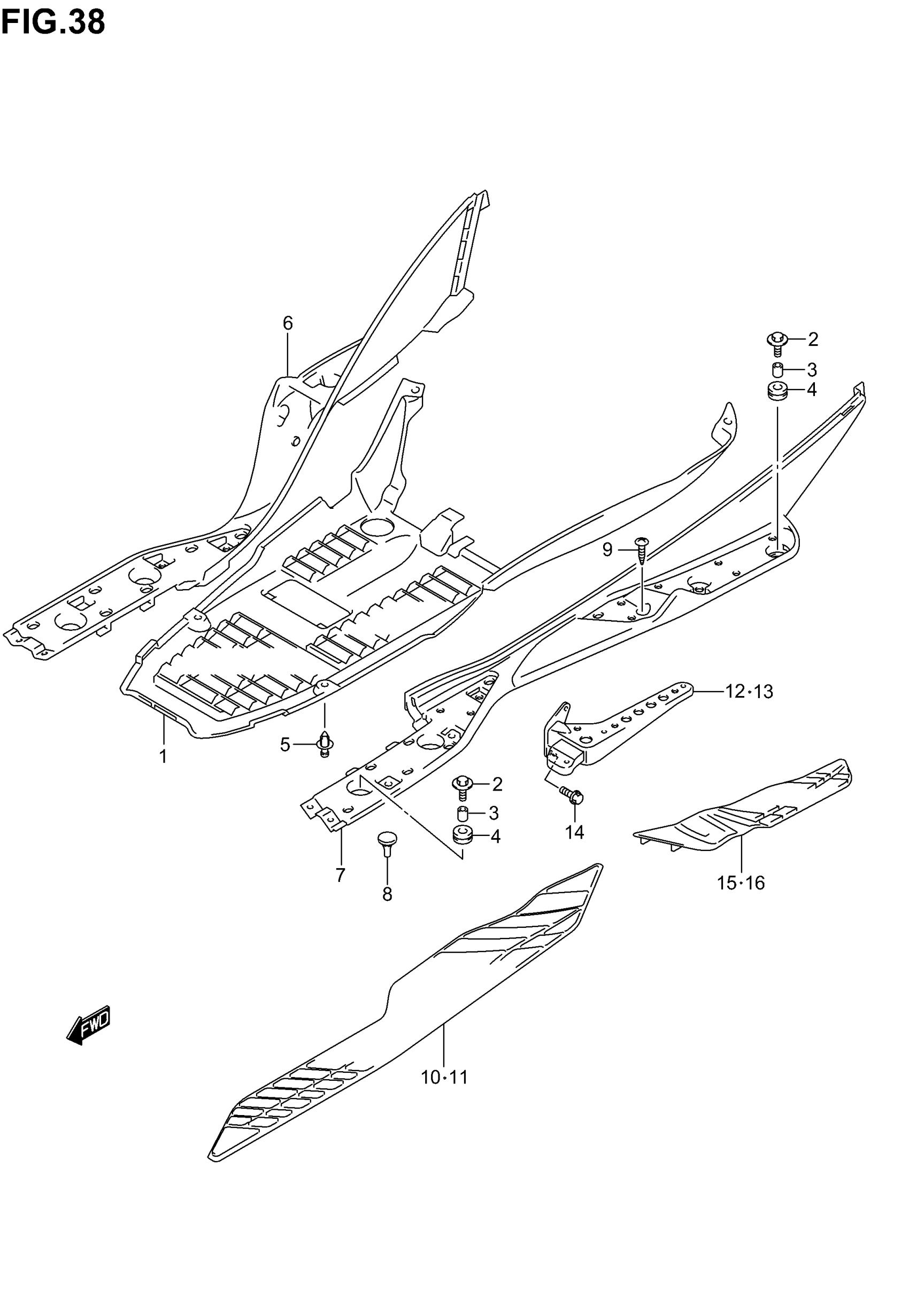

Find the part on the Rear LEG Shield diagram for your 2006 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki AN400 Rear LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, UNDER CENTER (BLACK) | MODEL K3/K4

48138-14G00-291

1
Out of stock

1

COVER, UNDER CENTER (GRAY) | MODEL K5/K6

48138-14G00-Y0J

1
Out of stock

2

BOLT

09116-06131

8
Out of stock

3

SPACER

09180-08189

8
Out of stock

4

CUSHION

09320-11020

8
Out of stock

5

CLIP (BLACK)

09409-06322-5PK

3
Out of stock

6

FOOTBOARD, RH (GRAY)

48121-14G00-Y0J

1
Out of stock

7

FOOTBOARD, LH (GRAY)

48122-14G00-Y0J

1
Out of stock

8

CUSHION

09321-06026

2
Out of stock

9

SCREW This part replaces 03541-05163.

03541-0516A

4
Out of stock

10

MAT, FRONT RH (BLACK)

48211-14G00-291

1
Out of stock

11

MAT, FRONT LH (BLACK)

48221-14G00-291

1
Out of stock

12

BRACKET, PILLION RH

43650-14G01

1
Out of stock

13

BRACKET, PILLION LH

43750-14G01

1
Out of stock

14

BOLT This part replaces 01550-06163.

01550-0616A

4
Out of stock

15

MAT, REAR RH (BLACK)

48231-14G00-291

1
Out of stock

16

MAT, REAR LH (BLACK)

48241-14G00-291

1
Out of stock
