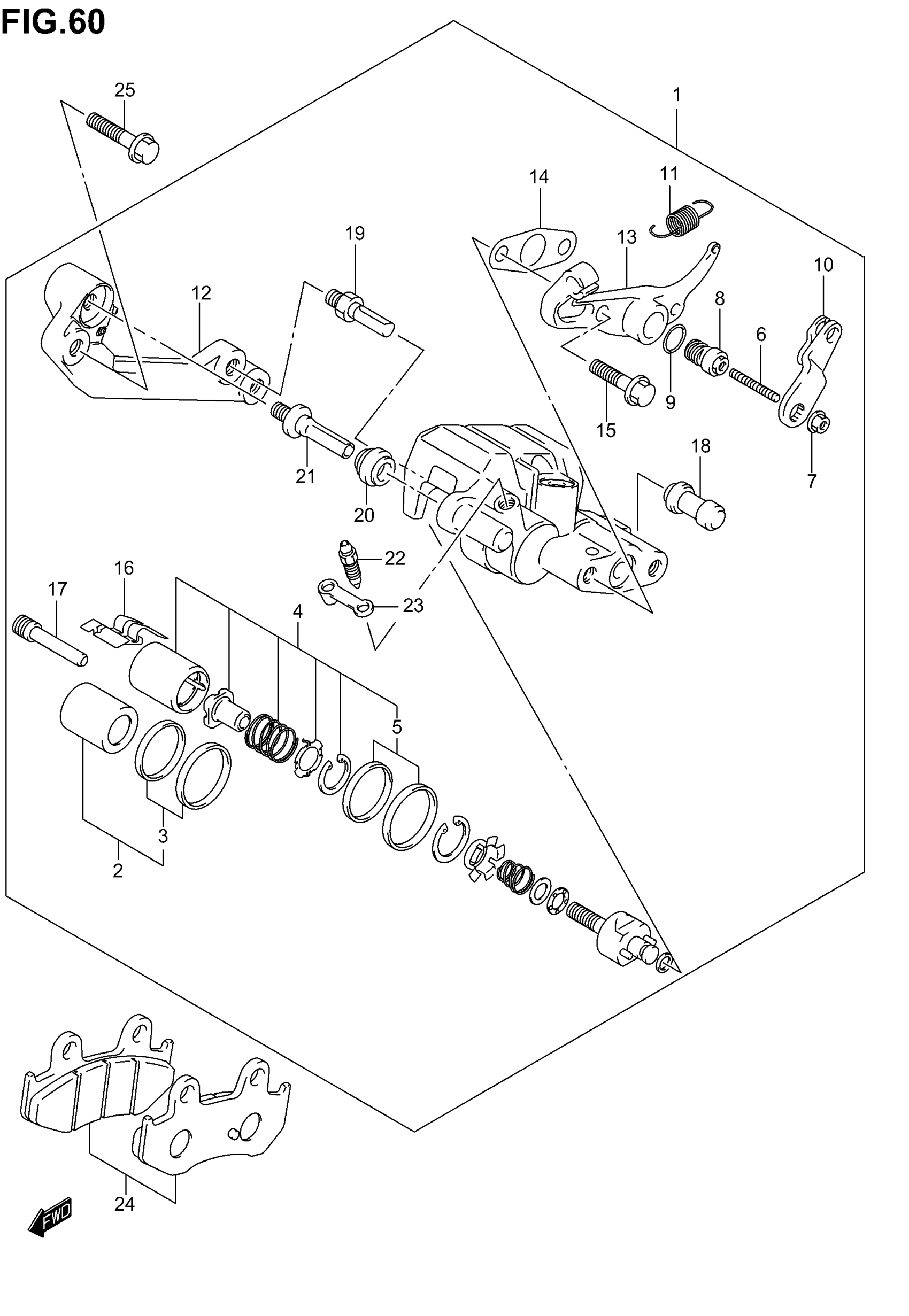

Suzuki AN400 (2006) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RE | Includes Item(s) 2 - 23 This part replaces 69100-14F60-999.

69100-14F61-999

$729.22

2

PISTON SET

69100-14820

$38.97

3

SEAL SET, PISTON

69100-21840

$15.35

4

PISTON SET

69100-14870

$43.68

5

SEAL SET, PISTON

69100-21840

$15.35

6

BOLT

69127-14F40

Unavailable

7

NUT

69123-14F40

$7.40

8

SHAFT

69124-14F40

Unavailable

9

O RING

69122-14F40

Unavailable

10

ARM

69125-14F50

Unavailable

11

SPRING, RETURN

69128-14F00

$7.12

12

BRACKET

69150-14F00

Unavailable

13

PARKING

69120-14F40

Unavailable

14

PACKING

69126-14F40

$6.60

15

BOLT (8X25)

69121-14F00

Unavailable

16

SPRING, PAD

69115-31D10

$18.60

17

PIN, HANGER

59345-13E00

$13.13

18

BOOT

59386-13A00

$7.28

19

BOLT

59382-27C30

$8.54

20

BOOT

59303-14500

$5.06

21

PIN

59305-27C00

$26.52

22

BLEEDER

59121-10G00

$16.32

23

CAP, BLEEDER

59122-01A00

$3.97

24

PAD SET

69100-14890

$67.32

25

BOLT

09103-08365

$3.58
