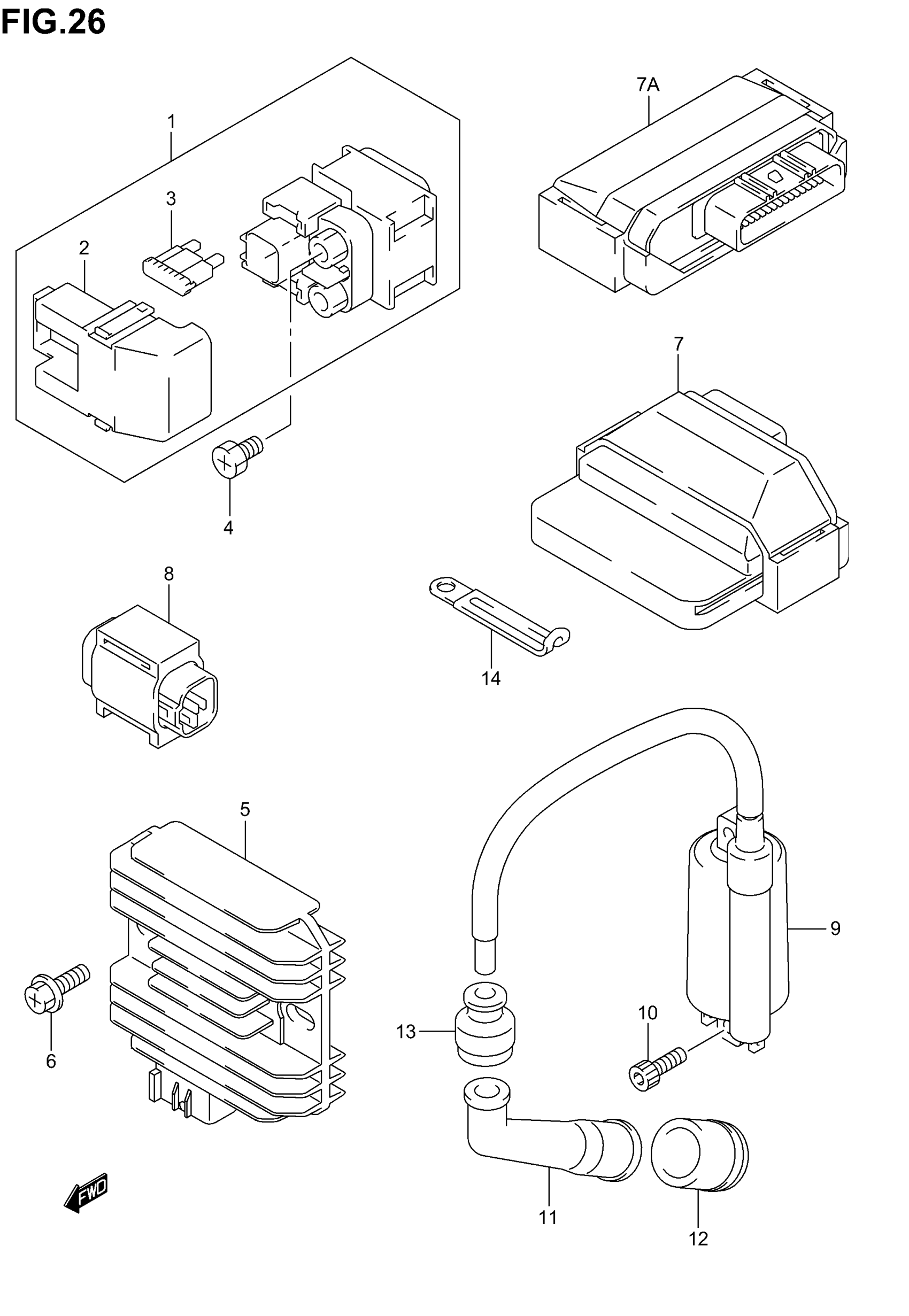

Suzuki AN400 (2006) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$61.62

COVER

31861-47E00

$18.23

FUSE (30A)

09481-30101

$2.28

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY This part replaces 32800-14G00.

32800-20H00

$354.87

BOLT This part replaces 02162-06203.

02162-0620C

$1.73

CONTROL UNIT, FI | MODEL K3/K4

32920-15G10

Unavailable

CONTROL UNIT, FI | MODEL K5/K6

32920-15GB0

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

COIL ASSY, IGNITION

33410-14F00

Unavailable

BOLT This part replaces 07130-05203.

07130-0520B

$3.18

CAP ASSY, SPARK PLUG

33510-45010

$23.52

SEAL, SPARK PLUG

33541-44D00

$4.85

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
