Description

Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-15F00

Unavailable

2

CONNROD

12161-15F00

Unavailable

3

PIN, CRANK

12210-15F00

Unavailable

4

BEARING, 35X45X22

09263-35034

Unavailable

5

CRANKSHAFT, R

12221-15F00

Unavailable

6

CRANKSHAFT, L

12260-15F01

Unavailable

7

WASHER, 35X55X1.0

09160-35005

$6.55

8

BEARING, 12X32X10

09262-12016

Unavailable

9

BEARING, 35X72X17

09262-35038

$42.19

10

OIL SEAL, 12X29X6

09282-12011

$20.77

11

OIL SEAL, 34X52X6

09283-34011

$32.70

12

GEAR, CRANK BALANCER DRIVE

12661-14F00

Unavailable

13

PIN, 5X8

09261-05005

$1.43

14

NUT, FLYWHEEL

12664-24B01

$17.40

15

WASHER

09164-35002

Unavailable

16

CIRCLIP This part replaces 08331-41326.

08331-41329

$2.43

17

PISTON

12111-15F00-0F0

$132.30

18

RING SET, PISTON

12140-15F00

$78.13

19

PIN,PISTON

12151-05A00

$14.29

20

CIRCLIP

09381-20004

$1.64

21

PISTON SET, OS:0.5 | OPT

12100-15F00-050

$222.28

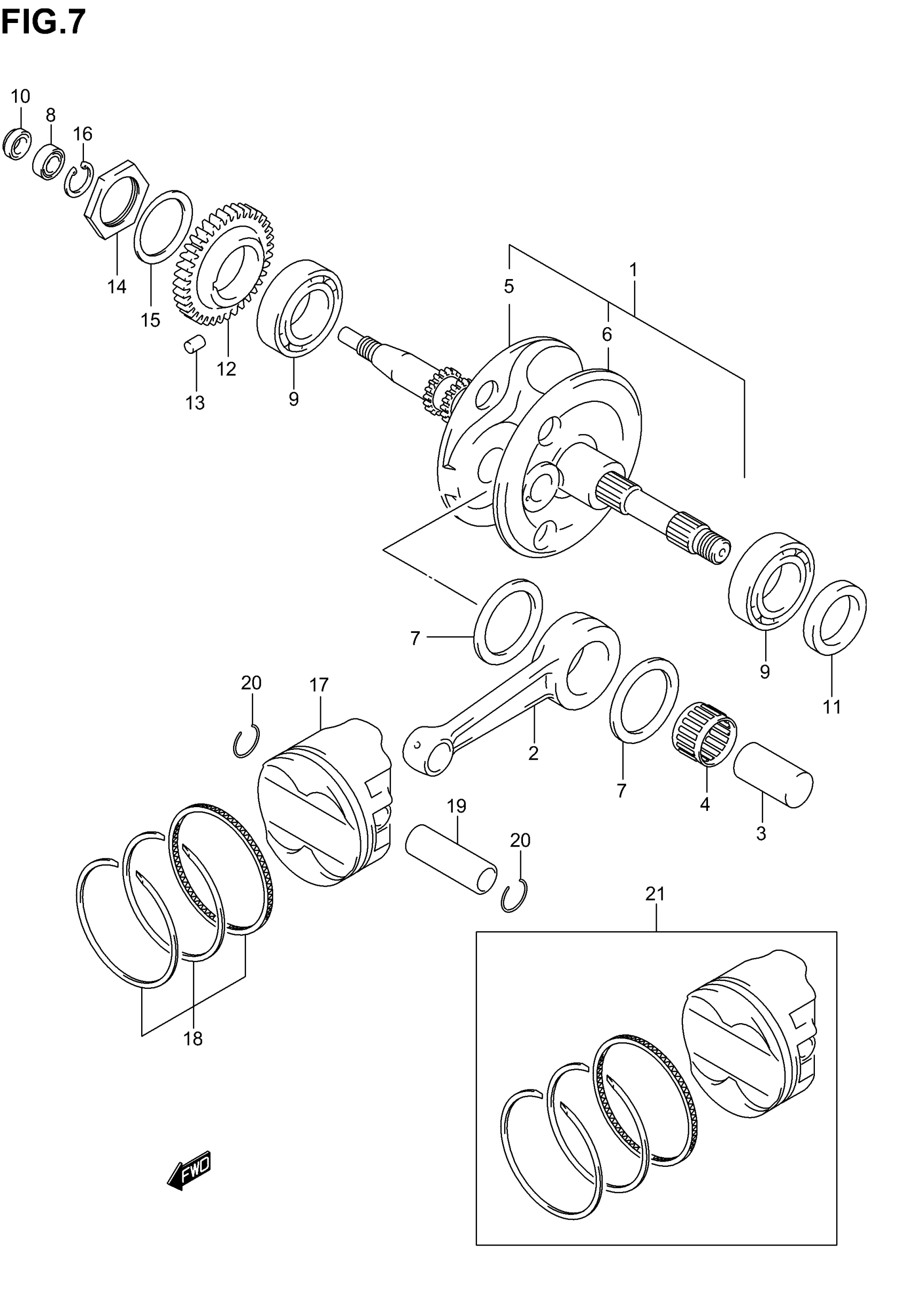

Suzuki AN400 (2006) CRANKSHAFT Diagram

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

CONNROD

PIN, CRANK

BEARING, 35X45X22

CRANKSHAFT, R

CRANKSHAFT, L

WASHER, 35X55X1.0

BEARING, 12X32X10

BEARING, 35X72X17

OIL SEAL, 12X29X6

OIL SEAL, 34X52X6

GEAR, CRANK BALANCER DRIVE

PIN, 5X8

NUT, FLYWHEEL

WASHER

CIRCLIP This part replaces 08331-41326.

PISTON

RING SET, PISTON

PIN,PISTON

CIRCLIP

PISTON SET, OS:0.5 | OPT
