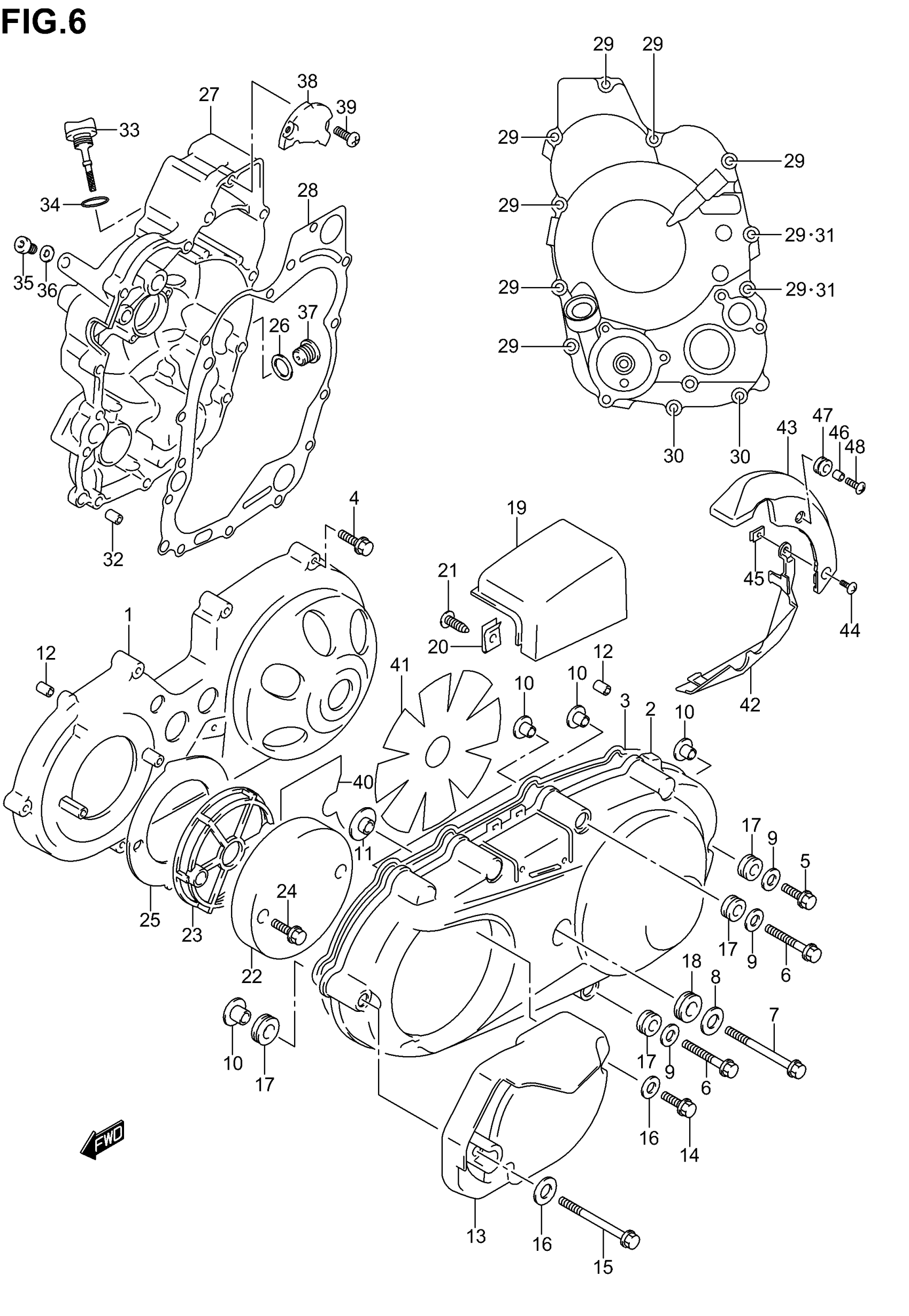

Suzuki AN400 (2006) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH INNER

11341-15F00

Unavailable

2

COVER, CLUTCH OUTER | MODEL K3/K4 AN400K5/K6

11370-15F01

Unavailable

2

COVER, CLUTCH OUTER | AN400SK5/SK6

11371-15G00

Unavailable

3

GASKET, CLUTCH COV OUTER

11484-14F00

$36.42

4

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

5

BOLT

09103-06212

$2.53

6

BOLT

09103-06224

$2.68

7

BOLT

09103-06257

$2.88

8

WASHER | MODEL K3/K4/K5

09160-06134

$1.89

8

WASHER | MODEL K6

09169-06016

$1.50

9

WASHER (6.5X18X1.0)

09160-06028

$1.43

10

WASHER

09169-06062

$2.50

11

SPACER

09180-08181

Unavailable

12

PIN

04211-11169

$1.77

13

DUCT, BELT COOLING

11381-15G00

Unavailable

14

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

15

BOLT This part replaces 01547-06653.

01547-0665B

$2.92

16

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

17

CUSHION

09320-09016

$1.97

18

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

19

DUCT, CLUTCH OUTER COVER

11372-15F00

Unavailable

20

NUT

09148-05038

$1.97

21

SCREW, FRONT This part replaces 03242-05103.

03241-0510A

$1.32

22

FILTER, BELT COOLING

11388-15F10

$28.03

23

HOLDER, BELT COOLING FILTER

11389-15F00

$20.53

24

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

25

CUSHION, BELT COOLING DUCT

11485-14F00

$11.00

26

GASKET 16X22X2.0

09168-16002

$1.89

27

COVER, MAGNETO

11351-14F01

Unavailable

28

GASKET, MAGNETO COVER

11483-14F00

$22.07

29

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

30

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

31

GASKET, 5.8X1.X1.2

09168-06023

$2.01

32

PIN

04211-09149

$1.64

33

GAUGE,OIL LEVEL

11971-14F00

$11.20

34

O RING (D:3.1,ID:6.8)

09280-17003

$1.64

35

PLUG, OIL GALLERY

09248-10010

$3.82

36

GASKET, 10X14X3.6

09168-10002

$1.96

37

PLUG, 16X8

09248-16012

$4.19

38

SEPARATOR, OIL

11352-15F10

Unavailable

39

SCREW | MODEL K3/K4/K5

09125-06086

$3.00

39

SCREW | MODEL K6

09125-06110

$2.13

40

CUSHION, CLUTCH OUTER COVER NO.1

11486-15F01

Unavailable

41

CUSHION, CLUTCH OUTER COVER NO.2

11487-15F00

Unavailable

42

COVER, CLUTCH OUTER NO.2 | AN400SK5/SK6

11374-15G00

Unavailable

43

COVER, REAR CALIPER | AN400SK5/SK6

11373-15G01

Unavailable

44

SCREW, 5X16 | AN400SK5/SK6

09132-05041

$0.78

45

NUT | AN400SK5/SK6

09148-05019

$1.88

46

SPACER, 6.5X9X9 | AN400SK5/SK6

09180-06263

$1.68

47

CUSHION | AN400SK5/SK6

09320-09016

$1.97

48

SCREW | AN400SK5/SK6 This part replaces 02142-06203.

02142-0620A

$1.38
