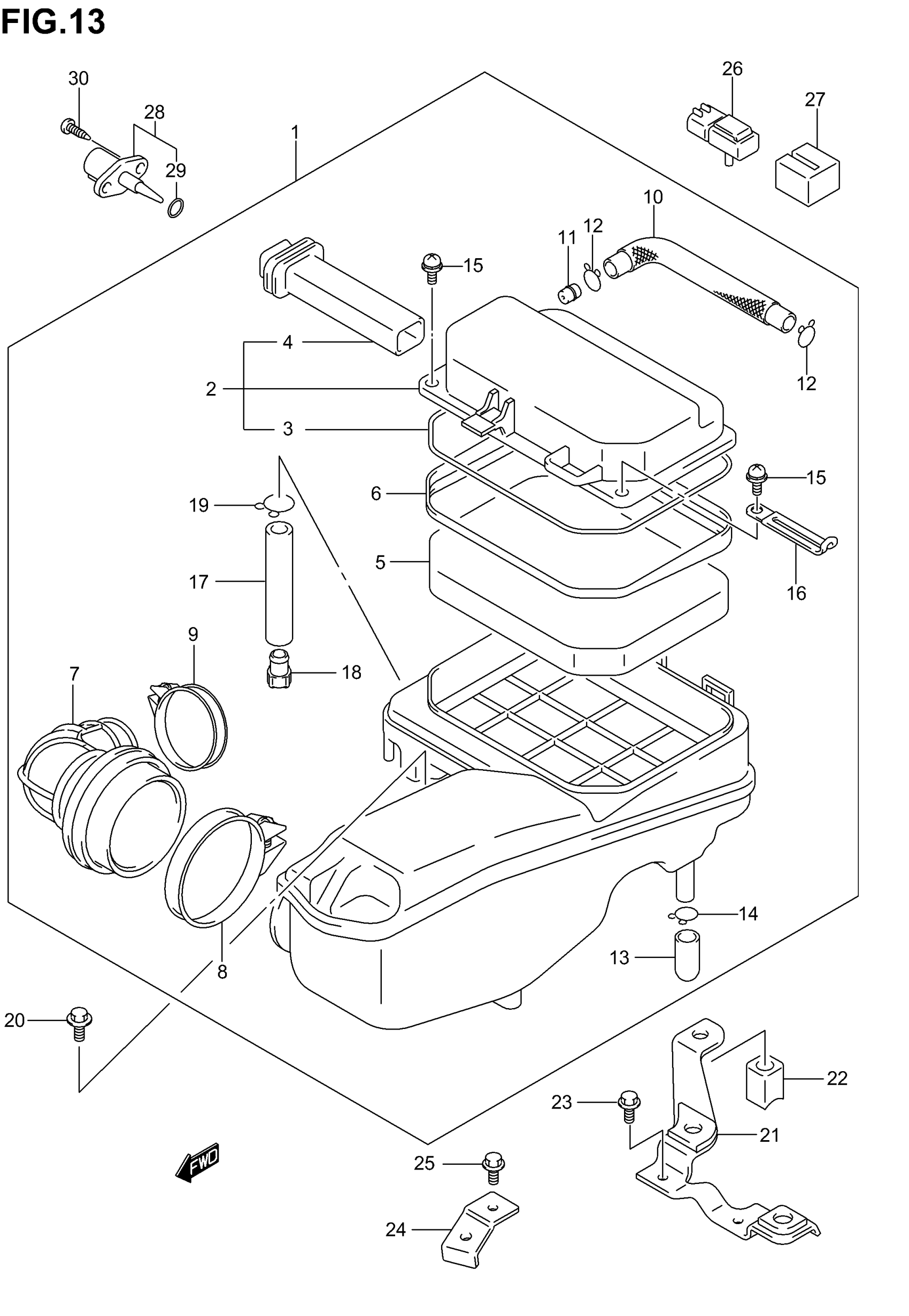

Suzuki AN400 (2006) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 19 This part replaces 13700-15G00.

13700-15G01

$319.08

2

CAP, AIR CLEANER

13740-15G00

Unavailable

3

GASKET

13746-14F00

$6.02

4

TUBE, INLET

13891-15G00

Unavailable

5

FILTER, AIR CLEANER

13780-14F01

$29.67

6

HOLDER, FILTER

13791-15F00

$20.05

7

TUBE,OUTLET This part replaces 13881-14G00.

13881-14G01

$36.52

8

CLAMP

09402-72203

$6.35

9

CLAMP

09402-52208

$4.84

10

TUBE,BREATHER This part replaces 13850-14G00.

13850-14G01

Unavailable

11

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.97

12

CLIP

09401-14301

$2.17

13

.PLUG

13859-41B10

$6.94

14

CLIP

09401-14301

$2.17

15

SCREW This part replaces 02112-75203.

02112-7520A

$3.17

16

CLAMP, L:45

09404-06429

$1.82

17

TUBE, DRAIN

13872-14D00

$21.62

18

PLUG

13877-00190

$6.00

19

CLIP

09401-14301

$2.17

20

BOLT

09116-06093

$2.65

21

BRACKET ASSY, AIR CLNR REAR

13760-15F00

Unavailable

22

CUSHION, AIR CLNR BRACKET

13779-15F00

Unavailable

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

24

BRACKET, AIR CLEANER FR

13760-14F00

Unavailable

25

BOLT, 6X16

09116-06168

$2.50

26

SENSOR, AIR PRESSURE

15620-10G00

$250.95

27

HOLDER, AIR PRESSURE

15625-10G00

$14.00

28

SENSOR, AIR TEMP | Includes Item(s) 29

13650-14G10

$47.66

29

O RING

13655-14G10

$11.18

30

SCREW This part replaces 03512-05163.

03511-0516A

$1.88
